Product Details:
|
| Screen Interface: | LVDS, HD,EDP | Edp Screen Interface: | Support Resolution 1920*1080P |
|---|---|---|---|
| Serial Ports: | 3 Groups Of Serial Ports | Wifi: | 2.4G Or 2.4G & 5G,optional |
| Ports: | Ethernet, 4G, Wireless Wifi, BT, HD, Audio, SIM, USB, UART, RS232,etc | Screen Voltage: | Support 3.3V/5V/12V Optional |
| Expansion: | Micro SD Card Slot | Storage Temperature Range: | -20°C To 80°C |
| 4G LTE: | Built-in Mini PCIE Connector | RAM: | 2GB / 4GB Optional |
| ROM: | 16GB/ 32GB / 64GB Optional |

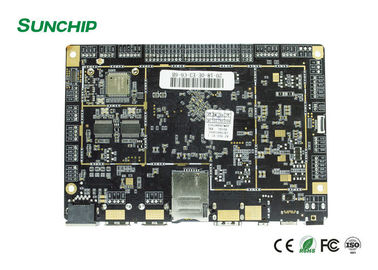

This Android board comes equipped with LVDS output, making it a versatile option for a variety of applications.
Some notable features of this board include:
Our product is equipped with high integration features, including USB, LVDS, Ethernet, HD, and WIFI, making it an all-in-one solution. This simplifies the integral machine design and also includes a TF card slot.
Our product is compatible with Android 7.1, 8.0, and 9.0,10, providing a smooth and user-friendly operation system. It has a 2G+16G, 4+32GB, storage capacity.
Our product supports high resolution, with the ability to decode 1080P/H.265(4K2K) videos. It also offers various LVDS output LCD display screens.
To enhance the audio experience, our product comes with an audio amplifier that supports dual channel amplifier with 3W*2 output.
We understand the diverse needs of our customers, which is why our product supports various interfaces such as USB, Serial Port, and ADC. It is suitable for mainstream AD machines in the market.
Our product offers a full range of functions to cater to different display needs. It supports display screens in both landscape and portrait modes, video split screen, rolling word screen, on/off timing, and data transfer through USB.
We value user convenience, and our product comes with a humanization software for playlist making and advertising display management and control. It also has an advertising display record feature, making it easy to check the AD display status. It is widely used in gaming machines, industrial displays, medical equipment, transportation displays, banking ATMs, touch solutions, kiosks, digital signage, industrial self-service automation, and more.
| CPU | Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764 |
| Main frequency | 1.8 GHz |
| Deposit | LPDDR3 2G/4G Optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G etc. optional |
|
Display interface
|
LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-82" display |
| EDP interface Maximum resolution 4K | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Touch screen | Support I2C touch screen, USB multi-point infrared touch frame, resistance, capacitive touch screen. |
|
The internet
|
With RJ45 interface, support 10/100M Ethernet. |
| Equipped with wifi &BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 | |
| With 4G module, support 4G network | |
| Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function (optional) |
| Real Time Clock | External real-time clock power supply battery |
|
Interface device
|
Support MIPI camera |
| Support HDMI output | |
| 5 USB HOST (support usb camera@500W usb printer, U disk, mouse, keyboard and standard usb peripherals) | |
| 3 groups of serial ports (1 group of UART; 2 groups of standard UART or optional RS232). Support external serial devices (NFC module, printer, card reader, etc.) | |
| 3 IO detection ports | |
| TF card | |
| D class large built-in speaker, 5W*2 8R | |
| Support microphone | |
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format |
| Video | Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback |
| Image | Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
| Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V 3A |
Basic software specifications:
| operating system | Android 5.1 and above |
| Basic software functions | Web browsing, web chat, email, e-book, resource manager |
| Sound effect mode | Clock, alarm clock, calculator, recording |
| language support | multi-lingual |
| recording | Support MP3, WMA format recording 3gpp, arm and other formats, according to the recording APK is different, the format is different, now the system comes with the arm format |
|
tool
|
Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather + clock | |
| Recording | |
| Word processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| schedule | Calendar |
| Input | Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
|
The internet
|
Browser -Chrome Lite |
| Gmail | |
| System Management | APK installer |
| Original ecological Android system, open root permission, can carry out product customization development | |
| Real-time remote monitoring, self-recovery from system crashes, 7*24 hours unattended | |
| System setting | |
| Global time | |
| Support OTA remote upgrade |
The following are some examples of how our innovative technology can be applied:
Our technology is versatile and can be used in a variety of industries and settings, from retail and advertising to self-service and interactive displays. With the capabilities of our products, businesses can enhance their customer experience, streamline operations, and create a more efficient and engaging environment.
SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
Sunchip is a national high-tech enterprise with various patents. Our factory runs under the ISO 9001 & ISO 14001 certification. Our products fully completely with CE, RoHS and FCC certifications.
Sunchip has become the ODM / OEM partner of a number of world-class companies. Our products have been exported to over eighty worldwide countries.We do the best we can consistently to provide excellent quality products and one-stop services for all customers.
We are looking forward to cooperating, developing and growing with you sincerely.
We mainly manufacture
1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android media player box for digital signage advertising: RK3399, RK3288, RK3328.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Stretched lcd Display signage, support ODM.
5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
6, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
8, Embedded touch desk: such as 32inch.
9, Face recognition temperature detection terminal machine: such as 8inch.
[you can also tell us your requirements, so that we advise you a matched solution]
