RK3399 Embedded System Board Durable With 4G WIFI Ethernet POE Optional

RK3399 Embedded System Board Durable With 4G WIFI Ethernet POE Optional
RK3399 Embedded System Board Durable With 4G WIFI Ethernet POE Optional RK3399 Embedded System Board Durable With 4G WIFI Ethernet POE Optional

Large Image :  RK3399 Embedded System Board Durable With 4G WIFI Ethernet POE Optional

Product Details:
Place of Origin: SHENZHEN, CHINA
Brand Name: ADW
Certification: CE, ROHS, FCC, ISO9001
Model Number: AD-B03
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: $70-$120
Packaging Details: 1 piece/bubble bag; large orders/carton;
Delivery Time: In 3 days if in stock; In 30 days if out of stock;
Payment Terms: T/T
Supply Ability: 10,000 PCS/Month

RK3399 Embedded System Board Durable With 4G WIFI Ethernet POE Optional

Description
CPU: RK3399 Six Core Dual Core Cortex A72+quad Core Cortex A53 GPU: Mali-T860 MP4
DDR: LPDDR4 4G EMMC: 16G/32G/64G/128G Optional
WIFI: 802.11a / B / G / N / Ac Protocol Ethernet: 10/100/1000 Ethernet
4G LTE: 4G LTE Module Optional Image Rotation: Support G-sensor
High Light:

embedded computer boards

,

embedded arm board





RK3399 Embedded System Board with 4G WIFI Ethernet POE Optional



Six-core RK3399 Android decoder drives all in one board

Model:AD-B03





Intelligent industrial all in one board, using Rockchip RK3399 six-core chip program, support Google Android7.0 or higher system. Powerful computing power. Support H.265 4K video playback. Rich interface and enhanced power management circuit. Suitable for intelligent remote network control: industrial, medical, large advertising, educational video terminals and other equipment.





Characters:



1, It also supports 7-inch to 84-inch LVDS interface displays (point-to-point full HD display 1920*1080) and EDP interface display.

2, Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.

3, A variety of network interfaces: Ethernet, 4G, WIFI, Bluetooth.

4, Multi-channel USB interface, serial output.

5, Support 4K video play.

6, Strong anti-electromagnetic interference and electromagnetic compatibility.







Basic Hardware Specifications:



CPU Rockchip RK3399 dual core Cortex-A72+ quad core Cortex-A53 CPU
GPU ARM Mali-T860MP4 GPU
Deposit LPDDR4 4G
Built-in storage capacity EMMC 8GB/16G/32G/64G optional (labeled 16GB)
Display interface LVDS interface (single, 6-bit dual, 8-bit dual). Supports a maximum resolution of 1920x1080, support 7"-84" display
EDP screen interface, support resolution 1920x1080
Screen voltage Support 3.3V/5V/12V optional
Network With RJ45 interface, support 10/100/1000 Ethernet
Support 4G PCIE interface
With WIFI & BT module, support Wi-Fi 802.11a / b / g / n / ac protocol. Support BT4.0
Image rotation Support 0 degree, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function
Real Time Clock External real-time clock power supply battery
Interface device Support USB camera
5 USB HOST
SD card, maximum support 64GB
Class D amplifier: 5W*2 8 ohms, support microphone
 2.0 output
Audio MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format
Video Supports 2160P@24FPS decoding of H.264, MPEG2, VP6, VP8, MVC and other video formats. Online videos such as YouTube, up to 4K, HTML5 video playback, Flash 10.1 playback
Picture Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation / image enlargement
Power Adapter Input:AC100-240V.50-60HZ, Output: DC12V/3A







Basic Software Specifications:



Operating system Android 7.1.2
Basic software function Web browsing, email, e-book, resource manager
Sound mode Clock, alarm clock, calculator, recording
Voice support Multinational voice
Recording Support MP3, WMA format recording
Tool Calendar
Alarm Clock
Calculator
Note
Weather + clock
Recording
File processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
E-book PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule Calendar
Input Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)
Internet Browser -Chrome Lite
Email
Gmail
System Management APK installer
Original Android system, open root permissions, product customization development
Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended
Support OTA remote upgrade
System setting
Google Maps
Global time

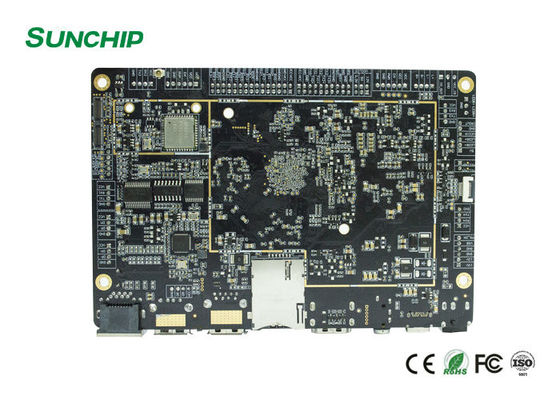

Board Photos:



RK3399 Embedded System Board Durable With 4G WIFI Ethernet POE Optional 0



RK3399 Embedded System Board Durable With 4G WIFI Ethernet POE Optional 1
