Product Details:
|
| CPU: | RK3399 | Panel: | 15.6'' |
|---|---|---|---|
| OS: | Android 7.1 Or Above | G-sensor: | YES |
| Resolution: | 1920*1080 | RAM/ROM: | 4GB/16GB (optional) |
| Touch Screen: | 10 Point Capacitive Touch | Ethernet: | RJ45, Support 10/100/1000M Ethernet |
| WIFI/Bluetooth: | 802.11 B/g/n/ac (optional); BT Available; | HD: | Support HD Output (optional) |
| Color: | Black | Material: | Plastic |
| High Light: | wall mount lcd display,wall advertising display |
||

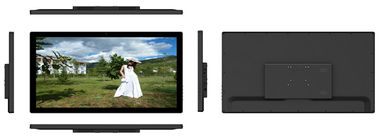

15.6 Inch Indoor Wall Mount Lcd Digital Signage Advertising Display Board product with WIFI LAN BT 4G LTE Optional

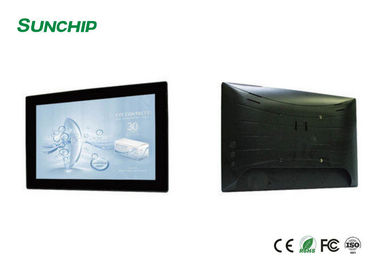

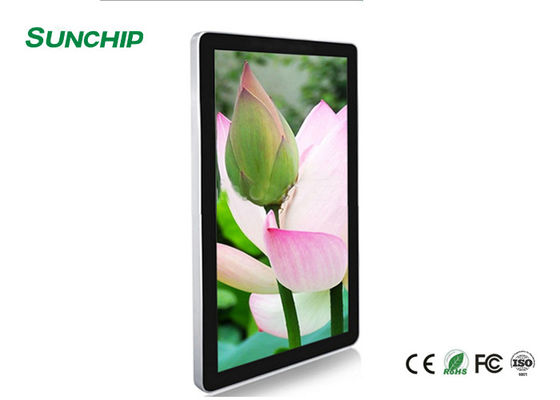

Wall mounted LCD advertising display from sunchip
Overview
Intelligent industrial all in one board, using Rockchip RK3399 six-core chip program, support Google Android7.0 or higher system. Powerful computing power. Support H.265 4K video playback. Rich interface and enhanced power management circuit. Suitable for intelligent remote network control: industrial, medical, large advertising, educational video terminals and other equipment.
Feature
1. It also supports 7-inch to 84-inch LVDS interface displays (point-to-point full HD display 1920*1080) and EDP interface display.
2. Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.
3. A variety of network interfaces: Ethernet, 4G, WIFI, Bluetooth.
4. Multi-channel USB interface, serial output.
5. Strong anti-electromagnetic interference and electromagnetic compatibility.
Product Details:
Basic hardware specifications:
| CPU | Rockchip RK3399 dual core Cortex-A72+ quad core Cortex-A53 CPU |
| GPU | ARM Mali-T860MP4 GPU |
| DDR | LPDDR4 4G |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (labeled 16GB) |
| Display interface | LVDS interface (single, 6-bit dual, 8-bit dual). Supports a maximum resolution of 1920x1080, support 7"-84" display |
| EDP screen interface, support resolution 1920x1080 | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Network | With RJ45 interface, support 10/100/1000 Ethernet |
| Support 4G PCIE interface | |
| With WIFI & BT module, support Wi-Fi 802.11a / b / g / n / ac protocol. Support BT4.0 | |
| Image rotation | Support 0 degree, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function |
| Real Time Clock | External real-time clock power supply battery |
| Interface device | Support USB camera |
| 5 USB HOST | |
| SD card, maximum support 64GB | |
| Class D amplifier: 5W*2 8 ohms, support microphone | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
| Video | Supports 2160P@24FPS decoding of H.264, MPEG2, VP6, VP8, MVC and other video formats. Online videos such as YouTube, up to 4K, HTML5 video playback, Flash 10.1 playback |
| Picture | Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation / image enlargement |
| Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V/3A |
Basic software specifications:
| Operating system | Android 7.1.2 |
| Basic software function | Web browsing, email, e-book, resource manager |
| Sound mode | Clock, alarm clock, calculator, recording |
| Voice support | Multinational voice |
| Recording | Support MP3, WMA format recording |
| Tool | Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather + clock | |
| Recording | |
| File processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input | Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
| Internet | Browser -Chrome Lite |
| Gmail | |
| System Management | APK installer |
| Original Android system, open root permissions, product customization development | |
| Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended | |
| Support OTA remote upgrade | |
| System setting | |
| Google Maps | |
| Global time |
