RK3568 Android Embedded ARM Board WIFI 4G 1000M Ethernet LVDS EDP MIPI RTC

RK3568 Android Embedded ARM Board WIFI 4G 1000M Ethernet LVDS EDP MIPI RTC
RK3568 Android Embedded ARM Board WIFI 4G 1000M Ethernet LVDS EDP MIPI RTC
RK3568 Android Embedded ARM Board WIFI 4G 1000M Ethernet LVDS EDP MIPI RTC RK3568 Android Embedded ARM Board WIFI 4G 1000M Ethernet LVDS EDP MIPI RTC RK3568 Android Embedded ARM Board WIFI 4G 1000M Ethernet LVDS EDP MIPI RTC

Large Image :  RK3568 Android Embedded ARM Board WIFI 4G 1000M Ethernet LVDS EDP MIPI RTC

Product Details:
Place of Origin: CHINA
Brand Name: SUNCHIP ADW
Certification: CE ROHS FCC
Model Number: AD-C33P
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Bubble bag
Delivery Time: Samples: 1-3 days; MP: 25 days;
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 30,000PCS

RK3568 Android Embedded ARM Board WIFI 4G 1000M Ethernet LVDS EDP MIPI RTC

Description
CPU: Rockchip RK3568 Quad-Core OS: ANDROID 11
DDR/EMMC: 2GB RAM/16GB ROM Display: LVDS/EDP/MIPI/HD OUT
3*Serial Port: UART3, UART4, UART7 LAN: 10/100/1000M Ethernet
WIFI/BT: 2.4G WIFI & Bluetooth 4.0 4G: Support 4G LTE MINI PCIE
USB: 1*USB 3.0, 1*USB OTG, 3*4PIN USB G-sensor: YES
RTC: YES Touch: YES
High Light:

RK3568 Android Embedded ARM Board

,

EDP MIPI Embedded ARM Board

,

LVDS RTC Embedded Mother Board





Android Embedded ARM Board RK3568 WIFI 4G 1000M Ethernet LVDS EDP MIPI HD out Sunchip ADW board





Sunchip is a professional solution company that dedicated to the development of embedded motherboards, software and hardware, and finished product manufacturing, as well as digital signage retail solutions.

1. So far, there are more than 10 years of PCBA design and production experience

2. A R&D team with more than 80 people, including hardware engineers (layout boards, debugging, etc.), software engineers (driver, kernel, test and apk engineers), ID design, mechanical design engineers, support OEM/OEM

3. The whole team has about 160 people

4. One-stop service: PCB layout design, prototype, production, PCBA SMT, test production, housing design, assembly, software customization, QC control, after-sales etc.

5. Passed ISO9001 factory certification

6. There are more than 3,500 square meters of office and workshop area, which is still expanding





Overview:

The large board of the intelligent industrial all-in-one machine adopts the Rockchip RK3568 quad-core chip solution. Support Android 11 system. Enhanced power management circuit. Support commonly used external devices. Rich interfaces and stable performance. Suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machines, educational video terminals and other equipment.



Characteristic:

1, Support 7-inch to 84-inch various LVDS interface displays (point-to-point full HD display 1920*1080).

2, Support EDP interface display screen.

3, Support MIPI interface display screen.

4, Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth, 4G.Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.

5, Multi-channel USB interface, serial port.

6, Strong anti-electromagnetic interference and electromagnetic compatibility.



Basic hardware specifications:

CPU Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52
Main frequency Up to 2.0 GHz
RAM DDR4 2G/4G optional
Built-in storage capacity EMMC 8GB/16G/32G/64G optional (label 16GB)

Display interface





LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display
MIPI interface
EDP interface
Screen voltage Support 3.3V/5V/12V optional
Touch screen

Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).

Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.

The internet



With RJ45 interface, support 10/100/1000M Ethernet.
Equipped with WIFI &BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0
Image rotation Support 0-degree, 90-degree, 180-degree, 270-degree manual/auto rotation, support gravity sensor function
Real Time Clock External real-time clock power supply battery





Interface device







Support MIPI interface camera, up to 500W pixels
4 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals)
3 groups of serial ports. Support external serial device module (NFC module, printer, card reader, etc.)
TF card, maximum support 32GB
Class D power amplifier: 3W*2 8 ohms, support microphone
HD 2.0 output
Audio MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format
Video Support 4K 60fps H.265/H.264/VP9 video decoding. Support 1080P 100fps H.265/H.264 video encoding. Support 8M ISP, support HDR.
Picture Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function
Power Adapter Input: AC100-240V.50-60HZ, output: DC12V 3A







Basic software specifications:



Operating system Android 11 system
Basic software functions Web browsing, web chat, email, e-book, resource manager
Sound effect mode Clock, alarm clock, calculator, recording
Language support Multi-lingual
Recording Support MP3, WMA format recording





Tool







Calendar
Alarm Clock
Calculator
Note
Weather + clock
Recording
Word processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
E-book PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule Calendar
Input Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)



Network





Browser -Chrome Lite
GOOGLE Market
Email
Gmail
Google talk
System Management Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation)
Original ecological Android system, open root permission, can carry out product customization development
Customizable local or remote server management system
Support a variety of third-party Android remote advertising systems
Support multiple serial devices, USB devices
Support dual-screen different display

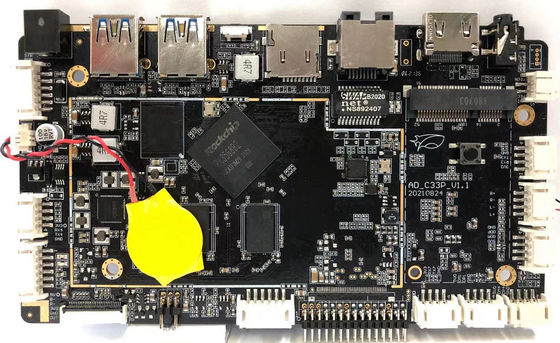

Android board pictures as the below:




Rockchip RK3568 Solution: ANDROID 11 OS,

2GB RAM/16GB ROM, Only Main board (no Sub small board).

Quad-Core, LVDS/EDP/MIPI/HD OUT for display, 3*Serial Port (UART3, UART4, UART7),

2.4G WIFI & Bluetooth 4.0, 10/100/1000M Ethernet, Support 4G LTE MINI PCIE, 1*USB 3.0,

1*USB OTG, 3*4PIN USB, 12V/3A.

Support rotation by manually or automatically; RTC; Support touch;
