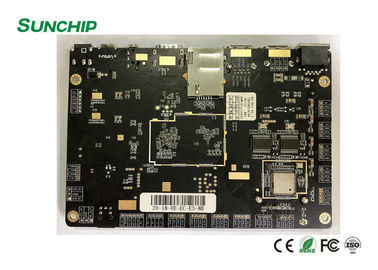

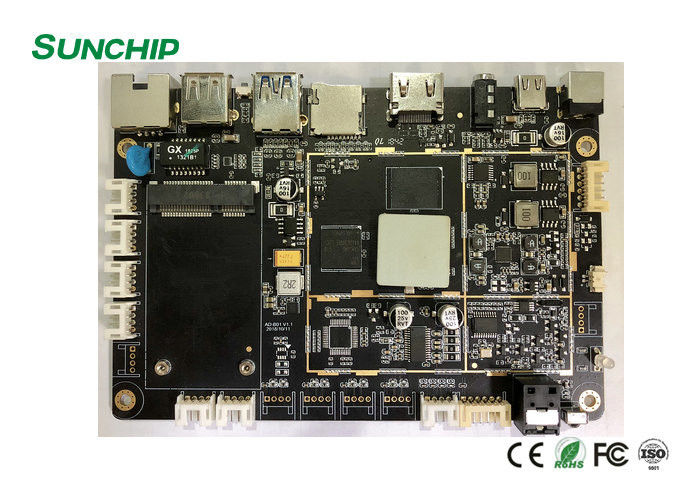

Intelligent RK3328 Custom Motherboard 4g System Signage Arm Board

Intelligent RK3328 Custom Motherboard 4g System Signage Arm Board
Intelligent RK3328 Custom Motherboard 4g System Signage Arm Board
Intelligent RK3328 Custom Motherboard 4g System Signage Arm Board Intelligent RK3328 Custom Motherboard 4g System Signage Arm Board Intelligent RK3328 Custom Motherboard 4g System Signage Arm Board

Large Image :  Intelligent RK3328 Custom Motherboard 4g System Signage Arm Board

Product Details:
Place of Origin: CN
Brand Name: Sunchip
Certification: CE/Rohs
Model Number: AD-B01
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Delivery Time: 5-8Working days
Payment Terms: T/T, Western Union
Supply Ability: 200PCS/WEEK

Intelligent RK3328 Custom Motherboard 4g System Signage Arm Board

Description
Product Name: Quad-core RK3328 Android Decoder Drives All In One Board CPU: Rockchip RK3328 Quad Core Cortex-A53 Quad Core
GPU: Mali-450MP2 ROM: 16GB/32GB/64GB Optional
RAM: 1GB/2GB/4GB Optional Display Interface: LVDS, EDP
Wifi: Support 2.4G Or 2.4G+5G WIFI Band 4G LTE: Supported Optional
MicroSD: Support USB: Support 2 USB Ports
G-Sensor: Yes OS: Android 6.0-9.0
High Light:

RK3328 Custom Motherboard

,

4g System Custom Motherboard

,

4g System custom mainboard

Intelligent RK3328 Custom Motherboard 4g System Signage Arm Board



RK3328 Android Decoder Drives 4g System Signage Arm Board Custom Motherboard​

 Quad-core RK3328 Android decoder drives all in one board



Overview:

Intelligent industrial all in one board adopts Rockchip RK3328 quad-core chip solution and supports Android7.1 system. Powerful computing power. With HD interface, support H.265 4K video playback. With a rich interface, the product becomes more versatile.



Characteristic:

  • Multiple interactive mode interfaces: infrared remote control, USB mouse.
  • A variety of network interfaces: Ethernet, 4G, wireless WIFI, Bluetooth.
  • Multi-channel USB interface, serial output.
  • Support 4K video playback with HD 2.0 HD output.
  • Strong anti-electromagnetic interference and electromagnetic compatibility.



Hardware Spec.

CPU Rockchip RK3328 quad core Cortex-A53 quad core GPU Mali-450MP2
Main frequency 1.5GHZ
Deposit LPDDR3 1G/2G
Built-in storage capacity EMMC 8GB/16G/32G/64G optional (labeled8GB)
Network With RJ45 interface, support 10/100/1000 Ethernet
Support 4G PCIE interface
With Wifi & BT module, support Wi-Fi 802.11b / g / n protocol. Support BT4.0
Real Time Clock Built-in real-time clock powered battery
Interface device Support USB camera
6 USB HOST,1 USB 3.0
SD card, maximum support 64GB
Class D amplifier: 5W*2 8 ohms, support microphone
HD 2.0 output
Audio MP3, AAC, WMA, FLAC, OGG, Dolby Digital, Dolby Digital Plus
Video Supports 1080P@60FPS decoding of video formats such as MPEG1, MPEG2, MPEG4, VP9, VP8, MVC, etc., and supports 4K@60FPS decoding of H.264 and H.265 video formats.
Picture Support JPG, BMP, PNG and other image formats to browse and support rotation / image zoom function
Power Adapter Input:AC100-240V.50-60HZ, Output: DC12V 3A






Software Spec.

Operating system Android 7.1
Basic software function Web browsing, email, e-book, resource manager
Sound mode Clock, alarm clock, calculator, recording
Voice support Multinational voice
recording Support MP3, WMA format recording
tool Calendar
  Alarm Clock
  Calculator
  note
  Weather + clock
  recording
File processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
E-book PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2
schedule calendar
Input Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)
Internet Browser -ChromeLite
  Email
  Gmail
System Management APK installer
  Original Android system, open root permissions, product customization development
  Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended
  Support OTA remote upgrade
  System setting
  Google Maps
  Global time
Intelligent RK3328 Custom Motherboard 4g System Signage Arm Board 0Intelligent RK3328 Custom Motherboard 4g System Signage Arm Board 1

Intelligent RK3328 Custom Motherboard 4g System Signage Arm Board 2Intelligent RK3328 Custom Motherboard 4g System Signage Arm Board 3Intelligent RK3328 Custom Motherboard 4g System Signage Arm Board 4Intelligent RK3328 Custom Motherboard 4g System Signage Arm Board 5Intelligent RK3328 Custom Motherboard 4g System Signage Arm Board 6Intelligent RK3328 Custom Motherboard 4g System Signage Arm Board 7
