Product Details:
|
| CPU: | Rockchip RK3328 Quad Core Cortex-A53 Quad Core GPU Mali-450MP2 | Display: | LVDS, EDP, |
|---|---|---|---|
| DDR: | LPDDR3 1G/2G | EMMC: | EMMC 8GB/16G/32G/64G Optional (labeled8GB） |
| NETWORK: | WIFI, LAN, Support 4G PCIE Interface | Interfaces: | 3*USB HOST、1*USB OTG |
| Image Rotation: | Support | ||
| High Light: | embedded computer boards,embedded arm board |
||
2020 New Customized Motherboard RK3328 Embedded System Board Android Linux OS Media Player Box with 4G LTE
RK3328 Android decoder drives all in one
Model:AD-B01
Intelligent industrial all in one board adopts Rockchip RK3328 quad-core chip solution and supports Android7.1 system. Powerful computing power. support H.265 4K video playback. With a rich interface, the product becomes more versatile.
Features:
Basic Hardware Specifications:
| CPU | Rockchip RK3328 quad core Cortex-A53 quad core GPU Mali-450MP2 |
| Main frequency | 1.5GHZ |
| Deposit | LPDDR3 1G/2G |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (labeled8GB) |
| Network | With RJ45 interface, support 10/100/1000 Ethernet |
| Support 4G PCIE interface | |
| With Wifi & BT module, support Wi-Fi 802.11b / g / n protocol. Support BT4.0 | |
| Real Time Clock | Built-in real-time clock powered battery |
| Interface device | Support USB camera |
| 6 USB HOST,1 USB 3.0 | |
| SD card, maximum support 64GB | |
| Class D amplifier: 5W*2 8 ohms, support microphone | |
| 2.0 output | |
| Audio | MP3, AAC, WMA, FLAC, OGG, Dolby Digital, Dolby Digital Plus |
| Video | Supports 1080P@60FPS decoding of video formats such as MPEG1, MPEG2, MPEG4, VP9, VP8, MVC, etc., and supports 4K@60FPS decoding of H.264 and H.265 video formats. |
| Picture | Support JPG, BMP, PNG and other image formats to browse and support rotation / image zoom function |
| Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V 3A |
Basic Software Specifications:
| Operating system | Android 7.1 |
| Basic software function | Web browsing, email, e-book, resource manager |
| Sound mode | Clock, alarm clock, calculator, recording |
| Voice support | Multinational voice |
| recording | Support MP3, WMA format recording |
| tool | Calendar |
| Alarm Clock | |
| Calculator | |
| note | |
| Weather + clock | |
| recording | |
| File processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 |
| schedule | calendar |
| Input | Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
| Internet | Browser -ChromeLite |
| Gmail | |
| System Management | APK installer |
| Original Android system, open root permissions, product customization development | |
| Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended | |
| Support OTA remote upgrade | |
| System setting | |
| Google Maps | |
| Global time |

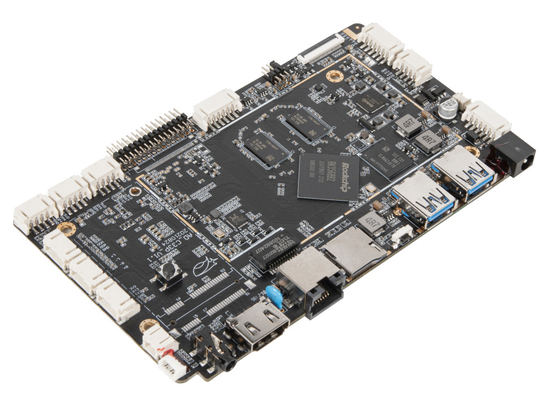

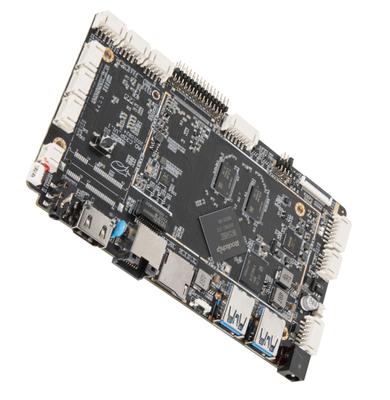

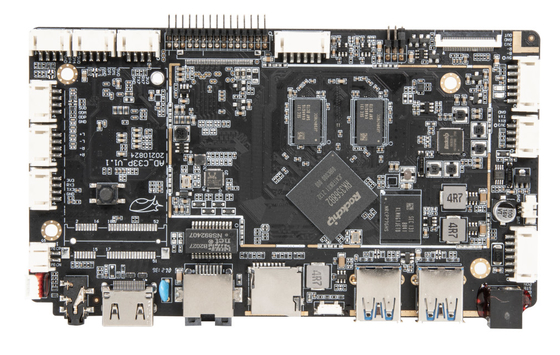

Board Photos:
