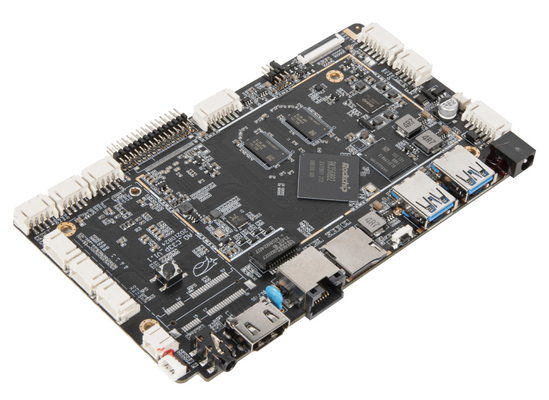

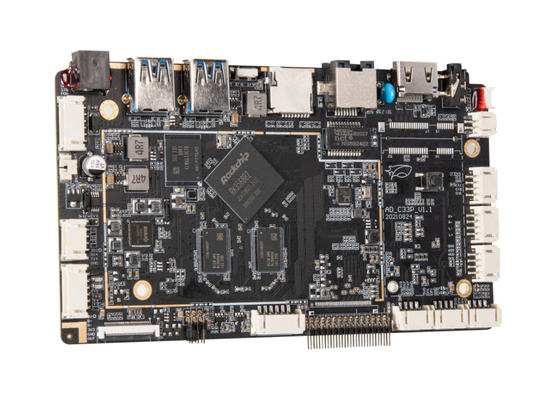

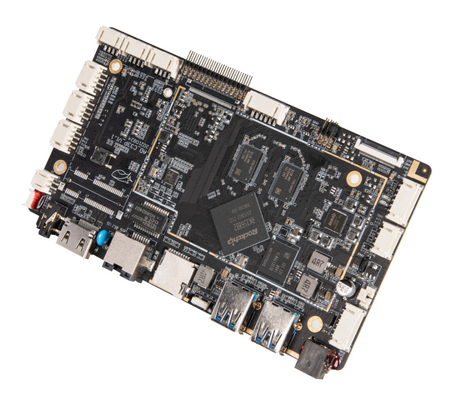

RK3288 4G LTE 2.4G/5G Wifi Enabled Embedded Board With LVDS MIPI EDP Screen Interface

RK3288 4G LTE 2.4G/5G Wifi Enabled Embedded Board With LVDS MIPI EDP Screen Interface
RK3288 4G LTE 2.4G/5G Wifi Enabled Embedded Board With LVDS MIPI EDP Screen Interface RK3288 4G LTE 2.4G/5G Wifi Enabled Embedded Board With LVDS MIPI EDP Screen Interface RK3288 4G LTE 2.4G/5G Wifi Enabled Embedded Board With LVDS MIPI EDP Screen Interface RK3288 4G LTE 2.4G/5G Wifi Enabled Embedded Board With LVDS MIPI EDP Screen Interface

Large Image :  RK3288 4G LTE 2.4G/5G Wifi Enabled Embedded Board With LVDS MIPI EDP Screen Interface

Product Details:
Place of Origin: China
Brand Name: RK3288 motherboard
Certification: CE, ROHS, ISO9001,ISO14001,ISO27000
Model Number: AD-B02P
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: Negotiation
Packaging Details: anti-static bag, 1pc/bag
Delivery Time: 1-30days
Payment Terms: TT/PAYPAL
Supply Ability: 10000P/M

RK3288 4G LTE 2.4G/5G Wifi Enabled Embedded Board With LVDS MIPI EDP Screen Interface

Description
Expansion: Micro SD Card Slot Ports: Ethernet, 4G, Wireless Wifi, BT, HD, Audio, SIM, USB, UART, RS232,etc
Wifi: 2.4G Or 2.4G & 5G,optional Screen Interface: LVDS, MIPI-DSI, HD,EDP
Usb: 5 X USB Sd Card: Support Up To 64GB
Screen Voltage: Support 3.3V/5V/12V Optional Edp Screen Interface: Support Resolution 1920*1080P
LVDS: Support Resolution 1920*1080P MIPI: Support Resolution 1920*1080P
CPU: RK3288 RAM: 2GB / 4GB Optional
ROM: 16GB/ 32GB / 64GB Optional

RK3288 4G LTE 2.4G/5G Wifi Enabled Embedded Board With LVDS MIPI EDP Screen Interface

Product Description:

The All in one board is a versatile and powerful option for your technology needs. Featuring an Android operating system and lvds output, this board offers a range of possibilities.

Underneath the hood, the board is equipped with a Rockchip RK3288 Quad Core Cortex-A17 processor, capable of reaching speeds up to 1.8GHz. This ensures fast and smooth performance for all your tasks.

But that's not all - the All in one board also supports impressive video capabilities. With 4K*2K 10bits VP9/H265/H264 video decoding, you can enjoy high-quality content at up to 60fps. This makes it perfect for applications such as Kiosks, Financial machines, Advertising machines, and Vending machines.

RK3288 4G LTE 2.4G/5G Wifi Enabled Embedded Board With LVDS MIPI EDP Screen Interface 0RK3288 4G LTE 2.4G/5G Wifi Enabled Embedded Board With LVDS MIPI EDP Screen Interface 1RK3288 4G LTE 2.4G/5G Wifi Enabled Embedded Board With LVDS MIPI EDP Screen Interface 2

Features:

High Integration:
Our product is specifically designed to provide high integration with various essential components such as USB, LVDS, Ethernet, HDMI, and WIFI. It serves as an all-in-one solution, simplifying the design of integral machines. Additionally, with the inclusion of a TF card slot, it offers even more convenience and versatility.

Android Operation System:
Our product supports a range of operation systems including Android 7.1, 8.0, and 9.0. It also comes with 2GB of RAM and 16GB of storage, ensuring smooth and efficient performance.

High Resolution:
With our product, you can enjoy high-quality video decoding and various LVDS output LCD display screen options with resolution up to 1080P and support for H.265 (4K2K) videos.

Audio Amplifier Included:
Our product supports a dual channel audio amplifier with 3W output for each channel, ensuring superior audio quality for your display.

Rich Interfaces:
For your convenience, our product offers a range of interfaces including USB, Serial Port, and ADC, making it suitable for mainstream AD machines in the market.

Full Functionality:
You can fully customize your display with our product, as it supports both landscape and portrait modes, video split screen, rolling word screen, On/Off timing, and data transfer through USB.

Easy Management:
Our user-friendly software allows for easy creation and management of playlists, making advertising-display management a breeze. With advertising-display record, checking AD display status is simple and efficient. Our product is widely used in various industries including gaming, healthcare, transportation, banking, and digital signage.



Technical Parameters:

Description

The CPU of this device is powered by the Rockchip RK3288 Quad-core Cortex-A17 processor, paired with a Quad-core GPU Mali-T764. It has a main frequency of 1.8 GHz.

The system comes with LPDDR3 2G/4G optional deposit, providing smooth and efficient performance. Users can also choose from different built-in storage capacities, including EMMC 8GB/16G/32G/64G etc.

Display

Featuring various display interfaces, this device supports LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel), with a maximum resolution of 1920x1080. It also supports EDP interface with maximum resolution of 4K. The screen voltage is customizable, with options of 3.3V/5V/12V.

Users can choose from different touch screen options such as I2C touch screen, USB multi-point infrared touch frame, resistance, and capacitive touch screen.

Internet Connection

Connect to the internet through the RJ45 interface, which supports 10/100M Ethernet. This device is also equipped with a wifi & BT module, supporting Wi-Fi 802.11b/g/n protocol and BT4.0. It also has a 4G module for 4G network support.

Image Rotation and Real Time Clock

This device allows for manual/auto image rotation in 0, 90, 180, and 270 degrees. It also has a gravity sensor function (optional). The real time clock is powered by an external battery.

Interface Devices

This device supports MIPI cameras and HDMI output. It also has five USB HOST ports for various peripherals such as usb cameras @500W, printers, U disks, mice, keyboards, and other standard usb devices. In addition, it has three groups of serial ports (1 group of UART; 2 groups of standard UART or optional RS232) that can support external devices like NFC modules, printers, and card readers. It also has three IO detection ports and a TF card slot.

Audio and video formats supported by this device include MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, and 3GPP for audio, and H.264, MPEG2, VP6, VP8, and MVC for video. Users can enjoy YouTube and other online videos up to 4K resolution, as well as HTML5 video playback and Flash 10.1 playback. It also supports image browsing with JPG, BMP, and PNG formats, and has rotation, slide show, and zoom functions.

Power Adapter

The power adapter has an input of AC100-240V, 50-60HZ and an output of DC12V 3A.

Basic hardware specifications

CPU Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764
Main Frequency 1.8 GHz
RAM LPDDR3 2G/4G optional
Built-in storage capacity EMMC 8GB/16G/32G/64G optional
Display interface LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display
EDP interface
Screen Voltage Support 3.3V/5V/12V optional
Touch screen

Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).

Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.

Internet With RJ45 interface,Support 10/100M Ethernet.
With Wifi&BT Module,support Wi-Fi 802.11b/g/n protocol.Support BT4.0
Image rotation Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function
Real Time Clock Built-in (optional external) real-time clock power supply battery
Interface device Support MIPI interface camera, up to 500W pixels
4 USB HOST, 1 USB OTG(Support usb camera @500W usb printer ,U disk ,mouse ,keyboard standard usb external equipment)
3groups of serial ports. Support external serial port device modules (3G module, NFC module, printer, card reader, etc.)
TF card,Support Max 32GB
Class D power amplifier: 3W*2 8 ohms, support microphone
HDMI 2.0 Output
Audio MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP格式
Video Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback
Image Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function
Power Adapter Inout:AC100-240V.50-60HZ,Output:DC12V 3A












Basic software specifications

Operation System Android 8.0 and above
Basic software functions Web browsing, web chat, email, e-book, resource manager
Sound effect mode Clock, alarm clock, calculator, recording
Language support multi-lingual
Recording Support MP3, WMA format recording
Tool Calendar
Alarm Clock
Calculator
note
Weather + clock
recording
Word processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
Ebook PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule calendar
Input Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)
Network Browser -ChromeLite
GOOGLE Market
Email
Gmail
Google talk
System Management Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation)
The original ecological Android system, open root permissions, can be customized product development
Customizable local or remote server management system
Support a variety of third-party Android remote advertising publishing systems
Support multi-channel serial devices, USB devices, IO control devices


Applications:

Application Field

The devices mentioned below can be used for a variety of purposes, but they are mainly used in the commercial sector:

  • Commercial advertising display machine
  • POS machine
  • Digital photo frame advertising machine
  • Touch all-in-one machine
  • Self-service vending machine
  • Mobile payment terminal
















Product Size:
​150*85mm
Packed with static bag
