Product Details:
|
| Ports: | Ethernet, 4G, Wireless Wifi, BT, HD, Audio, SIM, USB, UART, RS232,etc | Storage Temperature Range: | -20°C To 80°C |
|---|---|---|---|
| Expansion: | Micro SD Card Slot | Edp Screen Interface: | Support Resolution 1920*1080P |
| Power: | 12V/2A | Usb: | 5 X USB |
| Screen Voltage: | Support 3.3V/5V/12V Optional | Sd Card: | Support Up To 64GB |
| CPU: | RK3288 | RAM: | 2GB / 4GB Optional |
| ROM: | 16GB/ 32GB / 64GB Optional |

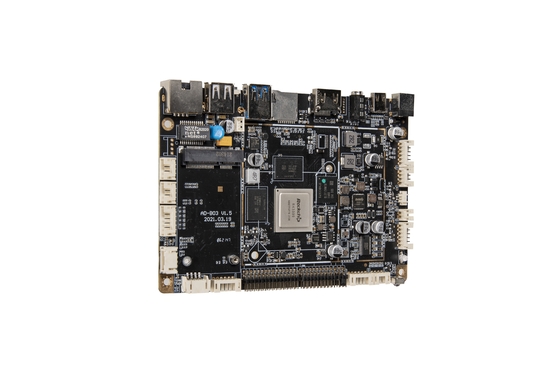

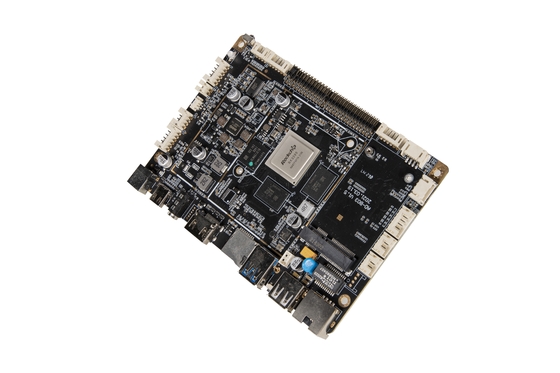

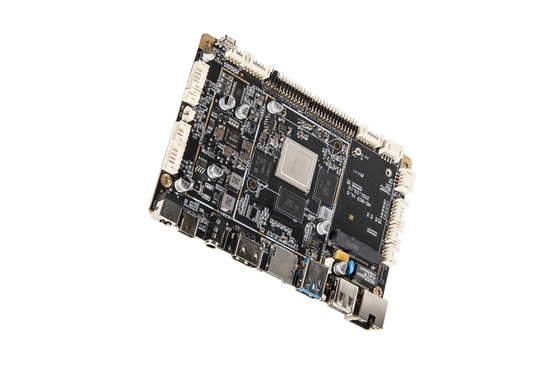

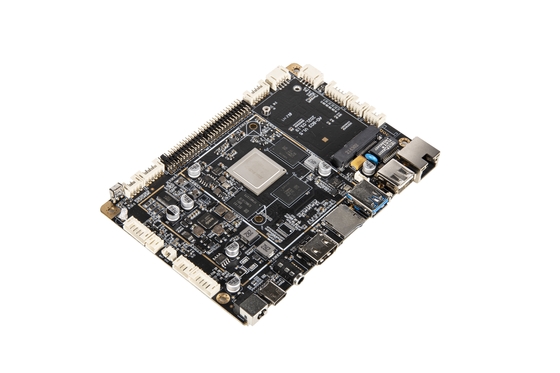

Introducing our latest Android board with lvds output, perfect for a variety of uses such as kiosks, financial machines, advertising machines, vending machines, and more.
Specifications:
1.Main IC :RK3288 Maximum Frequency 1.8GHZ
2.Memory:2G DDR3
3.Flash:4G NANDFLASH(EMMC Support 64G )
4.Video output :support LVDS, EDP and MIPI video output and HD-MI out, the highest resolution 3840X2160.
5. Audio output: stereo, supporting Dolby sound
6. Network :Support 10/100 MHZ LAN and wireless WIFI 2.4 or 5G.
7.Operating System:ANDROID 6.0/7.1/9.0
8.PCB size:140mmX95mm
9.Power supply mode:support 12V /3A input
10.Touch panel:support multi point capacitive touch screen.
11.Memory CARD types: support TF CARD --- highest 32G disk.
12. USB Interface:Can support USB OTG & USB HOST
13.RTC:support clock memory when it is power off, support automatic restart and shut down.
14.Adaptive temperature:-20 - 70 centigrade.
◆ High-performance: ARM cortex-A17 Quad-core CPU+Mali-T76x GPU and 2GB DDRAM. Capable of playing 4K*2K UHD videos and handling complex interactive operations.
◆High Robustness: Can achieve 7*24 hours unattended.
◆High level of integration: Integrated with gigabit Ethernet, Wi-Fi, Blue tooth, 6W audio amplifier, TF card reader, IR remote control, HDMI output, LVDS, eDP, microphone,etc. It is greatly simplify the design of the whole machine.
◆High scalability: 5x USB ,3xSerial ports,2x I2Cports,6xGPIO
Basic hardware specifications::
| CPU | Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764 |
| Main frequency | 1.8 GHz |
| Deposit | LPDDR3 2G/4G Optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G etc. optional |
|
Display interface
|
LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-82" display |
| EDP interface Maximum resolution 4K | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Touch screen | Support I2C touch screen, USB multi-point infrared touch frame, resistance, capacitive touch screen. |
|
The internet
|
With RJ45 interface, support 10/100M Ethernet. |
| Equipped with wifi &BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 | |
| With 4G module, support 4G network | |
| Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function (optional) |
| Real Time Clock | External real-time clock power supply battery |
|
Interface device
|
Support MIPI camera |
| Support HDMI output | |
| 5 USB HOST (support usb camera@500W usb printer, U disk, mouse, keyboard and standard usb peripherals) | |
| 3 groups of serial ports (1 group of UART; 2 groups of standard UART or optional RS232). Support external serial devices (NFC module, printer, card reader, etc.) | |
| 3 IO detection ports | |
| TF card | |
| D class large built-in speaker, 5W*2 8R | |
| Support microphone | |
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format |
| Video | Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback |
| Image | Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
| Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V 3A |
Basic software specifications:
| operating system | Android 5.1 and above |
| Basic software functions | Web browsing, web chat, email, e-book, resource manager |
| Sound effect mode | Clock, alarm clock, calculator, recording |
| language support | multi-lingual |
| recording | Support MP3, WMA format recording 3gpp, arm and other formats, according to the recording APK is different, the format is different, now the system comes with the arm format |
|
tool
|
Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather + clock | |
| Recording | |
| Word processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| schedule | Calendar |
| Input | Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
|
The internet
|
Browser -Chrome Lite |
| Gmail | |
| System Management | APK installer |
| Original ecological Android system, open root permission, can carry out product customization development | |
| Real-time remote monitoring, self-recovery from system crashes, 7*24 hours unattended | |
| System setting | |
| Global time | |
| Support OTA remote upgrade |
The application field of our products includes a variety of high-tech solutions that are designed to enhance the user experience and drive business growth. Our range of innovative products are specifically tailored for the following purposes:
Our commercial advertising display machines are ideal for businesses looking to promote their products or services. These machines feature high-quality displays and advanced features such as wireless capabilities and remote content management, making them a convenient and powerful tool for advertising.
Our Point of Sale (POS) machines are equipped with the latest technology and software, making them a reliable and efficient way for businesses to manage transactions. With features such as inventory tracking and payment processing, our POS machines help to streamline operations and improve customer satisfaction.
Make your advertising stand out with our digital photo frame advertising machine. These machines use high-resolution displays to showcase vibrant and eye-catching ads, making them perfect for locations with high foot traffic such as malls, hotels, and retail stores.
Our touch all-in-one machines offer a complete solution for businesses looking to enhance customer interaction and engagement. With interactive touch screens and a variety of customizable features, these machines are perfect for applications like information kiosks, digital directories, and more.
Improve convenience and efficiency with our self-service vending machines. These machines come equipped with advanced features such as cashless payment options and real-time inventory tracking, making it easier for customers to make purchases and for businesses to manage operations.
Our smart interactive display screens are designed to deliver dynamic and engaging content in various settings. These screens can be used in classrooms, conference rooms, retail stores, and more, offering interactive learning experiences, presentations, and promotional displays.
SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
Sunchip is a national high-tech enterprise with various patents. Our factory runs under the ISO 9001 & ISO 14001 certification. Our products fully completely with CE, RoHS and FCC certifications.
Sunchip has become the ODM / OEM partner of a number of world-class companies. Our products have been exported to over eighty worldwide countries.We do the best we can consistently to provide excellent quality products and one-stop services for all customers.
We are looking forward to cooperating, developing and growing with you sincerely.
We mainly manufacture
1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android media player box for digital signage advertising: RK3399, RK3288, RK3328.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Stretched lcd Display signage, support ODM.
5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
6, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
8, Embedded touch desk: such as 32inch.
9, Face recognition temperature detection terminal machine: such as 8inch.
[you can also tell us your requirements, so that we advise you a matched solution]
