RK3288 Advertising Koisk Vending Intellegent Device Embedded System Board

Customer Reviews
Awesome news! I know your team has worked hard, thanks for finish the project so quickly.

—— Brian Walker

I like your sample very much. Looking forward to growing our partnership.

—— Jenny Westbrook

I'm Online Chat Now

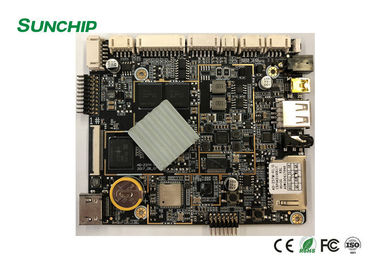

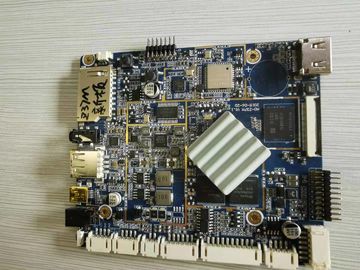

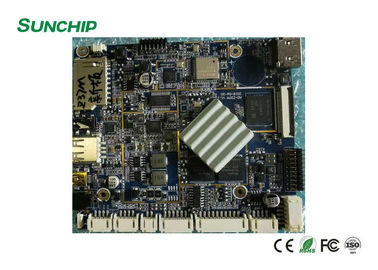

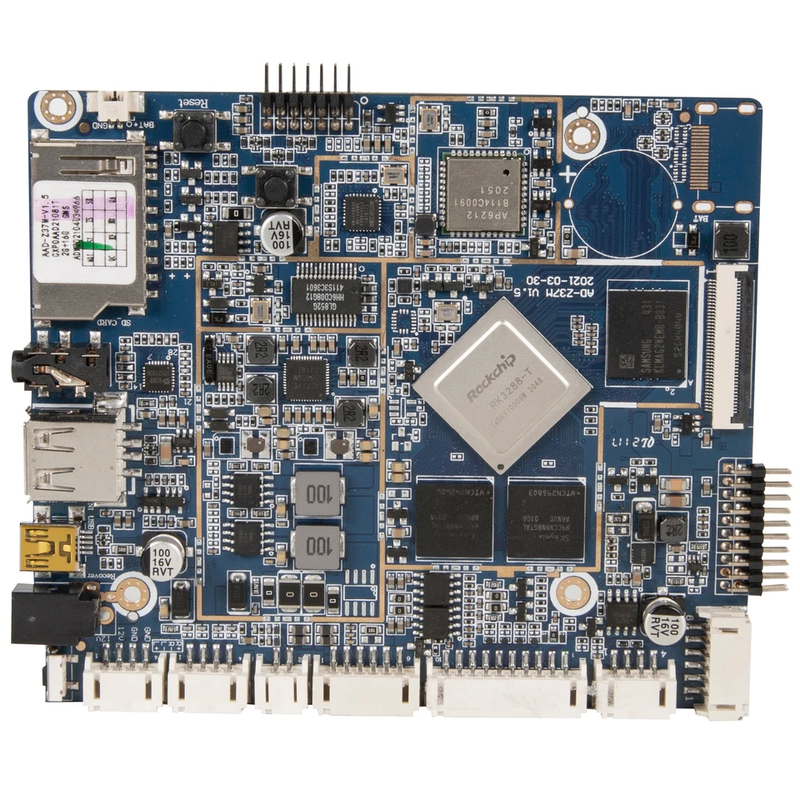

RK3288 Advertising Koisk Vending Intellegent Device Embedded System Board

RK3288 Advertising Koisk Vending Intellegent Device Embedded System Board
RK3288 Advertising Koisk Vending Intellegent Device Embedded System Board RK3288 Advertising Koisk Vending Intellegent Device Embedded System Board RK3288 Advertising Koisk Vending Intellegent Device Embedded System Board RK3288 Advertising Koisk Vending Intellegent Device Embedded System Board RK3288 Advertising Koisk Vending Intellegent Device Embedded System Board

Large Image :  RK3288 Advertising Koisk Vending Intellegent Device Embedded System Board

Product Details:
Place of Origin: China
Brand Name: RK3288 motherboard
Certification: CE, ROHS, ISO9001,ISO14001,ISO27000
Model Number: AD-Z37M
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: Negotiation
Packaging Details: anti-static bag, 1pc/bag
Delivery Time: 1-30days
Payment Terms: TT/PAYPAL
Supply Ability: 10000P/M

RK3288 Advertising Koisk Vending Intellegent Device Embedded System Board

Sd Card: Support Up To 64GB Ports: Ethernet, 4G, Wireless Wifi, BT, HD, Audio, SIM, USB, UART, RS232,etc
Expansion: Micro SD Card Slot Usb: 5 X USB
Serial Ports: 3 Groups Of Serial Ports Power: 12V/2A
Onboard Backlight: Support 3.3V/5V/12V Optional Screen Interface: MIPI-DSI, HD,EDP
CPU: RK3288 RAM: 2GB / 4GB Optional
ROM: 16GB/ 32GB / 64GB Optional OS: Android 10 / 9 /7.1/ 6.0 Optional
4G Expand Board: Supported

RK3288 Advertising Koisk Vending Intellegent Device Embedded System Board

Product Description:

All in one board

This board combines the capabilities of Android and LVDS output, making it a versatile choice for a variety of applications.

Key Specs
  1. Rockchip RK3288 Quad Core Cortex-A17, up to 1.8GHz - This high-performance processor allows for smooth operation and multitasking.
  2. Supports 4K*2K 10bits VP9/H265/H264 video decoding, up to 60fps - This board can handle high-quality video content with ease, making it suitable for applications such as kiosks, financial machines, advertising machines, and vending machines.

RK3288 Advertising Koisk Vending Intellegent Device Embedded System Board 0


RK3288 Advertising Koisk Vending Intellegent Device Embedded System Board 1RK3288 Advertising Koisk Vending Intellegent Device Embedded System Board 2


High Integration:

Our device is equipped with various interfaces, including USB, LVDS, Ethernet, HDMI, and WIFI, making it an all-in-one solution for simplifying integral machine design. The addition of a TF card slot adds versatility and convenience to the device.

Android Operation System:

The device is powered by Android 7.1 8.0 9.0 Operation System, providing a user-friendly and familiar interface. With a capacity of 2GB RAM and 16GB ROM, the device offers sufficient storage and processing power for various applications.

High Resolution:

Our device supports 1080P and H.265(4K2K) Video decoding, allowing for high-quality video playback. It also offers various LVDS output options for LCD display screens, ensuring the best possible resolution for your display needs.

Audio Amplifier:

The device comes with a built-in audio amplifier, supporting Dual channel amplifier 3W*2. This provides a powerful and clear audio experience for your display.

Rich Interfaces:

In addition to the previously mentioned interfaces, our device also supports USB, Serial Port, and ADC, making it compatible with various AD machines in the market.

Full Functionality:

Our device offers a wide range of features, including display screen rotation for both landscape and portrait orientations, video split screen, rolling word screen, On/Off timing, and data transfer through USB.

Easy Management:

Our user-friendly software allows for easy playlist making and advertising display management and control. The device also has a recording feature for advertising displays, making it convenient to check the status of your ads. It's suitable for various industries, including gaming machines, industrial displays, medical displays, transportation displays, banking ATMs, touch solutions, KIOSKs, digital signage, and industrial self-service automation.


Technical Parameters:

CPU Specifications

CPU: Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764

Main frequency: 1.8 GHz

Deposit: LPDDR3 2G/4G Optional

Built-in storage capacity: EMMC 8GB/16G/32G/64G etc. optional

Display Interface

LVDS interface: Single-channel, 6-bit dual-channel, 8-bit dual-channel

Maximum resolution: 1920x1080

Supported display size: 7"-82"

EDP interface: Maximum resolution 4K

Screen voltage: Support 3.3V/5V/12V optional

Touch screen: Support I2C touch screen, USB multi-point infrared touch frame, resistance, capacitive touch screen

Internet Connectivity

Supported interfaces: RJ45, Wi-Fi 802.11b/g/n, BT4.0, 4G

RJ45 interface: Support 10/100M Ethernet

Wi-Fi & BT module: Support Wi-Fi 802.11b/g/n protocol, BT4.0

4G module: Support 4G network

Image Features

Rotation: Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation

Gravity sensor: Optional feature to support automatic rotation based on device orientation

Real Time Clock: External real-time clock power supply battery

Interface Device

Supported devices: MIPI camera, HDMI output, 5 USB HOST, serial ports, IO detection ports, TF card, D class built-in speaker, microphone

MIPI camera: Support

HDMI output: Support

5 USB HOST: Support different USB devices such as cameras, printers, and peripherals

Serial ports: Support 3 groups (1 group of UART; 2 groups of standard UART or optional RS232) for external devices such as NFC modules, printers, and card readers

IO detection ports: Support

TF card: Support

Built-in speaker: D class large speaker, 5W x 2 8R

Microphone: Support

Supported Media Formats

Audio: MP3, WMA, WAV, APE, FLAC, AAC, OGG,M4A,3GPP formats

Video: Support H.264, MPEG2, VP6, VP8, MVC and other video formats with 2160P@24FPS decoding. Can play online videos including YouTube up to 4K, and also support HTML5 and Flash 10.1 playback

Image: Support JPG, BMP, PNG and other image formats with browsing and rotation/slide show/zoom functions

Power Adapter

Input: AC100-240V, 50-60HZ

Output: DC12V 3A


Basic software specifications:

Operating system Android 8.0 and above
Basic software functions Web browsing, web chat, email, e-book, resource manager
Sound effect mode Clock, alarm clock, calculator, recording
Language support multi-lingual
Recording Support MP3, WMA format recording
Tool Calendar
Alarm Clock
Weather + clock
Schedule calendar
Input Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)
Network Browser -ChromeLite
Google talk
System Management APK installer
The original ecological Android system, open root permissions, can be customized product development
Real-time remote monitoring, self-recovery from system crashes, 7*24 hours unattended
System setting
Google Maps
Global time
Support OTA remote upgrade


Application Field

The following are some examples of electronic devices used for various purposes:

  • Commercial advertising display machines - used for showcasing advertisements in commercial settings.
  • POS machines - used for processing point-of-sale transactions in retail and other business environments.
  • Digital photo frame advertising machines - used for displaying promotional content in the form of digital photos.
  • Touch all-in-one machines - versatile devices that integrate multiple functions such as touchscreen interaction, data processing, and multimedia display.
  • Self-service vending machines - used for dispensing products or services without the need for a human operator.








Product Size:
Packed with static bag
RK3288 Advertising Koisk Vending Intellegent Device Embedded System Board 3RK3288 Advertising Koisk Vending Intellegent Device Embedded System Board 4
RK3288 Advertising Koisk Vending Intellegent Device Embedded System Board 5
