RK3566 Android 11 Industrial Motherboard for Digital Signage

RK3566 Android 11 Industrial Motherboard for Digital Signage
RK3566 Android 11 Industrial Motherboard for Digital Signage
RK3566 Android 11 Industrial Motherboard for Digital Signage RK3566 Android 11 Industrial Motherboard for Digital Signage RK3566 Android 11 Industrial Motherboard for Digital Signage

Large Image :  RK3566 Android 11 Industrial Motherboard for Digital Signage

Product Details:
Place of Origin: CHINA
Brand Name: ADW
Certification: CE, FCC, ROHS, ISO9001
Model Number: AD-C36
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Carton / Wooden case
Delivery Time: Samples: 1-3 days; MP: 25 days;
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 10000PCS/Month

RK3566 Android 11 Industrial Motherboard for Digital Signage

Description
CPU: Rockchip RK3566 Quad-core A55 Architecture Products Status: Stock
RAM: 2G DDR4 Built-in Storage Capacity: EMMC 16G/32G/64G Optional
Display Interface: HD, MIPI, LVDS, EDP(optional) Operating System: Android 11 And Above
Network: BT,WIFI, Ethernet, 4G Optional Application: Audio Player;ultrathin AIO;embedded Industrial System;etc,digital Signage

RK3566 Android 11 Industrial Motherboard for Digital Signage



Product Model: AD-C36-V1.1

Quad-core RK3566 Android Decoding Driver Integrated Board



Product Overview:

A. Intelligent industrial all-in-one large board, using Rockchip RK3566 quad-core chip solution.

B. Support Android 11 system. Enhanced power management circuit.Support common external devices.

C. Rich interface and stable performance.

D. Suitable for intelligent remote network control: class industrial, medical, large advertising machines, educational video terminals and other equipment.

E. Support MIPI interface display + EDP interface display + LVDS interface display + HDMI 2.0 (4K display)

F. Multiple interaction mode interface: capacitive touch, infrared touch, USB keyboard and mouse, multi-point optical touch.

G. Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth.

H. Multiple USB ports, serial ports.

I.  Strong resistance to electromagnetic interference and electromagnetic compatibility.



Product Images:

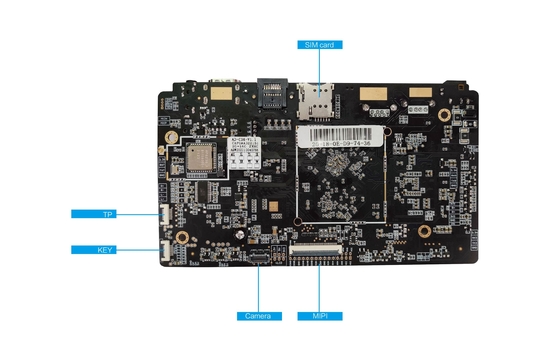

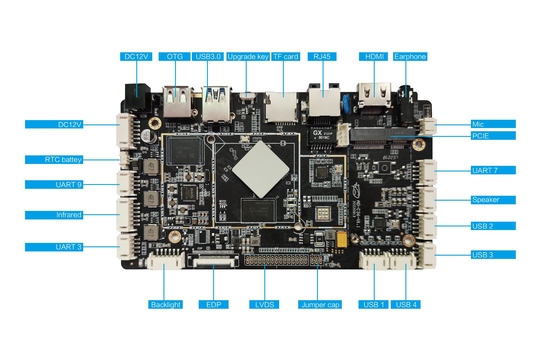

RK3566 Android 11 Industrial Motherboard for Digital Signage 0RK3566 Android 11 Industrial Motherboard for Digital Signage 1

Basic hardware specifications:



CPU Rockchip RK3566 Quad-core A55 architecture
Main frequency 1.8GHz
GPU ARM Mali-G52 2EE
OpenGL ES 1.1/2.0/3.2
Vulkan 1.1
OpenCL 2.0
Embedded with high performance 2D acceleration hardware
NPU 1TOPS computing power, support int8/int16
RAM 2G DDR4
Built-in storage capacity EMMC 16G/32G/64G optional
Display Interface HDMI2.0(maximum support 4K@60FPS)
MIPI display interface (MIPI and LVDS can only be selected as one)
LVDS display interface (MIPI and LVDS can only be selected as one)
EDP display interface
Screen voltage 3.3V/5V/12V optional



Touch screen

Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch)

Support USB multi-point infrared touch, multi-point acoustic touch, multi-point optical touch.

Network With RJ45 interface, support 10/100M Ethernet.
With Wifi & BT module, support Wi-Fi 802.11b/g/n protocol. Support BT4.0
Image rotation Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function
Real-time clock Built-in real-time clock powered battery
Interface device Support MIPI interface camera, support up to 500W pixels
4 USB HOST 2.0, 1 USB HOST3.0, 1 USB OTG (support usb camera @ 500W usb printer, USB stick, mouse, keyboard standard usb peripherals)
2 groups of serial ports, support external serial device modules (NFC modules, printers, card swipes, etc.)
TF card, supports up to 32GB
Class D amplifier: 3W*2 8 ohms, microphone support
Audio MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP
Video

Support H.265/H.26/VP9 video decoding, up to 4K60FPS

Support H.264/H.265 video encoding, up to 4K30FPS

Picture Support JPG, BMP, PNG and other image formats to browse and support rotation / slideshow / image zoom function
Power adapter Input:AC100-240V.50-60HZ, output: DC12V 3A(Internal positive and external negative)



Basic software specifications:

Operating system

Android 11 and above

Basic software functions

Web browsing, web chat, email, e-book, resource manager

Sound mode

Clock, alarm clock, calculator, recording

Language

multi-lingual

recording

Support MP3, WMA format recording

Tool

Calendar

Alarm Clock

Calculator

Note

Weather + clock

Recording

Word processing

EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT

E-book

PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2

schedule

Calendar

Input

Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)

Internet

Browser -Chrome Lite

GOOGLE Market

Email

Gmail

Google talk



System Management

Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation)

Original Android system with open root access for product customization and development

Customizable local or remote server management system

Support multiple third-party Android remote ad distribution systems

Support multi-channel serial devices, USB devices, IO control devices



RK3566 Android 11 Industrial Motherboard for Digital Signage 2
RK3566 Android 11 Industrial Motherboard for Digital Signage 3
Sunchip Office:



RK3566 Android 11 Industrial Motherboard for Digital Signage 4



RK3566 Android 11 Industrial Motherboard for Digital Signage 5



SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 160 employees’ team that including over 90 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.



We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.



FAQ:

Q1: I need large quantities, so, can I have lower price?

A: We will lower your cost if you can order large quantities at a time, please contact our us for details.



Q2: Can you modify the standard product?

A: Sure, please submit your technical requirement and order quantity, we will modify the

product after audit.



Q3: Can we cooperate for customized project?

A: Yes. Sunchip is a company which support OEM/ODM service. We often deal with special case.



Q4: Can I pre-install APPs?

A: Sure, we can pre-install customers’ APP into the Android System.

Except for pre-install APPs, Sunchip also support to customize the boot logo and animation, revise the system model number and build number, set defaulted time zone and language etc.



Q5: How is the stability of product?

A: Our Android LCD is usually used in retailing and industrial grade/application;

It can work 7*24h without crash.

The 4G or Wi-Fi or Ethernet can also work stable for long time.



Q6: Any optional version for the product?

A: Yes, such as the android board models, RAM/ROM, OS Version, LCD module size, touch or not, brightness, WIFI/BT LAN and 4G, GPS etc.



Q7: How is your warranty policy?

A: 12-month.
