Product Details:
|
| Application: | Indoor | Operating System: | Android/Linux |
|---|---|---|---|
| Resolution: | 1920*1080 | Panel: | IPS |
| Panel Size: | 21.5 Inch | Brightness: | 300cd/㎡ |
| After-sales Service: | Online Support, Video Technical Support | Usage: | Advertising Display, Interactive Menu |

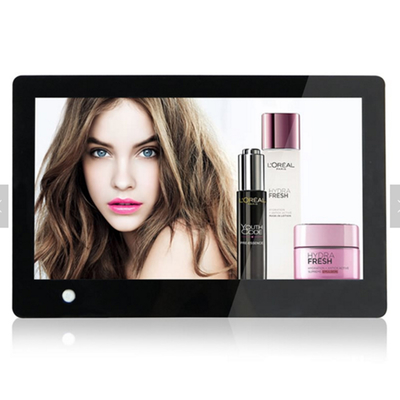

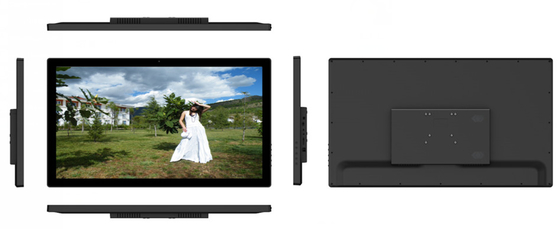

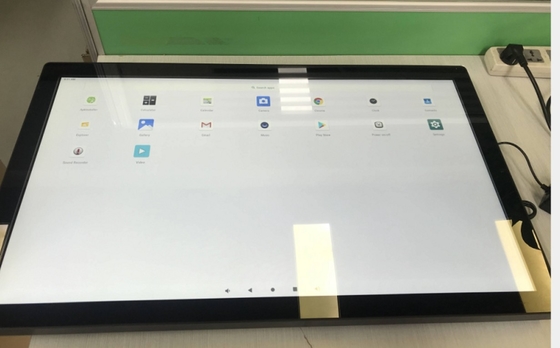

Helpful Advertising Signage Screen 21.5 Inch Restaurant Wall Menu Boards LVDS EDP lcd digital signage LCD touch Screen
Model No: AD-ʺ-3399 (B03)

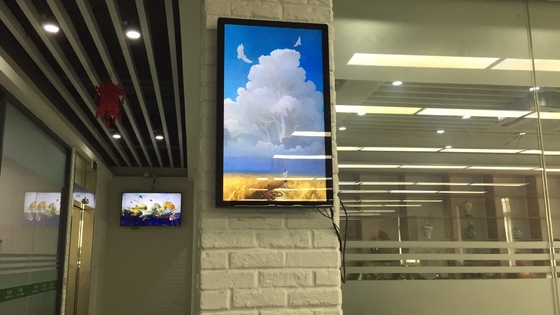

Traditional paper menu boards are neither environmentally friendly nor convenient. It needs to be replaced when broken, replaced when new dishes are added, and replaced when prices are modified ...... If you want beautiful, convenient, and clear, the SunChip advertising machine can meet all your needs. Customized installation layout is provided to make full use of the actual space. Advertising information can be converted at any time, and the content is updated in real time. Support picture and video playback at the same time. One machine releases multiple messages, which is more cost effective.
Characteristic of the Board
| CPU | Rockchip RK3399 dual core Cortex-A72+ quad core Cortex-A53 CPU |
| GPU | ARM Mali-T860MP4 GPU |
| Deposit | LPDDR4 4G |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (Default 16GB) |
| Display interface | LVDS interface (single, 6-bit dual, 8-bit dual). Supports a maximum resolution of 1920x1080, support 7"-84" display |
| EDP screen interface, support resolution 1920x1080 | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Network | With RJ45 interface, support 10/100/1000 Ethernet |
| Support 4G PCIE interface | |
| With WIFI & BT module, support Wi-Fi 802.11a / b / g / n / ac protocol. Support BT 5.0 | |
| Image rotation | Support 0 degree, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function |
| Real Time Clock | External real-time clock power supply battery |
| Interface device | Support MIPI camera x2 |
| USB HOST x 3 (support usb camera@500W usb printer, U disk, mouse, keyboard and standard USB peripherals), 1x USB3.0 | |
| 3x UART/(2 UART, 1 SPI), support external serial device (NFC module, printer, card reader, etc.) | |
| TF card, maximum support 64GB | |
| Class D amplifier: 5W*2 8 ohms, support microphone | |
| HDMI 2.0 output | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
| Video | Supports H.264, MPEG2, VP6, VP8, MVC and other video formats. Online videos such as YouTube, up to 4K, HTML5 video playback, Flash 10.1 playback |
| Picture | Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation / image enlargement |
| Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V/3A |
Sunchip is one of Apple's providers and Tesla.
We are professional manufacturer, designer and solution company that established in 2012, dedicated to the development of embedded motherboards, software and hardware, and finished product manufacturing, as well as digital signage retail solutions.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
1. So far, there are more than 10 years of PCBA design and production experience.
In 2022, we had the 10th Anniversary Celebration.
2. A R&D team with more than 80 people, including hardware engineers (layout boards, debugging, etc.), software engineers (driver, kernel, test and apk engineers), ID design, mechanical design engineers, support OEM/OEM
3. The whole team has about 160 people.
4. One-stop service: product definition, schematic design, PCB layout design,
prototype, production, PCBA SMT, test production, housing design, assembly, software customization, QC control, after-sales etc.
5. Passed ISO9001 factory certification
6. There are more than 3,800 square meters of office and workshop area, which is still expanding.
Introduction of the advantages from Sunchip:
1, More than 10 years of PCBA design and production experience.
2, A R&D team of more than 80 people, including hardware engineers (layout, debugging) and software engineers (drivers, kernels, testing, apk engineers).
ID Design engineer, Mechanical Design engineer, -> Support OEM/ODM.
3, Team of more than 160 people.
4, One-stop service: PCB design, prototype, production, PCBA SMT, testing, shell design, assembly, software customization, QC control, after-sales.
5, Got ISO9001 factory certification.
6, More than 3500 square meters of office and factory area
WELCOME TO INQUIRE US FOR ANY PRODUCTS!
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
