Product Details:
|
| LCD Screen: | 32'' | Interactive Mode: | Touch |
|---|---|---|---|
| Resolution: | 1920*1080 | 4G Network: | Optional |
| Contrast: | 1400:1 | SCREEN Bright: | 450 Cd/m2 |
| Screen Proportion: | 16:9 | OTA: | Support |
| High Light: | vertical digital signage display,interactive digital display screens |
||

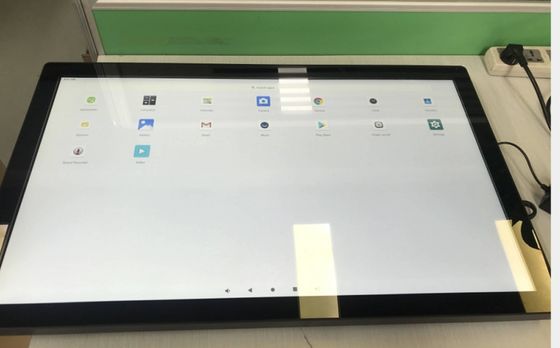

32 inch vertical video player LCD digital signage Display totem lcd advertising player from Sunchip
Floor standing digital signage:
| 1. Videos switch with no pause. ( seamless switching ) | ||
| 2. with 8GB internal memory, updating contents automatically by USB. | ||
| 3. Rotating vidoes automatically. | ||
| 4. Adopts high transparent tempered glass (2-6 mm ) as protection layer toprevent screen from being broken or distorted. | ||
| 5. Support IR Remote controller, user can use remote controller to operate the whole device. | ||
| 6. Build-in high quality stereo speakers. Amplifier / 3.5mm audio jack is optional. | ||
| 7.Playing circles automatically when powers on . | ||
| 8..Allowing memory of breakpoint/AD management system. |
SPECIFICATIONS
Hardware:
| CPU | Rockchip RK3288 Cortex-A17 Quad core GPU Mali-T764 |
| Frequency | 1.8 GHz |
| RAM | LPDDR3 2G/4G optional |
| ROM | EMMC 8GB/16G/32G/64G optional default: 8GB |
| Display interface | LVDS (single way,6 bit dual-way, 8 bit dual-way), Resolution max 1920x1080, support 7"-84" display |
| EDP interface, Resolution max 4K | |
| Screen voltage | Support 3.3V/5V/12V(optional) |
| Touch Screen |
I2C interface (support resistive touch, capacitive touch) Support USB IR multi touch, sonic multi touch, optical multi touch |
| Network | RJ45 interface, ethernet 10/100/1000M |
| Wi-Fi 802.11b/g/n, BT4.0 | |
| Support 4G LTE | |
| Image rotation | Support 0°, 90°, 180°, 270°, manual control or automatic, gravity (optional) |
| RTC | Built in internal battery for Real time clock |
| interfaces | Support MIPI camera, max 5MP |
| Support USB camera, max 2MP | |
| 6*USB HOST (Support USB camera @500w, USB printer, USB stick, mouse, keyboard, standard USB peripherals) | |
| Serial ports x 3(1*UART+2*UART or RS232), support external devices (NFC module, printer, card reader etc.) | |
| 6*IO | |
| TF card slot | |
| D classamplifier,5W*2 8R | |
| support microphone | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP format |
| Video | Support H.264, MPEG2, VP6, VP8, MVC, 2160P@24FPS decoding. on-line video such as YouTube, max support 4K,HTML5 playback,Flash10.1 playback |
| image | Support JPG,BMP,PNG etc. picture formats, browse, orientation, slides, magnify |
| Power supply | input:AC100-240V.50-60HZ, output: DC12V, 3A |
Software:
| OS | Android 5.1 or above |
| Basic software functions | Web browsing, web chat, e-mail, e-books, and resource managers |
| Sound mode | Clock, alarm clock, calculator, recording |
| Language | Multi language |
| Recording | Support MP3, WMA, 3gpp, Amr, etc., the system comes with an Amr format |
| Tool | Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Note | |
| Recording | |
| Document | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input methods | Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
| Internet | Browser -Chrome Lite |
| Gmail | |
| OS management | APK Installer |
| Original eco-Android system, open root privileges, can be customized product development | |
| Real-time remote monitoring, system crash recovery automatically, 7 * 24 hours unattended | |
| System setting | |
| Global time | |
| Support OTA remote upgrade |
Contents Management Software (CMS)
CMS is one of the most popular digital signage online management software which allows people quickly and easily to manage centrally controlled network of LCD advertising screens. And CMS can be hosted on On-Premise and Cloud Sever running 24/7 no maintenance hassle.
All of our digital signage products including wall mounted advertising displays, floor standing digital signage kiosks, digital signage media players., etc can be remotely online managed via CMS system. CMS supports remote control, screen layouts edit, playlist scheduling, multi-accounts management, versatile media format including image, video, audio, scrolling message, web page, streaming., etc. We have numerous of clients from all over the world who are using our CMS system, And, now thousands of digital signage players /advertising displays / digital signage totems are working with our CMS software globally.
| Features |
| 1. Application fields:public places ,for example,shopping mall, restaurant,airport, square, commercial buidings,etc. |
| 2. Outer shell is made of extra good quality metal material and tempered glass. |
| 3. Support split screen, user can split screens freely by software. |
| 4. Videos switch with no pause. ( seamless switching ) |
| 5. with 8GB internal memory, updating contents automatically by USB. |
| 6. Rotating videos automatically. |
| 7. Adopts high transparent tempered glass (2-6 mm ) as protection layer toprevent screen from being broken or distorted. |
| 8. Support IR Remote controller, user can use remote controller to operate the whole device. |
| 9. Build-in high quality stereo speakers. Amplifier / 3.5mm audio jack is optional. |
| 10. Playing circles automatically when powers on . |
|
11. Allowing memory of breakpoint/AD management system. |
PACKAGING DETAILS
1, Packaging: film, foam and wooden case (international standard packaging), suitable for export.
2, Lead time: in 1 week for sample order, about 5 weeks for large order.
Our Services:
1) Original guarantee; 2) Competitive prices;
3) Offer 12 months of warranty; 4) Stable supply at least 3-5years;
5) Any question will be reply in 24 hours
OFFICE AND FACTORY
SUNCHIP: Digital Signage manufacturer in Shenzhen, China.
Our main products include Android ARM Board, Floor Standing Display, Wall Mounted Display, Stretched LCD Display, Open Frame Display and Android Media Player Advertising Box.
LOOKING FORWARD TO YOUR INQUIRY AND KIND COOPERATIONS!
WELCOME TO INQUIRE ME~
WELCOME TO CONTACT US!
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
