Product Details:
|
| CPU: | RK3328 | Main Frequency: | 1.5GHz |
|---|---|---|---|
| Operating System: | Android 7.1 | Capacitive Touch: | Support |
| Infrared Touch: | Support | Network Interfaces: | Ethernet, Wireless Wifi, Bluetooth |
| Screen Voltage: | Support 3.3V/5V/12V Optional | RAM: | 1GB, 2GB Optional |
| ROM: | 8GB, 16GB, 32GB, 64GB Optional | Warranty: | 1 Year |
| Model Number: | AD-B01-RK3328 | Application: | Digital Signage, Advertising Display, Kiosk, POS Etc. |
| Resolution: | 1920*1080 | Certificate: | CE, FCC, ROHS |
| Graphics Card Type: | Integrated | Memory Type: | DDR3 |
| Products Status: | New | Socket Type: | SocketA |
| Package: | Yes | ||
| High Light: | Android 7.1 Digital Signage Player Box,1.5GHz Digital Signage Player Box,1.5GHz digital signage video player |
||

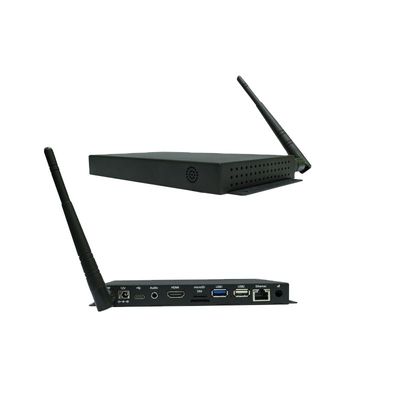

Android 7.1 HD Digital Signage Player Box For Lcd Advertising Display
Overview:
Multimedia advertising player boxes are mainly used in catering chain stores, government units, supermarkets and other public places, and their applications are very extensive. Touchtop advertising player boxes currently support 1920*1080P and support 4K high-definition screen display. The front end mainly uses HD signals. The input is connected to the LCD TV, LED display, and LCD splicing screen, so that the front-end machine can be managed and controlled remotely through the computer background.
Feature:
1. Can split screen to play multiple different screens
2. Support rolling subtitle playback
3. Support streaming media live broadcast, support timing playback, insert playback and other functions
4. Support real-time capture of web data, support timing transmission
5. Support remote management function, Grouping and authority management
6. Support remote upgrade.
Parameters
| Model No | AD-0130- 3328 / B01 | |||||||||||||
| System | CPU | RK3328 quad-core Cortex-A53, clocked up to 1.5GHz GPU Mali-450MP2 | ||||||||||||
| RAM | 1GB/2GB (optional) | |||||||||||||
| Memory | 8GB/16GB/32GB(optional) | |||||||||||||
| Operating system | Android 6.0 | |||||||||||||
| Network | WiFi | 802.11 a/b/g/n_2.4G (802.11 a/b/g/n/ac_5G optional) | ||||||||||||
| Mobile network | Support 3G,4G(optional) | |||||||||||||
| Bluetooth | Bluetooth 4.0 | |||||||||||||
| Ethernet | 10M/100M Ethernet | |||||||||||||
| Interactive mode | Interactive mode | Support infrared remote control, support external expansion | ||||||||||||
| Interface | USB interface*2 | Support USB 2.0(1) & USB 3.0(1) | ||||||||||||
| TYPE C interface | TYPE C interface | |||||||||||||
| DC | DC power 12V input | |||||||||||||
| TF card | Maximum support 64GB | |||||||||||||
| HD | Support HDMI output Support 4K 60FPS frame rate | |||||||||||||
| RJ45 | Ethernet port | |||||||||||||
| Headset | 3.5mm stereo headphone output | |||||||||||||
| Fiber output | Support fiber output | |||||||||||||
| Speaker output | Support 8 ohm 5W speaker dual channel output interface | |||||||||||||
| LED light | Support extended power LED indicator (optional) | |||||||||||||
| Serial port expansion | Support serial port expansion interface *5 (optional) | |||||||||||||
| Support CAN interface | Support CAN interface expansion interface (optional) | |||||||||||||
| Media playback | Video format | MPEG-1,MPEG-2,MPEG-4,H.264,H.265,VC1,VP8,4K VP9,4K 10bits H265/H264,HDR10,HLG HDR,Maximum support 3840x2160 | ||||||||||||
| Audio format | MP3,WMA,WAV, APE, FLAC, OGG,M4A,3GPP format | |||||||||||||
| Text processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT | |||||||||||||
| Ebook | PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 | |||||||||||||
| Image Format | JPG,BMP,PNG | |||||||||||||
| System Management | APK install | APK installer | ||||||||||||
| Root permission | Original Android system, open root permissions, product customization development | |||||||||||||
| Remote control | Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended | |||||||||||||
| OTA upgrade | Support OTA remote upgrade | |||||||||||||
| Accessory | Adapter | Power adapter 12V/2A | ||||||||||||
| User's Guide | Standard | |||||||||||||
| Warranty Card | Standard | |||||||||||||
| Product size, unit:mm | ||||||||||||||
| Product size | colour box size | Carton pcs/CTN | ||||||||||||
| L | W | H | L | W | H | L | W | H | ||||||
| 195 | 100 | 20 | ||||||||||||
Product images
Shenzhen Sunchip Technology Co., LTD
Established in 2011, SUNCHIP is a high-tech engineering company specialized in designing and manufacturing Digital signage, Embedded digital signage, ARM board and Andriod-based customized products, which are compliant with CE, FCC and RoHS standards.
SUNCHIP has a long histroy of OEM and ODM service to many branded customers. With the strong R&D team, intelligent robot production line and strict QC and QA members, SUNCHIP is a technology-leading ODM factory.With more than 100 experienced R&D engineers' hard working, SUNCHIP have mastered a whole set solution of high-definition video encoding&decoding developing and mass production technology.
SUNCHIP is the strategic partner of Rochchip, Intel, Amlogic, Samsung and Allwinner, so we always have a steady supply of reliable chipsets and unlimited technical support from the partners.
FAQ
1) Q: Is SUNCHIP a factory or simply a trading company?
A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.
2) Q: What payment methods are available to me?
A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.
3) Q: How long is the warranty time?
A: 1 Year.
4) Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.
5) Q: Do you give any discounts ?
A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.
6) Q: I would like to add my company logo on your products, is this possible?
A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.
Contact Person: Juli Wu
Tel: 15889658078
