Product Details:
|
| Solution:: | RK3288 | Panel:: | 10.1'' LCD CTP |
|---|---|---|---|
| Network:: | WIFI, Bluetooth, Ethernet, 4G Mobile LTE, Optional | POE:: | Optional |
| Front Camera:: | Optional | HD: | Support Optional 5 |
| High Light: | RK3399 Digital Signage Touch Display,RK3288 Digital Signage Touch Display,13.3 Inch digital interactive displays |
||

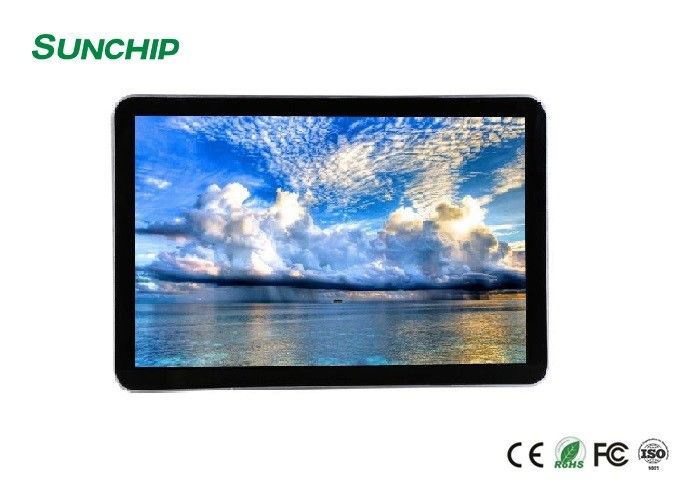

13.3 Inch RK3288 RK3399 Digital Signage Touch Display Support 4G
Specification Of LCD Digital Signage
| System | CPU | RK3288 quad-core Cortex-A17@1.8G GPU Mali T764 | ||||||||||||
| RAM | 2GB/4GB (optional) | |||||||||||||
| Internal memory | 8GB/16GB/32GB(optional) | |||||||||||||
| Operation system | Android 6.0 | |||||||||||||
| Touch screen | 10 points Capacitive touch | |||||||||||||
| Display | Panel | 10.1" IPS Screen | ||||||||||||
| Resolution | 1280*800 | |||||||||||||
| Contrast ratio | 800 | |||||||||||||
| Luminance | 300cd/m2 | |||||||||||||
| Aspect Ratio | 16:10 | |||||||||||||
| Network | RJ45 | RJ45, support 10/100/1000M Ethernet ,support POE(optional) | ||||||||||||
| WiFi | 802.11b/g/n | |||||||||||||
| Bluetooth | Bluetooth 4.0 | |||||||||||||
| Mobile Network | Support 4G(Optional) | |||||||||||||
| interface | USB host | USB host*3 | ||||||||||||
| Micro USB | Micro USB*1 | |||||||||||||
| DC | DC 12V input | |||||||||||||
| SD Card | Support SD Card | |||||||||||||
| HD | Support HD output (optional) | |||||||||||||
| Speaker | 2W*8ᾨ*2 | |||||||||||||
| MicroPhone | 3.5mm stero output | |||||||||||||
| Media Player | Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,H.265,VC1,VP8,RV etc.,support max 3840x2160 | ||||||||||||
| Audio format | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format | |||||||||||||
| Image format | support JPG,BMP,PNG format(Browse and support rotation/slideshow/image zoom) | |||||||||||||
| Others | Camera | optional front camera 200/500W(Supports horizontal and vertical assembly) | ||||||||||||
| G-Sensor | Support 0° 90° 180° 270° manual automatic rotation | |||||||||||||
| OSD Language | Multi-language | |||||||||||||
| Accessories | Adapter | Adapter,12V/2A | ||||||||||||
| Warranty card | Standard | |
||||||||||||
Quick Detail Of LCD Digital Signage
1, 10.1'', 13.3'', 15.6'', 18.5'', 21.5'', 23.8'', 27'', 32'', 43'', 49'', 55'', etc., are available.
2, Sunchip supports finished product of Digital Signage, also suports Android board+LCD panel.
3, Solution(CPU) is optional.
4, RAM/ROM is optional.
5, Touch function is optional.
6, POE is optional.
7, 4G LTE is optional.
8, G-Sensor is available.
9, Front camera is optional.
10, CMS system is available.
