Product Details:
|
| Solution: | RK3288 Quad-core | LCD Panel: | 21.5'' |
|---|---|---|---|
| Resolution: | 1920*1080 | Touch: | Optional |
| Mobile Network: | 4G Optional | OS: | Android 6.0 |
| RAM: | 2GB/4GB (optional) | ROM: | 8GB/16GB/32GB(optional) |

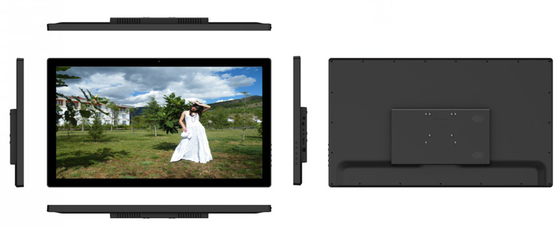

21.5" full hd lcd advertising playey restaurant signage Display Wall Mounted Digital Signage Electronic Menu Board 4G
Model NO.: AD-2105''-RK3288
Main Functions for LCD Advertising Display
1. Free standing design and metal housing; free instillation.
2. Industrial-grade design, heavy-duty build for non-stop loop-playing video and picture 24/7/365.
3. Scrolling Text Message and Play Log functions.
4. Upload contents to the memory card by one-step inserting an USB flash drive; no need to pull out the memory card; no need to use a laptop.
5. Video and picture playing can be mixed.
6. Timer: the player powers on / off automatically every day at your pre-set time.
7. Support CMS.
8. No DVD-style mechanical movement, hence more durable and suitable for long-hour advertising playing.
9. With full HD 21.5 inch (16:9) TFT LCD screen, plays from USB flash drive.
Key features
1. Industrial-grade design, heavy-duty built for non-stop loop-playing 24-7-365.
2. Automatically upload contentsto player by simply inserting an USB drive.
Contents Management Software (CMS) for LCD Digital Signage Display
CMS is one of the most popular digital signage online management software which allows people quickly and easily to manage centrally controlled network of LCD advertising screens. And CMS can be hosted on On-Premise and Cloud Sever running 24/7 no maintenance hassle.
All of our digital signage products including wall mounted advertising displays, floor standing digital signage kiosks, digital signage media players., etc can be remotely online managed via CMS system. CMS supports remote control, screen layouts edit, playlist scheduling, multi-accounts management, versatile media format including image, video, audio, scrolling message, web page, streaming and live tv feeds., etc. We have numerous of clients from all over the world who are using our CMS system, And, now thousands of digital signage players /advertising displays / digital signage totems are working with our CMS software globally.
Specifications:
| Model No.: AD-21.5''-RK3288 | RK3288 Quad-core Android all-in-one advertising machine(21.5'' wall mount) | |||||
| Hardware Spec | ||||||
| System | CPU&GPU | RK3288 quad-core Cortex-A17@1.8G GPU Mali T764 | ||||
| RAM | 2GB/4GB (optional) | |||||
| Memory | 8GB/16GB/32GB(optional) | |||||
| Operating system | Android 5.1/ 6.0-10.0 | |||||
| Interactive mode | infrared touch | Optional | ||||
| ten-points capacitive touch | ||||||
| No-touch/infrared remote control | ||||||
| Display | LCD Screen | 43'' | ||||
| Resolution | 1920*1080 | |||||
| Contrast Ratio | 1200:1 | |||||
| Screen brightness | 450 cd/m2 | |||||
| Screen proportion | 16:9 | |||||
| Network | WiFi | 802.11 b/g/n_2.4G ( support 5G optional) | ||||
| Mobile network | Support 4G(optional) | |||||
| Bluetooth | Bluetooth 4.0 | |||||
| Ethernet | 10M/100M/1000M Ethernet | |||||
| Interface | ||||||
| Interface | USB interface*2 | Support USB host*2 | ||||
| USB_OTG | USB_OTG*1 | |||||
| AC | AC 100V-240V (50HZ-60HZ) | |||||
| TF card | Maximum support 128GB | |||||
| HD | Support HD output Support 4K 60FPS frame rate | |||||
| RJ45 | 10/100/1000M Ethernet port | |||||
| Headset | 3.5mm stereo headphone output | |||||
| Speaker output | Support 8 ohm 3W speaker dual channel output interface | |||||
| Buttons/Keys | Buttons/Keys | defaulted none | ||||
| Media Parameter | ||||||
| Media Playback | Video format | MPEG-1,MPEG-2,MPEG-4,H.264,H.265,VC1,VP8,4K VP9,4K 10bits H265/H264,HDR10,HLG HDR,Maximum support 3840x2160 | ||||
| Audio format | MP3,WMA,WAV, APE, FLAC, OGG,M4A,3GPP format | |||||
| Text processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT | |||||
| Ebook | PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 | |||||
| Image Format | JPG,BMP,PNG | |||||
| System Management | ||||||
| System Management | APK install | APK installer | ||||
| Root permission | Original Android system, open root permissions, product customization development | |||||
| Remote control | Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended | |||||
| OTA upgrade | Support OTA remote upgrade | |||||
| Accessories | ||||||
| Accessories | Adapter | Available standard | ||||
| User's Guide | Standard | |||||
| Warranty Card | Standard | |||||
| Size(unit:mm) | ||||||
| Product size(L*W*H) | 635*430*1777.78 | |||||
| colour box size(L*W*H) | ||||||
| Carton size(PCS/CTN)(L*W*H) | ||||||
| Others Parameters | ||||||
| Camera | the front camera 200W/500W(Optional) | |||||
| Recording | Support high-quality recording function (optional) | |||||
| OSD Language | Multi-language OSD Operation | |||||
Sunchip has become the ODM / OEM partner of a number of world-class companies. Our products have been exported to over eighty worldwide countries.We do the best we can consistently to provide excellent quality products and one-stop services for all customers.
We are looking forward to cooperating, developing and growing with you sincerely.
PACKAGING DETAILS for LCD Digital Signage Display
1, Packaging: film, foam and wooden case (international standard packaging), suitable for export.
2, Lead time: in 1 week for sample order, about 5 weeks for large order.
Our Services:
1) Original guarantee; 2) Competitive prices;
3) Offer 12 months of warranty; 4) Stable supply at least 3-5years;
5) Any question will be reply in 24 hours
SUNCHIP mainly manufactures:

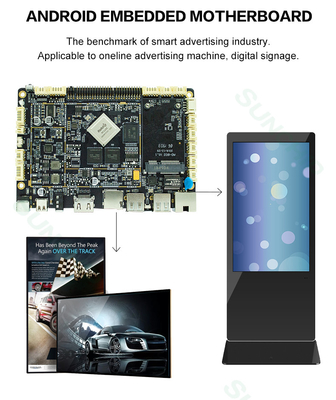

1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
