Product Details:
|
| Product Name: | Open Frame LCD Display | Resolution: | 1280*800 |
|---|---|---|---|
| Material: | Metal | CTP: | Touch Screen Optional |
| USB: | YES | 4G: | YES |
| Installation: | Wall Mounted, Embedded |

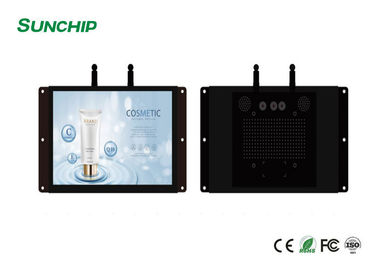

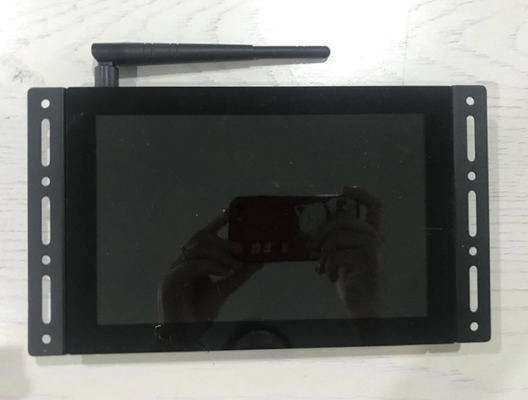

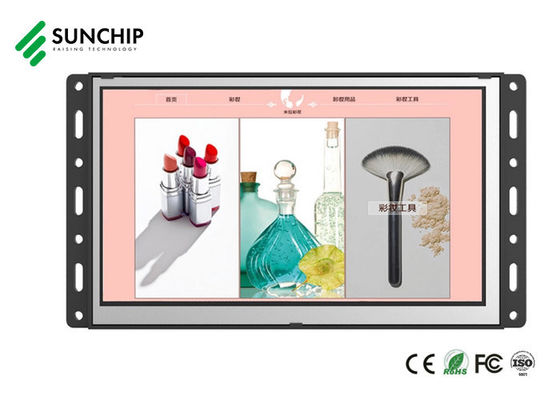

10.1 Inch Open Frame LCD touch screen Display with RK3288 RK3399 For elevator and Shopping mall advertisement
10.1 Inch High Brightness Open Frame Monitor Player Advertising Display
Open Frame LCD Monitor 10.1 inch digital signage player advertising display from ADW SUNCHIP
Characteristics of Open Frame LCD Monitor:
Users can choose from a variety of sizes.
The luminance can be customized according to working environments.
Infrared touch and capacitive touch can be chosen.
DC supply and AC supply can be chosen.
The exoteric structure is suitable for just about all equipment on the market, from gambling equipment to video game machines and everything in between.
Closed and exoteric structure can be chosen.

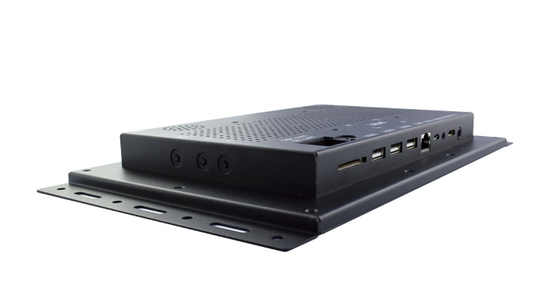

Side mounting support
Wall-hanging, side mounting
Model No: AD-P1030-RK3399
(AD-B03 ANDROID BOARD)
Description:
The open frame monitor is suitable for most embedded equipment, including game machines, inquiry equipment, gambling equipment and more.
1. Ultra-slim design,convenient use,delicate appearance.
2. Industrial A+ grade LCD panel
3. High contrast,High brightness,vivid image layout,bets details performance.
4. Auto eliminate blur function,long life span.
5. Auto adjust VGA image reproduction rate.
6. Multiple date-image adjustment circuit,low image distortion.
7. Intelligence temperature control fan design,green and quiet.
8. Wide visual angle 178°,aspect ratio 4:3
9. Rich signal input,output interfaces,adapted in the different environments.
10. Appling the latest 3D digital image decode chipset,the latest DNR,image clear,clean and vivid.
11. Intensive the IR receiver,support the IR remote to modify the monitor parameters.
12. Build-in stable power,low consumption,long life span>60000hours
A. AD board is industrial grade with wide operating temperature from -10℃ to 60℃
B. original Sumsang/LG/BOE etc. lcd panel,at least 50.000 life span
C. Multi-touch available(Resistive/ Capacitive/IR)
D. Any customized service
E. 10.1" LCD panel with resolution 1280 x 800
F. LED-backlit panel technology
G. Easy to Mount Open Frame,Rugged construction against external impact, metal chassis
H. VESA Mounting Hole Pattern
I. OSD buttons can prevent unnecessary setting changes
J. Complete custom design/solution
Perfectly suitable for kiosks, ATM, POS, marline, military, medical, transportation, Avionics, industrial automation, gaming, digital entertainment display and outdoor application.
Product Details:
| System | CPU | RK3399 dual core Cortex-A72+quad core Cortex-A53,GPU ARM Mali-T860MP4 | ||||||||||||
| RAM | 4GB/8GB(optional) | |||||||||||||
| Internal memory | 16GB/32GB/64GB(optional) | |||||||||||||
| Operation system | Android 7.1 (Linux optional) | |||||||||||||
| Touch screen | 10 point capacitive touch(optional) | |||||||||||||
| Display | Panel | 10.1" | ||||||||||||
| Resolution | 800*1280 | |||||||||||||
| Luminance | 700cd/㎡ | |||||||||||||
| Aspect Ratio | 16:10 | |||||||||||||
| Network | WiFi | 802.11b/g/n | ||||||||||||
| Mobile network | Support full Netcom 4G (optional) | |||||||||||||
| Buletooth | Bluetooth 4.1 | |||||||||||||
| Ethernet | 10M/100M/1000M Ethernet | |||||||||||||
| Interface | USB interface | Support USB2.0 host*1 | ||||||||||||
| Micro USB | Support USB3.0 host*1 | |||||||||||||
| Type-c interface | Type-c*1 | |||||||||||||
| DC | DC power 12V input | |||||||||||||
| TF card | Maximum support 64GB | |||||||||||||
| Screen interface | EDP screen interface_2K output / LVDS screen interface 1080P output(optional) | |||||||||||||
| speaker | 8Ω*5W * 2(optional) | |||||||||||||
| UART | UART2*1(optional) | |||||||||||||
| IR Remote Control | Support infrared remote control | |||||||||||||
| RJ45 | Ethernet port | |||||||||||||
| Headset | 3.5mm stereo headphone output | |||||||||||||
Sunchip was established in 2012, has more than 3200 square meters of factory and office.
Has large R&D ability, and we got so many CE, FCC and ROHS certificates on a lot of products, and already passed ISO international quality system certification I S O 9 0 0 1/ MFi.
We have many branded customers from overseas, such as Amazon, TTK, Beck, Apple, SONY, Rockchip, ......
Main products include Android Embedded Board, Android Media Player BOX, Stretched LCD Display, Open Frame LCD Display and other types of Digital Signage.
Welcome to contact Sunchip.
Contact Person: Juli Wu
Tel: 15889658078
