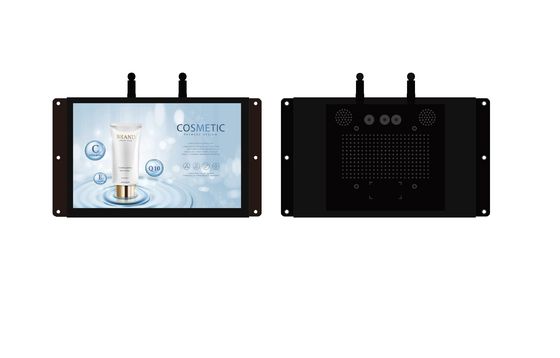

10.1 Inch LCD Open Frame Digital Signage Touch Screen For Shopping Mall

10.1 Inch LCD Open Frame Digital Signage Touch Screen For Shopping Mall
10.1 Inch LCD Open Frame Digital Signage Touch Screen For Shopping Mall 10.1 Inch LCD Open Frame Digital Signage Touch Screen For Shopping Mall 10.1 Inch LCD Open Frame Digital Signage Touch Screen For Shopping Mall 10.1 Inch LCD Open Frame Digital Signage Touch Screen For Shopping Mall

Large Image :  10.1 Inch LCD Open Frame Digital Signage Touch Screen For Shopping Mall

Product Details:
Place of Origin: SHENZHEN, CHINA
Brand Name: ADW
Certification: ISO9001, CE, ROHS, FCC
Model Number: AD-P1040-RK3288
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton / Wooden case
Delivery Time: about 30 days
Payment Terms: T/T
Supply Ability: 10000 PCS per Month

10.1 Inch LCD Open Frame Digital Signage Touch Screen For Shopping Mall

Description
LCD Screen: 10.1'' Resolution: 1280*800
RAM: 2GB/4GB(optional) ROM: 8GB/16GB/32GB(optional)
CPU&GPU: RK3288 Quad-core Operating System: Android 6.0 (Linux OS Optional)
Network: WIFI / Ethernet /4G LTE (optional) OTA: Support OTA Upgrade
High Light:

LCD Open Frame Digital Signage

,

10.1 Inch Open Frame Digital Signage

,

Open Frame Shopping Mall Digital Signage

10.1 Inch LCD Open Frame Digital Signage Touch Screen For Shopping Mall





It can display files preset in flash drive and can also display programs online.





Key features

10.1 inch Wall Frameless LCD Panel Open Frame LCD Monitor



  1. Good design, slim, elegant and fashion.
  2. Aluminum bezel, wiredrawing treatment.
  3. Cover-lens for protection
  4. Standard VESA holes and console holes for wall mounting.
  5. Support SD card, USB memory.
  6. Network version support internet and 4G net, can be group managed via net.
  7. Support all video, audio and picture formats.
  8. Optional touchscreen.



Overview:



RK3288 Android integrated board, using Rockchip RK3288 quad-core chip solution, support Android5.1 system. Supports the decoding of the popular audio & video formats and images. Support EDP@4K, dual 8-bit LVDS interface 1920*1080, can drive 7" to 82" display. With HDMI interface, support 4K video playing. The multi interface makes the product in common use and is widely used in intelligent control fields such as advertising machines, all-in-one PC, security, industrial and so on.





SPECIFICATIONS



Model No.:

AD-P1040-RK3288

RK3288 Quad-Core Android 6.0 (Linux OS optional)

-Open Frame Series





Hardware Spec
System CPU&GPU RK3288 Quad-core Cortex-A17@1.8G GPU Mali T764
RAM 2GB/4GB(optional)
Internal Memory 8GB/16GB/32GB(optional)
Operating system Android 6.0 (Linux OS optional)
Touch screen Optional
Display Panel 10.1''
Resolution 1280*800
Contrast ratio 800:1
Screen brightness 300 cd/m2
Aspect Ratio 16:10
Network WiFi 802.11b/g/n (2.4G/5G Optional)
Mobile Network Support 4G LTE (Optional)
Bluetooth Bluetooth 4.0
Ethernet 10M/100/1000M Ethernet





Interface
Interface USB interface Support USB host*2
Type-C USB Type-C USB_OTG*1
(power jack) DC power 12V input
TF card Maximum support 128GB
HD Support HD output
RJ45 Ethernet port
Headset 3.5mm stereo headphone output
Speaker output Support 8 ohm 2W speaker*2
Power connector 6PIN pitch 2.0 built-in power board interface *1 (optional)
GPIO expansion port 4PIN spacing 2.0 GPIO external expansion port *1 (optional)
RS232 interface 4PIN spacing 2.0 RS232 or UART external expansion port *1 (optional)
UART interface 4PIN spacing 2.0 UART external expansion port *1 (optional)
MIC interface 2PIN spacing 2.0 MIC external expansion port *1 (optional)
Infrared remote control Support built-in infrared remote control (optional)
Infrared remote control and LED light support 6PIN spacing 2.0 external expansion port (optional)
USB expansion port 4PIN spacing 2.0 supports USB host external expansion port *3 (optional)
Buttons/Keys Buttons/Keys Vol+, Vol-, Power





Media Parameter
Media Playback Video format H.264,MPEG2, VP6,VP8,MVC etc 2160P@24FPS; Youtube online Videos up to 1080P; HTML5, Flash10.1;
Audio format MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP etc.
Text processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
Ebook   PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2
Image Format JPG,BMP,PNG





System Management
System Management APK install APK installer
Root permission Original Android system, open root permissions, product customization development
Remote control Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended
OTA upgrade Support OTA remote upgrade





Accessories
Accessories Adapter 12V/2A
User's Guide Standard





Size(unit:mm)
Product size(L*W*H) 270*152.8*27.6
colour box size(L*W*H)
Carton size(PCS/CTN)(L*W*H)





Others Parameters
Dual Screens with different Contents Support Dual Screens with different Contents(Optional)
VESA Support 75*75mm VESA
Gravity sensor Support 0°, 90°, 180°, 270° Manual and automatic rotation







PRODUCT SCENARIOS



10.1 Inch LCD Open Frame Digital Signage Touch Screen For Shopping Mall 0





PACKAGING DETAILS



EPE foam x1

carton x1

wooden case x1





OFFICE AND FACTORY





SUNCHIP: Digital Signage manufacturer in Shenzhen, China.



Our main products include Android ARM Board, Floor Standing Display, Wall Mounted Display, Stretched LCD Display, Open Frame Display and Android Media Player Advertising  Box.



Waiting for your kind inquiry anytime~





10.1 Inch LCD Open Frame Digital Signage Touch Screen For Shopping Mall 1

1. Support local area Network/ Wide Area Network, WIFI /3G/ 4G

2. Offer sever for free, easy to use

3. Support 2.5 inch hard disk, USB disk, SD card and CF card

4. Network interface: Internert 10/100m, wireless network: 802.11/G

5. The server can send instant scrolling caption content to the terminal player.

6. Support video, picture and scrolling text to be played in full screen and divided screen.

7. When internet disconnects, the player will play the per-edited content as a single version machine.

8. Pictures and text in different sections can be divided flexibly, video section is user-defined.

9. Support text and picture to be played in scrolling way, support intercut function and timing turning on and off.

10. Various resources can be played, including video, audio file, picture and text.

11. The server can supervise and control all the terminal players in real time.

12. Output interface: CVBS/RCA stereo audio and video.

13. The server can monitor the playlist on the terminal player.

14. The typeface and size of characters can be chosen in text set in interface.

15. Highly secure with a complete and closed system.

16. The client-side maintenance and software can be updated online.

17. Update the broadcast content automatically through internet or by hand.
