Product Details:
|
| CPU: | Rockchip RK3399 Dual Core Cortex-A72+ Quad Core Cortex-A53 CPU | GPU: | ARM Mali-T860MP4 GPU |
|---|---|---|---|
| Panel Size: | 15.6'' | OS: | Android 7.1.2 |
| RAM: | LPDDR4 4G | ROM: | EMMC 8GB/16G/32G/64G Optional (labeled 16GB) |
| Display Interfaces: | LVDS Interface; EDP Interface; | WIFI & BT: | YES |
| LAN: | YES | 4G Network: | 4G PCIE 4G PCIE Interface |
| Image Rotation: | YES | RTC: | YES |
| High Light: | open frame lcd screen,open frame lcd panel |
||

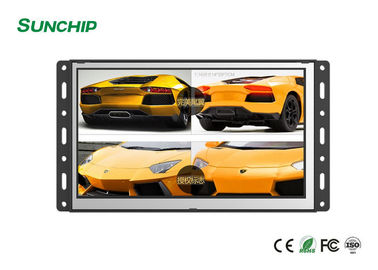

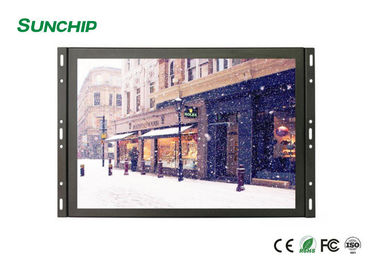

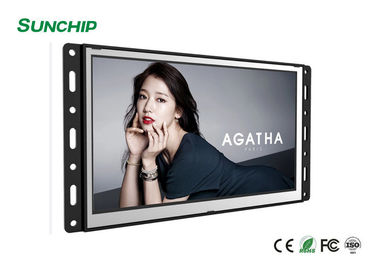

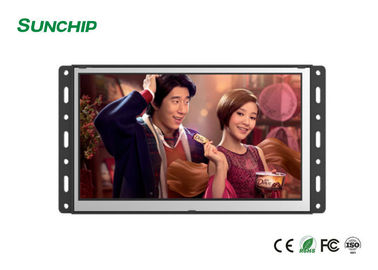

15.6'' Wall Mount LCD Display Open Frame Shelf Edge advertising display Retail Digital Signage supermarket shopping mall
RK3399 Solution:
Intelligent industrial all in one board, using Rockchip RK3399 six-core chip program, support Google Android7.0 or higher system. Powerful computing power. Support H.265 4K video playback. Rich interface and enhanced power management circuit. Suitable for intelligent remote network control: industrial, medical, large advertising, educational video terminals and other equipment.
15.6'' Open Frame: Wall Frameless LCD Panel Open Frame LCD Monitor
Advantages:
1. Open frame structure: with customizable and changeable metal frame to embedded into your furniture, store shelf, showcase, or fit into any object as per your design.
2. With built-in any inches TFT LCD screen, plays from SD card or USB Stick, or remote control system.
3. Our structure engineers can help you with design service as per your special need.
4. Industrial-grade design, heavy-duty built for non-stop loop-playing HD video and picture 24/7/365.
5. Plug & Play, very easy to use
6. Upload contents to the memory card by one-step inserting an USB flash drive; no need to pull out the memory card; no need to use a laptop.
7, With our remote controlling system, user can publish any contents to the devices wherever at home or at the office that far away from the open frame LCD display.
7. Timer function: the player powers on / off automatically every day at your pre-set time.
8. No DVD-style mechanical movement, hence more durable and suitable for long-hour advertising playing.
PRODUCT SPECIFICATIONS:
Basic Hardware Specifications:
| CPU | Rockchip RK3399 dual core Cortex-A72+ quad core Cortex-A53 CPU |
| GPU | ARM Mali-T860MP4 GPU |
| Deposit | LPDDR4 4G |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (labeled 16GB) |
| Display interface | LVDS interface (single, 6-bit dual, 8-bit dual). Supports a maximum resolution of 1920x1080, support 7"-84" display |
| EDP screen interface, support resolution 1920x1080 | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Network | With RJ45 interface, support 10/100/1000 Ethernet |
| Support 4G PCIE interface | |
| With WIFI & BT module, support Wi-Fi 802.11a / b / g / n / ac protocol. Support BT4.0 | |
| Image rotation | Support 0 degree, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function |
| Real Time Clock | External real-time clock power supply battery |
| Interface device | Support USB camera |
| 5 USB HOST | |
| SD card, maximum support 64GB | |
| Class D amplifier: 5W*2 8 ohms, support microphone | |
| 2.0 output | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
| Video | Supports 2160P@24FPS decoding of H.264, MPEG2, VP6, VP8, MVC and other video formats. Online videos such as YouTube, up to 4K, HTML5 video playback, Flash 10.1 playback |
| Picture | Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation / image enlargement |
| Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V/3A |
Basic Software Specifications:
| Operating system | Android 7.1.2 |
| Basic software function | Web browsing, email, e-book, resource manager |
| Sound mode | Clock, alarm clock, calculator, recording |
| Voice support | Multinational voice |
| Recording | Support MP3, WMA format recording |
| Tool | Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather + clock | |
| Recording | |
| File processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input | Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
| Internet | Browser -Chrome Lite |
| Gmail | |
| System Management | APK installer |
| Original Android system, open root permissions, product customization development | |
| Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended | |
| Support OTA remote upgrade | |
| System setting | |
| Google Maps | |
| Global time |
PRODUCT SCENARIOS
PACKAGING DETAILS
Carton *1
Wooden case *1 (if necessary)
