Product Details:
|
| LCD Screen: | 10.1'' | Resolution: | 1280*800 |
|---|---|---|---|
| Operating System: | Android 7.1.2 (Linux OS Optional) | CPU&GPU: | RK3399 Six-core |
| RAM: | 4GB(optional) | ROM: | 16GB/32GB(optional) |
| WiFi: | 802.11b/g/n （2.4G/5G Optional） | Network: | 10M/100M/1000M Ethernet; |
| 4G LTE: | Support 4G(optional) | Bluetooth: | Bluetooth 4.0 |
| High Light: | open frame lcd monitor,open frame lcd panel |
||

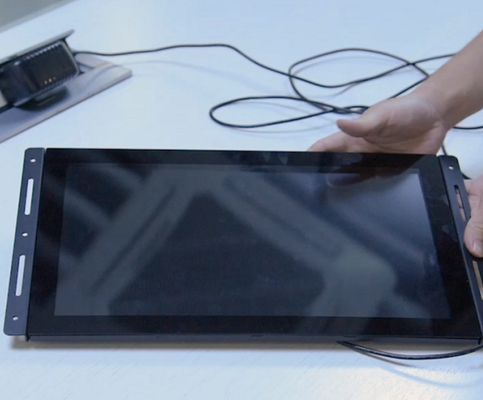

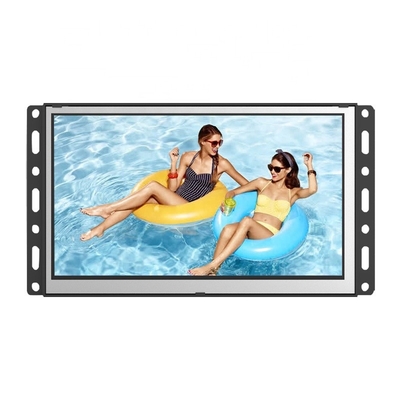

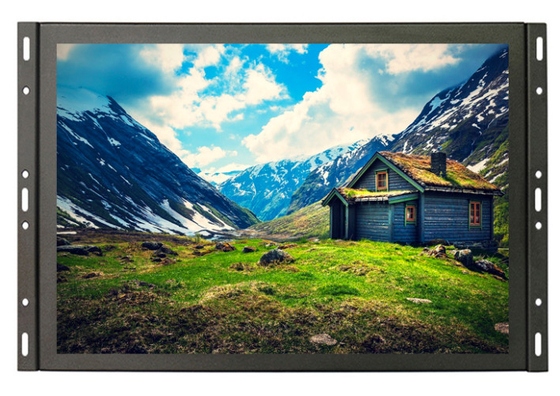

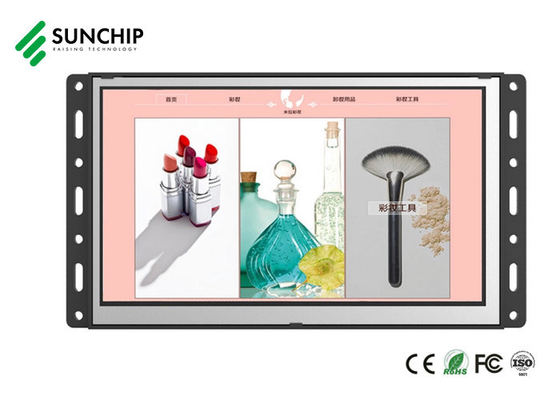

10.1 Inch Ultra Bright Open Frame TFT High Brightness touch Screen LCD Display digital signage support Android Linux
Over View:
Intelligent industrial all in one board, using Rockchip RK3399 six-core chip program, support Google Android7.0 or higher system. Powerful computing power. Support H.265 4K video playback. Rich interface and enhanced power management circuit. Suitable for intelligent remote network control: industrial, medical, large advertising, educational video terminals and other equipment.
HIGHLIGHTS
a. It also supports 7-inch to 84-inch LVDS interface displays (point-to-point full HD display 1920*1080) and EDP interface display.
b. Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.
c. A variety of network interfaces: Ethernet, 4G, WIFI, Bluetooth.
d. Multi-channel USB interface, serial output.
e. Strong anti-electromagnetic interference and electromagnetic compatibility.
Key features:
10.1 inch Wall Frameless LCD Panel Open Frame LCD Monitor
PRODUCT SPECIFICATIONS:
|
Model No.: AD-P1050-RK3399 |
RK3399 Six-Core Android 6.0 (Linux OS optional) -Open Frame Series |
|||||
| Hardware Spec | ||||||
| System | CPU&GPU | Rockchip RK3399 dual core Cortex-A72+ quad core Cortex-A53 CPU | ||||
| RAM | 4GB(optional) | |||||
| Internal Memory | 16GB/32GB(optional) | |||||
| Operating system | Android 7.1.2 (Linux OS optional) | |||||
| Touch screen | Optional | |||||
| Display | Panel | 10.1'' | ||||
| Resolution | 1280*800 | |||||
| Contrast ratio | 800:1 | |||||
| Screen brightness | 300 cd/m2 | |||||
| Aspect Ratio | 16:10 | |||||
| Network | WiFi | 802.11b/g/n (2.4G/5G Optional) | ||||
| Mobile Network | Support 4G LTE (Optional) | |||||
| Bluetooth | Bluetooth 4.0 | |||||
| Ethernet | 10M/100/1000M Ethernet | |||||
| Interface | ||||||
| Interface | USB interface | Support USB host*2 | ||||
| Type-C USB | Type-C USB_OTG*1 | |||||
| (power jack) | DC power 12V input | |||||
| TF card | Maximum support 128GB | |||||
| RJ45 | Ethernet port | |||||
| Headset | 3.5mm stereo headphone output | |||||
| Speaker output | Support 8 ohm 2W speaker*2 | |||||
| Power connector | 6PIN pitch 2.0 built-in power board interface *1 (optional) | |||||
| GPIO expansion port | 4PIN spacing 2.0 GPIO external expansion port *1 (optional) | |||||
| RS232 interface | 4PIN spacing 2.0 RS232 or UART external expansion port *1 (optional) | |||||
| UART interface | 4PIN spacing 2.0 UART external expansion port *1 (optional) | |||||
| MIC interface | 2PIN spacing 2.0 MIC external expansion port *1 (optional) | |||||
| Infrared remote control | Support built-in infrared remote control (optional) | |||||
| Infrared remote control and LED light | support 6PIN spacing 2.0 external expansion port (optional) | |||||
| USB expansion port | 4PIN spacing 2.0 supports USB host external expansion port *3 (optional) | |||||
| Buttons/Keys | Buttons/Keys | Vol+, Vol-, Power | ||||
| Media Parameter | ||||||
| Media Playback | Video format | H.264,MPEG2, VP6,VP8,MVC etc 2160P@24FPS; Youtube online Videos up to 1080P; HTML5, Flash10.1; | ||||
| Audio format | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP etc. | |||||
| Text processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT | |||||
| Ebook | PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 | |||||
| Image Format | JPG,BMP,PNG | |||||
| System Management | ||||||
| System Management | APK install | APK installer | ||||
| Root permission | Original Android system, open root permissions, product customization development | |||||
| Remote control | Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended | |||||
| OTA upgrade | Support OTA remote upgrade | |||||
| Accessories | ||||||
| Accessories | Adapter | 12V/2A | ||||
| User's Guide | Standard | |||||
| Size(unit:mm) | ||||||
| Product size(L*W*H) | 270*152.8*27.6 | |||||
| colour box size(L*W*H) | ||||||
| Carton size(PCS/CTN)(L*W*H) | ||||||
| Others Parameters | ||||||
| Dual Screens with different Contents | Support Dual Screens with different Contents(Optional) | |||||
| VESA | Support 75*75mm VESA | |||||
| Gravity sensor | Support 0°, 90°, 180°, 270° Manual and automatic rotation | |||||
PRODUCT SCENARIOS
PACKAGING DETAILS
EDP foam *1
Carton *1
Wooden case *1 (if necessary)
