RK3566 LCD Advertising Screen Wifi 4G Ultra Thin Metal Open Frame Digital Signage

RK3566 LCD Advertising Screen Wifi 4G Ultra Thin Metal Open Frame Digital Signage
RK3566 LCD Advertising Screen Wifi 4G Ultra Thin Metal Open Frame Digital Signage
RK3566 LCD Advertising Screen Wifi 4G Ultra Thin Metal Open Frame Digital Signage RK3566 LCD Advertising Screen Wifi 4G Ultra Thin Metal Open Frame Digital Signage RK3566 LCD Advertising Screen Wifi 4G Ultra Thin Metal Open Frame Digital Signage RK3566 LCD Advertising Screen Wifi 4G Ultra Thin Metal Open Frame Digital Signage RK3566 LCD Advertising Screen Wifi 4G Ultra Thin Metal Open Frame Digital Signage RK3566 LCD Advertising Screen Wifi 4G Ultra Thin Metal Open Frame Digital Signage RK3566 LCD Advertising Screen Wifi 4G Ultra Thin Metal Open Frame Digital Signage

Large Image :  RK3566 LCD Advertising Screen Wifi 4G Ultra Thin Metal Open Frame Digital Signage

Product Details:
Place of Origin: CHINA
Brand Name: SUNCHIP, ADW
Certification: CE ROHS FCC ISO9001
Model Number: AD-10.1inch
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: $79USD-$299USD
Packaging Details: Carton Box or Wooden Box
Delivery Time: If in-stock, 3-5 days; If out of stock, about 25 days;
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 30,000PCS/Month

RK3566 LCD Advertising Screen Wifi 4G Ultra Thin Metal Open Frame Digital Signage

Description
CPU: RK3566, RK3568, RK3288, RK3399, RK3328, RKPX30, RK3188, RK3128 Etc. OS: Android 4.4/5/6/7/8/9/10/11 Version
Screen Size: 8'', 10.1'', 13.3'', 15.6'', 21.5'' Etc. Optional Application: For Advertising
RAM: 1GB/2GB/4GB ROM: 8GB/16GB/32GB/64GB
WIFI: 2.4G And 5G Optional Bluetooth: 4.0 And 5.0 Optional
Ethernet: 100M And 1000M Optional 4G LTE: Optional
Touch: Optional Brightness: Optional
High Light:

RK3566 LCD Advertising Screen

,

Wifi 4G Open Frame Digital Signage

,

Metal Open Frame Digital Signage





8'' 10.1'' 13.3'' 15.6'' 21.5'' High Quality LCD Advertising Screen Wifi 4G Ultra Thin Open Frame Digital Signage Metal​





Open Frame LCD display signage:

--the housing is metal material;

--metal case design is for heat dissipation;

--have some holes, also for heat dissipation;

--So, clients don’t need to worry about the getting hot

--have WIFI antenna and 4G antenna; (Support WIFI and 4G function)

--on the left and right side, has hole for installation on the wall or somewhere;

--on the bottom case, also has VESA for installation on the wall or somewhere;







Products Description:

System CPU

RK3566, RK3568, RK3288, RK3399,

RK3328, RKPX30, RK3188, RK3128 etc.

RAM 1GB/2GB/4GB(optional)
Internal memory 8GB/16GB/32GB(optional)
Operation system Android 4.4/5/6/7/8/9/10/11 Version
Touch screen 10 point capacitive touch (optional)
Display LCD Panel 8'', 10.1'', 13.3'', 15.6'', 21.5'' etc. optional
Resolution 1280*800, 1920*1080P
Contract Ratio optional
Luminance optional
Aspect Ratio optional
Network WiFi 802.11b/g/n (2.4G/5G WIFI Optional)
Mobile network Support full Netcom 4G (optional)
Buletooth Bluetooth 4.0/5.0 optional
Ethernet 10M/100M or 1000M Ethernet optional
Interface Type-C USB Type-C USB_OTG*1
DC DC power 12V input
SD Card reader Maximum support 128G
HDMI Support HDMI output
Speaker output Support 8 ohm 2W speaker*2
Power connector 6PIN pitch 2.0 built-in power board interface *1 (optional)
GPIO expansion port 4PIN spacing 2.0 GPIO external expansion port *1 (optional)
RS232 interface 4PIN spacing 2.0 RS232 or UART external expansion port *1 (optional)
UART interface 4PIN spacing 2.0 UART external expansion port *1 (optional)
MIC interface 2PIN spacing 2.0 MIC external expansion port *1 (optional)
Infrared remote control; Support built-in infrared remote control (optional)
Infrared remote control and LED light support 6PIN spacing 2.0 external expansion port (optional)
USB expansion port 4PIN spacing 2.0 supports USB host external expansion port *3 (optional)
Key Buttons/Keys Power key, V+, V-;









Media play Video format Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding.
YouTube and other online videos, up to 1080P, HTML5 video playback, Flash 10.1 playback
Audio format MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP etc.
Text processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
E-book PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2
Photo JPG,BMP,PNG

system management
APK install APK installer
Root permission Original ecological Android system, open root permissions, customizable development
Remote control Real-time remote monitoring, system crash self recovery, 7*24 hours unattended
OTA upgrade Support OTA remote upgrades
  Camera Pre 2MP/5MP (default none , optional)
Language Multi-language
Others Dual screen different display Support dual-screen different display function (optional)
VESA interface Support 75*75mmVESA interface
Gravity Sensor Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation
Accessories Adapter Adapter,12V/2A

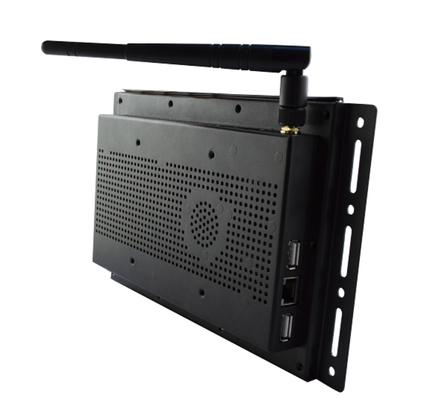

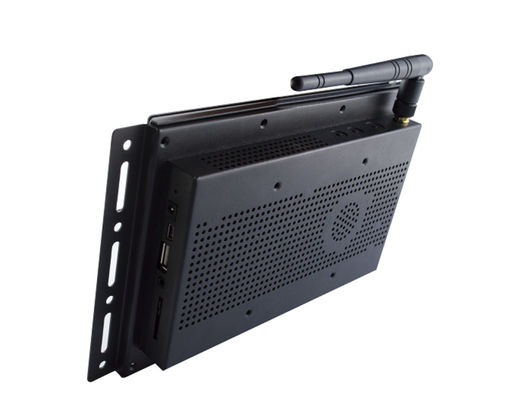

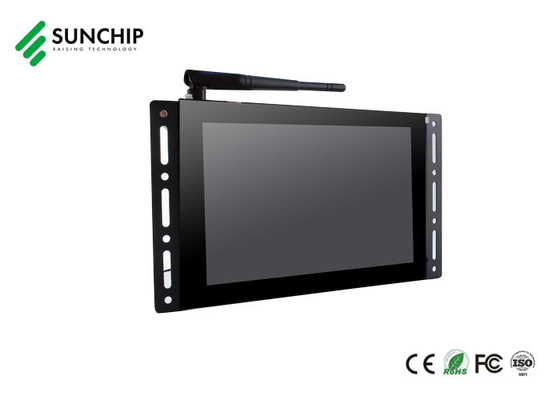

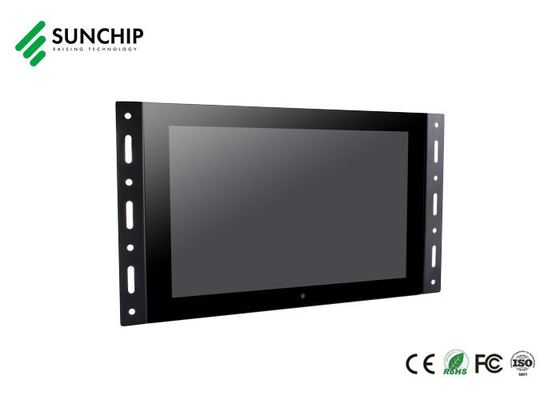

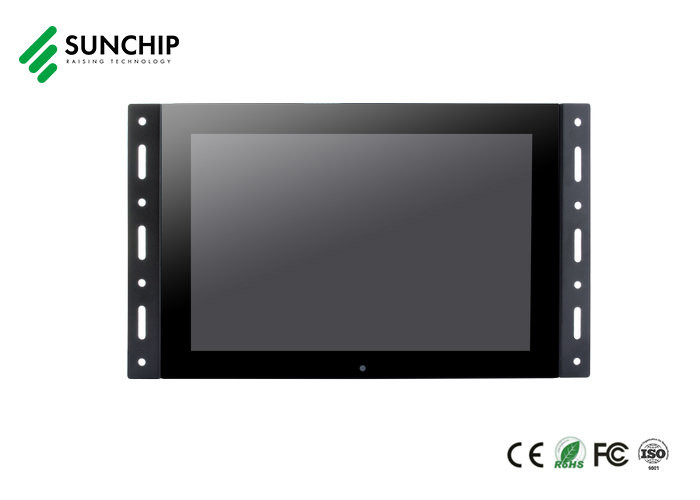

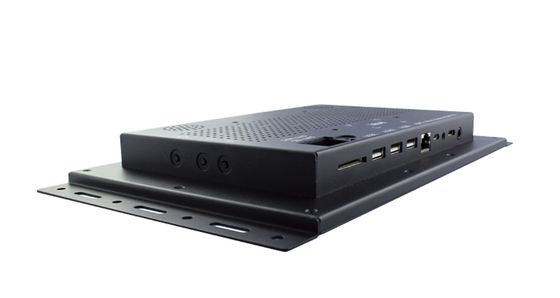

Products Pictures:

RK3566 LCD Advertising Screen Wifi 4G Ultra Thin Metal Open Frame Digital Signage 0RK3566 LCD Advertising Screen Wifi 4G Ultra Thin Metal Open Frame Digital Signage 1







Application Scenarios:

RK3566 LCD Advertising Screen Wifi 4G Ultra Thin Metal Open Frame Digital Signage 2

RK3566 LCD Advertising Screen Wifi 4G Ultra Thin Metal Open Frame Digital Signage 3









Packing & Delivery:

RK3566 LCD Advertising Screen Wifi 4G Ultra Thin Metal Open Frame Digital Signage 4







Why Choose SUNCHIP:



1, More than 10 years of PCBA design and production experience.

2, A R&D team of more than 80 people, including hardware engineers (layout, debugging) and software engineers (drivers, kernels, testing, apk engineers).

ID Design engineer, Mechanical Design engineer, -> Support OEM/ODM.

3, Team of more than 160 people.

4, One-stop service: PCB design, prototype, production, PCBA SMT, testing, shell design, assembly, software customization, QC control, after-sales.

5, Got ISO9001 factory certification.

6, More than 3500 square meters of office and factory area







Sunchip is a software and hardware solution provider, retailer store digital signage display solution provider, and it’s located in Shenzhen, China.



Sunchip has a huge R&D team which more than 80 employees.

They include hardware layout engineer, hardware debugging engineer, ID design engineer, mechanical design engineer, android kernel software engineer, android driver software engineer, apk development engineer, FAE software test engineer, and so on.

So, if our clients choose Sunchip, don’t need to worry about anything, we can provide one-stop service for them.



BTW, Sunchip has more than 3200 square meters of factory and office, totally we have two floors in this building. Recently we plan to extend our office, because more younger people join us, we need more office.



Sunchip also got a lot of certificates, like, CE, ROHS, FCC on many products. Some clients, like from Japan, Korea, Thailand, requested to do TELEC, KC and TISI. We can do all of them.



Sunchip mainly manufactures android embedded board, android media player box, stretched lcd display, open frame lcd display and other types of digital signage.



All of these products are based on Rockchip platform for industrial application.



RK3566 LCD Advertising Screen Wifi 4G Ultra Thin Metal Open Frame Digital Signage 5

RK3566 LCD Advertising Screen Wifi 4G Ultra Thin Metal Open Frame Digital Signage 6



FAQ.:



1. who are we?

We are based in Guangdong, China, started from 2011, there are total about 160-200 people in our office.



2. how can we guarantee quality?

Always sample testing, aging testing before shipping;

Always final Inspection before shipment;



3.what can you buy from us?

AIO Advertising machine, Commercial media box, ARM board;



4. why should you buy from us not from other suppliers?

More than 10 years of R&D and production experience

More than 100 R&D team

Over 3000 square meters' factory space

Processing fully automatic assembly lines and high request working team

Owning CE/ROHS/FCC & national high-tech enterprise and patents



5. what services can we provide?

Accepted Payment Currency: USD, CNY;

Accepted Payment Type: T/T, Credit Card, Western Union, Cash, PayPal;

Language Spoken: English, Chinese

Product Quality: before-sales, after-sales services;





Recommend Products:

RK3566 LCD Advertising Screen Wifi 4G Ultra Thin Metal Open Frame Digital Signage 7



SUNCHIP ARM board Solution list:

RK3588, RK3566, RK3568, RK3399, RK3288, RK3328, RKPX30, RK3188, RK3128 etc.

Display interface: HDMI output, HDMI input, LVDS, EDP, MIPI.

Network optional: WIFI, Bluetooth, Ethernet, 4G, Optical.

RK3566 LCD Advertising Screen Wifi 4G Ultra Thin Metal Open Frame Digital Signage 8

SUNCHIP product list:

1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,

RK3328, RKPX30, RK3188, RK3128 etc.

2, 【4K】Android media player box for digital signage advertising: RK3399, RK3288, RK3328.

3, 【8K】Android Player Box for Industrial-Control Application: RK3588.

4, Stretched lcd Display signage, support ODM.

5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.

6, SKD Kit: Android board + LCD panel with touch or not:

7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.

7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.

8, Embedded touch desk: such as 32inch.

9, Face recognition temperature detection terminal machine: such as 8inch.

[you can also tell us your requirements, so that we advise you a matched solution]
