Product Details:
|
CPU: | RK3566, RK3568, RK3288, RK3399, RK3328, RKPX30, RK3188, RK3128 Etc. | OS: | Android 4.4/5/6/7/8/9/10/11 Version |
---|---|---|---|
Screen Size: | 8'', 10.1'', 13.3'', 15.6'', 21.5'' Etc. Optional | Application: | For Advertising |
RAM: | 1GB/2GB/4GB | ROM: | 8GB/16GB/32GB/64GB |
WIFI: | 2.4G And 5G Optional | Ethernet: | 100M And 1000M Optional |
4G LTE: | Optional | Touch: | Optional |
High Light: | Wall Mounted Open Frame Digital Signage,4G optional LCD Advertising Digital Signage,RK3568 LCD Advertising Player |
Industrial open frame lcd wall mounted advertising player digital signage display touch screen 8'' 10.1'' 13.3'' 15.6'' 21.5'' inches
Products Description:
System | CPU |
RK3566, RK3568, RK3288, RK3399, RK3328, RKPX30, RK3188, RK3128 etc. |
||||||||||||
RAM | 1GB/2GB/4GB(optional) | |||||||||||||
Internal memory | 8GB/16GB/32GB(optional) | |||||||||||||
Operation system | Android 4.4/5/6/7/8/9/10/11 Version | |||||||||||||
Touch screen | 10 point capacitive touch (optional) | |||||||||||||
Display | LCD Panel | 8'', 10.1'', 13.3'', 15.6'', 21.5'' etc. optional | ||||||||||||
Resolution | 1280*800, 1920*1080P | |||||||||||||
Contract Ratio | optional | |||||||||||||
Luminance | optional | |||||||||||||
Aspect Ratio | optional | |||||||||||||
Network | WiFi | 802.11b/g/n (2.4G/5G WIFI Optional) | ||||||||||||
Mobile network | Support full Netcom 4G (optional) | |||||||||||||
Buletooth | Bluetooth 4.0/5.0 optional | |||||||||||||
Ethernet | 10M/100M or 1000M Ethernet optional |
Interface | Type-C USB | Type-C USB_OTG*1 | ||||||||||||
DC | DC power 12V input | |||||||||||||
SD Card reader | Maximum support 128G | |||||||||||||
HDMI | Support HDMI output | |||||||||||||
Speaker output | Support 8 ohm 2W speaker*2 | |||||||||||||
Power connector | 6PIN pitch 2.0 built-in power board interface *1 (optional) | |||||||||||||
GPIO expansion port | 4PIN spacing 2.0 GPIO external expansion port *1 (optional) | |||||||||||||
RS232 interface | 4PIN spacing 2.0 RS232 or UART external expansion port *1 (optional) | |||||||||||||
UART interface | 4PIN spacing 2.0 UART external expansion port *1 (optional) | |||||||||||||
MIC interface | 2PIN spacing 2.0 MIC external expansion port *1 (optional) | |||||||||||||
Infrared remote control; | Support built-in infrared remote control (optional) | |||||||||||||
Infrared remote control and LED light | support 6PIN spacing 2.0 external expansion port (optional) | |||||||||||||
USB expansion port | 4PIN spacing 2.0 supports USB host external expansion port *3 (optional) |
Media play | Video format | Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 1080P, HTML5 video playback, Flash 10.1 playback |
||||||||||||
Audio format | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP etc. | |||||||||||||
Text processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT | |||||||||||||
E-book | PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 | |||||||||||||
Photo | JPG,BMP,PNG | |||||||||||||
system management |
APK install | APK installer | ||||||||||||
Root permission | Original ecological Android system, open root permissions, customizable development | |||||||||||||
Remote control | Real-time remote monitoring, system crash self recovery, 7*24 hours unattended | |||||||||||||
OTA upgrade | Support OTA remote upgrades | |||||||||||||
Camera | Pre 2MP/5MP (default none , optional) | |||||||||||||
Language | Multi-language | |||||||||||||
Others | Dual screen different display | Support dual-screen different display function (optional) | ||||||||||||
VESA interface | Support 75*75mmVESA interface | |||||||||||||
Gravity Sensor | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation | |||||||||||||
Accessories | Adapter | Adapter,12V/2A |
Products Pictures:
Application Scenarios:

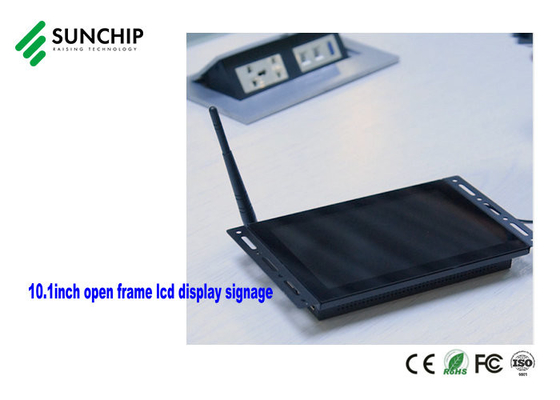

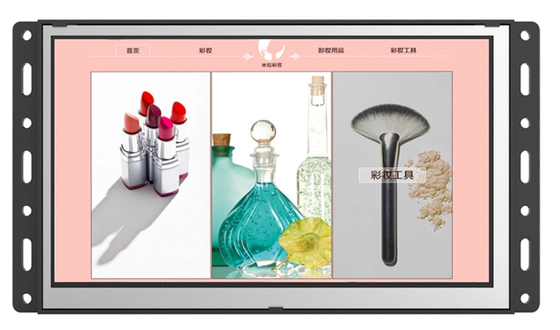

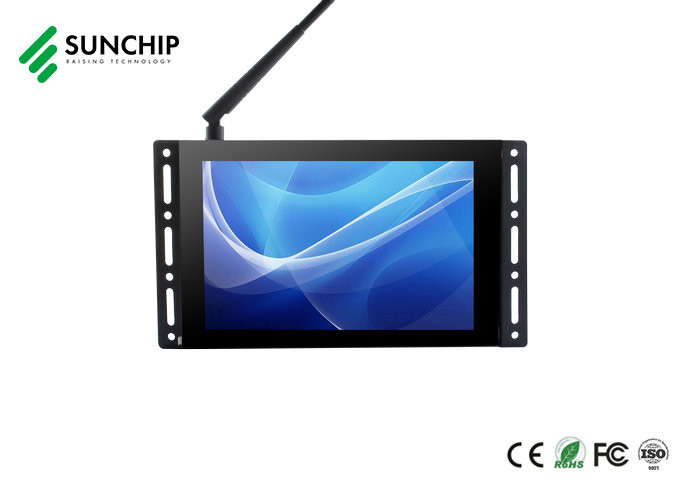

Open Frame LCD display signage:
--the housing is metal material;
--metal case design is for heat dissipation;
--have some holes, also for heat dissipation;
--So, clients don’t need to worry about the getting hot
--have WIFI antenna and 4G antenna; (Support WIFI and 4G function)
--on the left and right side, has hole for installation on the wall or somewhere;
--on the bottom case, also has VESA for installation on the wall or somewhere;

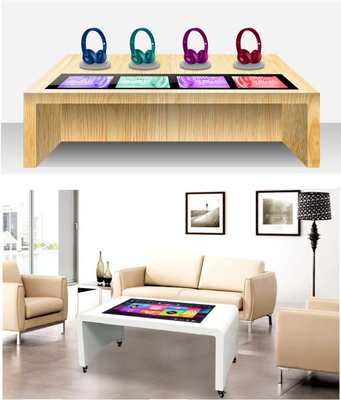

Using Scenarios:
Embedded on wall or desk.
Packing & Delivery:
Why Choose SUNCHIP:
Sunchip is a software and hardware solution provider, retailer store digital signage display solution provider, and it’s located in Shenzhen, China.
Sunchip has a huge R&D team which more than 80 employees.
They include hardware layout engineer, hardware debugging engineer, ID design engineer, mechanical design engineer, android kernel software engineer, android driver software engineer, apk development engineer, FAE software test engineer, and so on.
So, if our clients choose Sunchip, don’t need to worry about anything, we can provide one-stop service for them.
BTW, Sunchip has more than 3200 square meters of factory and office, totally we have two floors in this building. Recently we plan to extend our office, because more younger people join us, we need more office.
Sunchip also got a lot of certificates, like, CE, ROHS, FCC on many products. Some clients, like from Japan, Korea, Thailand, requested to do TELEC, KC and TISI. We can do all of them.
Sunchip mainly manufactures android embedded board, android media player box, stretched lcd display, open frame lcd display and other types of digital signage.
All of these products are based on Rockchip platform for industrial application.
FAQ.:
1. who are we?
We are based in Guangdong, China, started from 2011, there are total about 160-200 people in our office.
2. how can we guarantee quality?
Always sample testing, aging testing before shipping;
Always final Inspection before shipment;
3.what can you buy from us?
AIO Advertising machine, Commercial media box, ARM board;
4. why should you buy from us not from other suppliers?
More than 10 years of R&D and production experience
More than 100 R&D team
Over 3000 square meters' factory space
Processing fully automatic assembly lines and high request working team
Owning CE/ROHS/FCC & national high-tech enterprise and patents
5. what services can we provide?
Accepted Payment Currency: USD, CNY;
Accepted Payment Type: T/T, Credit Card, Western Union, Cash, PayPal;
Language Spoken: English, Chinese
Product Quality: before-sales, after-sales services;
Recommend Products:
SUNCHIP ARM board Solution list:
RK3588, RK3566, RK3568, RK3399, RK3288, RK3328, RKPX30, RK3188, RK3128 etc.
Display interface: HDMI output, HDMI input, LVDS, EDP, MIPI.
Network optional: WIFI, Bluetooth, Ethernet, 4G, Optical.
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
