Product Details:
|
| CPU: | RK3566, RK3568, RK3288, RK3399, RK3328, RKPX30, RK3188, RK3128 Etc. | OS: | Android 4.4/5/6/7/8/9/10/11 Version |
|---|---|---|---|
| Application: | For Advertising， Digital Signage | Screen Size: | 8'', 10.1'', 13.3'', 15.6'', 21.5'' Etc. Optional |
| RAM: | 1GB/2GB/4GB | ROM: | 8GB/16GB/32GB/64GB |
| Touch: | Optional | Ethernet: | 100M And 1000M Optional |
| WIFI: | 2.4G And 5G Optional | Bluetooth: | 4.0 And 5.0 Optional |
| Brightness: | Optional | 4G LTE: | Optional |
| High Light: | RK3288 Interactive Digital Signage Display,Ethernet optional Open Frame LCD Monitor,Advertisement Open Frame LCD Monitor |
||
8'' 10.1'' 13.3'' 15.6'' 21.5'' Open Frame LCD Monitor Interactive Digital Signage Display For Advertisement
Products Description:
| System | CPU |
RK3566, RK3568, RK3288, RK3399, RK3328, RKPX30, RK3188, RK3128 etc. |
||||||||||||
| RAM | 1GB/2GB/4GB(optional) | |||||||||||||
| Internal memory | 8GB/16GB/32GB(optional) | |||||||||||||
| Operation system | Android 4.4/5/6/7/8/9/10/11 Version | |||||||||||||
| Touch screen | 10 point capacitive touch (optional) | |||||||||||||
| Display | LCD Panel | 8'', 10.1'', 13.3'', 15.6'', 21.5'' etc. optional | ||||||||||||
| Resolution | 1280*800, 1920*1080P | |||||||||||||
| Contract Ratio | optional | |||||||||||||
| Luminance | optional | |||||||||||||
| Aspect Ratio | optional | |||||||||||||
| Network | WiFi | 802.11b/g/n (2.4G/5G WIFI Optional) | ||||||||||||
| Mobile network | Support full Netcom 4G (optional) | |||||||||||||
| Buletooth | Bluetooth 4.0/5.0 optional | |||||||||||||
| Ethernet | 10M/100M or 1000M Ethernet optional | |||||||||||||
| Interface | Type-C USB | Type-C USB_OTG*1 | ||||||||||||
| DC | DC power 12V input | |||||||||||||
| SD Card reader | Maximum support 128G | |||||||||||||
| HDMI | Support HDMI output | |||||||||||||
| Speaker output | Support 8 ohm 2W speaker*2 | |||||||||||||
| Power connector | 6PIN pitch 2.0 built-in power board interface *1 (optional) | |||||||||||||
| GPIO expansion port | 4PIN spacing 2.0 GPIO external expansion port *1 (optional) | |||||||||||||
| RS232 interface | 4PIN spacing 2.0 RS232 or UART external expansion port *1 (optional) | |||||||||||||
| UART interface | 4PIN spacing 2.0 UART external expansion port *1 (optional) | |||||||||||||
| MIC interface | 2PIN spacing 2.0 MIC external expansion port *1 (optional) | |||||||||||||
| Infrared remote control; | Support built-in infrared remote control (optional) | |||||||||||||
| Infrared remote control and LED light | support 6PIN spacing 2.0 external expansion port (optional) | |||||||||||||
| USB expansion port | 4PIN spacing 2.0 supports USB host external expansion port *3 (optional) | |||||||||||||
| Key | Buttons/Keys | Power key, V+, V-; | ||||||||||||
| Media play | Video format | Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 1080P, HTML5 video playback, Flash 10.1 playback |
||||||||||||
| Audio format | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP etc. | |||||||||||||
| Text processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT | |||||||||||||
| E-book | PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 | |||||||||||||
| Photo | JPG,BMP,PNG | |||||||||||||
system management |
APK install | APK installer | ||||||||||||
| Root permission | Original ecological Android system, open root permissions, customizable development | |||||||||||||
| Remote control | Real-time remote monitoring, system crash self recovery, 7*24 hours unattended | |||||||||||||
| OTA upgrade |
Support OTA remote upgrades
|
|||||||||||||
| Camera | Pre 2MP/5MP (default none , optional) | |||||||||||||
| Language | Multi-language | |||||||||||||
| Others | Dual screen different display | Support dual-screen different display function (optional) | ||||||||||||
| VESA interface | Support 75*75mmVESA interface | |||||||||||||
| Gravity Sensor | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation | |||||||||||||
| Accessories | Adapter |
Adapter,12V/2A |
||||||||||||

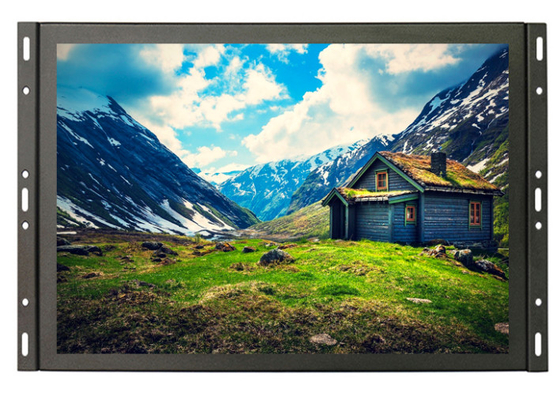

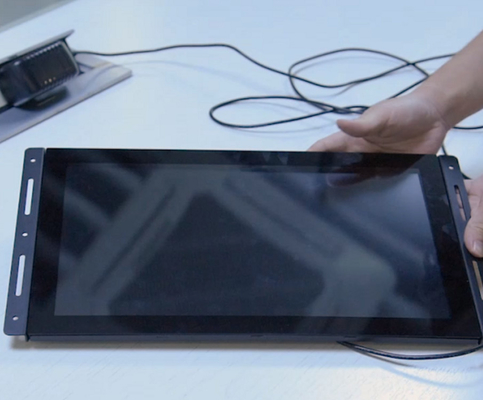

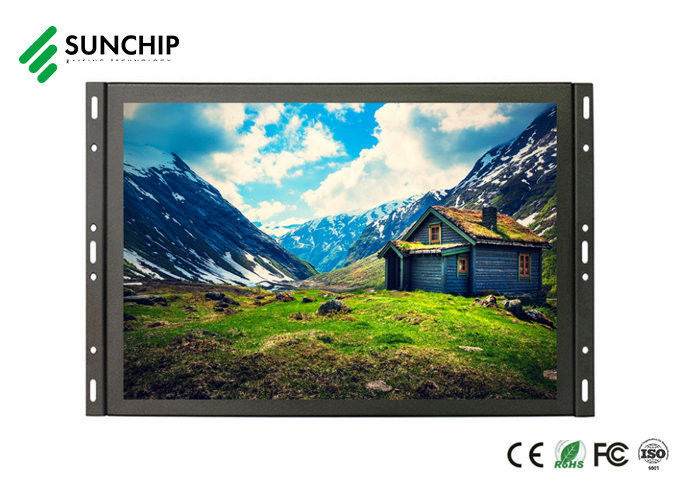

Products Pictures:
Application Scenarios:

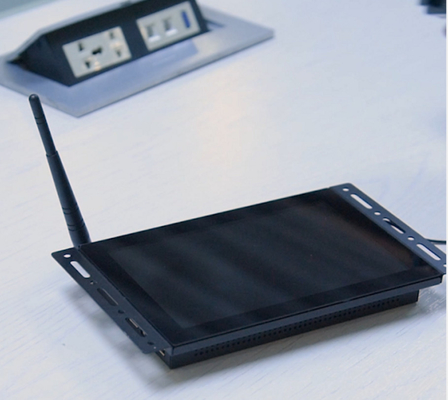

Open Frame LCD display signage:
--the housing is metal material;
--metal case design is for heat dissipation;
--have some holes, also for heat dissipation;
--So, clients don’t need to worry about the getting hot
--have WIFI antenna and 4G antenna; (Support WIFI and 4G function)
--on the left and right side, has hole for installation on the wall or somewhere;
--on the bottom case, also has VESA for installation on the wall or somewhere;
Using Scenarios:
Embedded on wall or desk.
