Product Details:
|
| Application: | For Advertising | CPU: | RK3566, RK3568, RK3288, RK3399, RK3328, RKPX30, RK3188, RK3128 Etc. |
|---|---|---|---|
| RAM: | 1GB/2GB/4GB | ROM: | 8GB/16GB/32GB/64GB |
| OS: | Android 4.4/5/6/7/8/9/10/11 Version | Touch: | Optional |
| Ethernet: | 100M And 1000M Optional | WIFI: | 2.4G And 5G Optional |
| Bluetooth: | 4.0 And 5.0 Optional | Screen Size: | 8'', 10.1'', 13.3'', 15.6'', 21.5'' Etc. Optional |
| Brightness: | Optional | 4G LTE: | Optional |
| High Light: | 21.5'' Open Frame LCD Display,Ethernet Open Frame LCD Display,Ethernet Open Frame LCD Screen |
||

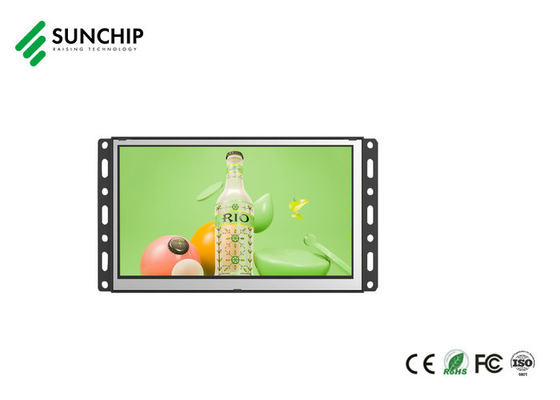

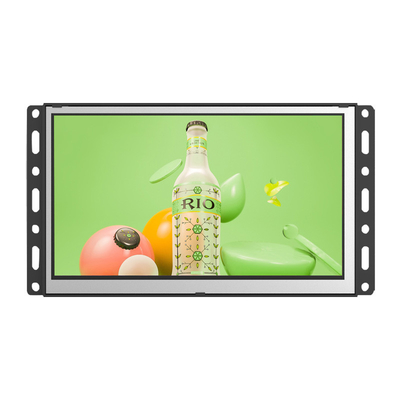

8'' 10.1'' 13.3'' 15.6'' 21.5'' Open Frame Lcd display Screen Monitor Advertising Display for Electronic Devices Stores
Products Description:
| System | CPU |
RK3566, RK3568, RK3288, RK3399, RK3328, RKPX30, RK3188, RK3128 etc. |
||||||||||||
| RAM | 1GB/2GB/4GB(optional) | |||||||||||||
| Internal memory | 8GB/16GB/32GB(optional) | |||||||||||||
| Operation system | Android 4.4/5/6/7/8/9/10/11 Version | |||||||||||||
| Touch screen | 10 point capacitive touch (optional) | |||||||||||||
| Display | LCD Panel | 8'', 10.1'', 13.3'', 15.6'', 21.5'' etc. optional | ||||||||||||
| Resolution | 1280*800, 1920*1080P | |||||||||||||
| Contract Ratio | optional | |||||||||||||
| Luminance | optional | |||||||||||||
| Aspect Ratio | optional | |||||||||||||
| Network | WiFi | 802.11b/g/n (2.4G/5G WIFI Optional) | ||||||||||||
| Mobile network | Support full Netcom 4G (optional) | |||||||||||||
| Buletooth | Bluetooth 4.0/5.0 optional | |||||||||||||
| Ethernet | 10M/100M or 1000M Ethernet optional | |||||||||||||
| Interface | Type-C USB | Type-C USB_OTG*1 | ||||||||||||
| DC | DC power 12V input | |||||||||||||
| SD Card reader | Maximum support 128G | |||||||||||||
| HDMI | Support HDMI output | |||||||||||||
| Speaker output | Support 8 ohm 2W speaker*2 | |||||||||||||
| Power connector | 6PIN pitch 2.0 built-in power board interface *1 (optional) | |||||||||||||
| GPIO expansion port | 4PIN spacing 2.0 GPIO external expansion port *1 (optional) | |||||||||||||
| RS232 interface | 4PIN spacing 2.0 RS232 or UART external expansion port *1 (optional) | |||||||||||||
| UART interface | 4PIN spacing 2.0 UART external expansion port *1 (optional) | |||||||||||||
| MIC interface | 2PIN spacing 2.0 MIC external expansion port *1 (optional) | |||||||||||||
| Infrared remote control; | Support built-in infrared remote control (optional) | |||||||||||||
| Infrared remote control and LED light | support 6PIN spacing 2.0 external expansion port (optional) | |||||||||||||
| USB expansion port | 4PIN spacing 2.0 supports USB host external expansion port *3 (optional) | |||||||||||||
| Key | Buttons/Keys | Power key, V+, V-; | ||||||||||||
| Media play | Video format | Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 1080P, HTML5 video playback, Flash 10.1 playback |
||||||||||||
| Audio format | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP etc. | |||||||||||||
| Text processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT | |||||||||||||
| E-book | PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 | |||||||||||||
| Photo | JPG,BMP,PNG | |||||||||||||
system management |
APK install | APK installer | ||||||||||||
| Root permission | Original ecological Android system, open root permissions, customizable development | |||||||||||||
| Remote control | Real-time remote monitoring, system crash self recovery, 7*24 hours unattended | |||||||||||||
| OTA upgrade | Support OTA remote upgrades | |||||||||||||
| Camera | Pre 2MP/5MP (default none , optional) | |||||||||||||
| Language | Multi-language | |||||||||||||
| Others | Dual screen different display | Support dual-screen different display function (optional) | ||||||||||||
| VESA interface | Support 75*75mmVESA interface | |||||||||||||
| Gravity Sensor | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation | |||||||||||||
| Accessories | Adapter | Adapter,12V/2A | ||||||||||||

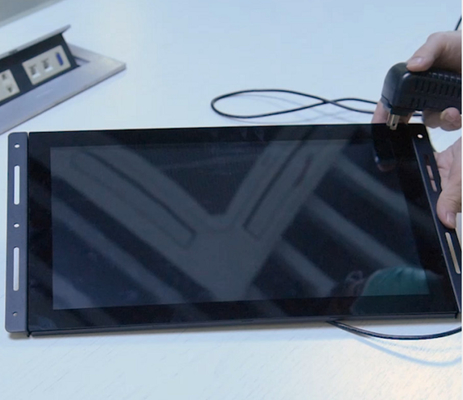

Products Pictures:
Application Scenarios:
Packing & Delivery:
Why Choose SUNCHIP:
Sunchip is a software and hardware solution provider, retailer store digital signage display solution provider, and it’s located in Shenzhen, China.
Sunchip has a huge R&D team which more than 80 employees.
They include hardware layout engineer, hardware debugging engineer, ID design engineer, mechanical design engineer, android kernel software engineer, android driver software engineer, apk development engineer, FAE software test engineer, and so on.
So, if our clients choose Sunchip, don’t need to worry about anything, we can provide one-stop service for them.
BTW, Sunchip has more than 3200 square meters of factory and office, totally we have two floors in this building. Recently we plan to extend our office, because more younger people join us, we need more office.
Sunchip also got a lot of certificates, like, CE, ROHS, FCC on many products. Some clients, like from Japan, Korea, Thailand, requested to do TELEC, KC and TISI. We can do all of them.
Sunchip mainly manufactures android embedded board, android media player box, stretched lcd display, open frame lcd display and other types of digital signage.
All of these products are based on Rockchip platform for industrial application.
Recommend Products:
SUNCHIP ARM board Solution list:
RK3588, RK3566, RK3568, RK3399, RK3288, RK3328, RKPX30, RK3188, RK3128 etc.
Display interface: HDMI output, HDMI input, LVDS, EDP, MIPI.
Network optional: WIFI, Bluetooth, Ethernet, 4G, Optical.
WELCOME TO CONTACT US!
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
