Product Details:
|
| Product Name: | RK3399 Android Pcb Board | CPU: | RK3399 |
|---|---|---|---|
| GPU: | ARM Mali-T860MP4 GPU | ROM: | 16GB/32GB/64GB Optional |
| RAM: | 4GB | Display Interface: | LVDS, EDP |
| Wifi: | Support 2.4G Or 2.4G+5G WIFI Band | USB: | Support USB Ports |
| G-Sensor: | Yes | OS: | Android 7.1/8.0/9.0/10.0 |
| UART: | 3 PCS | Internet: | BT,HD, WIFI, Ethernet |
| High Light: | Commercial Display Industrial Control Motherboard,RK3399 Industrial Control Motherboard,Android Embedded Arm Motherboard |
||

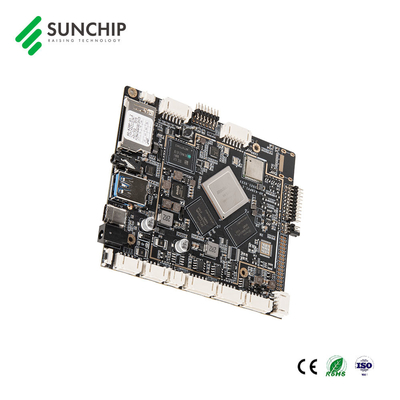

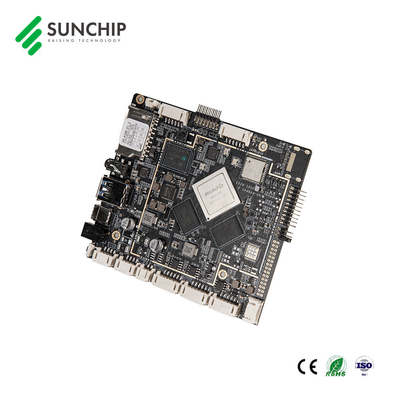

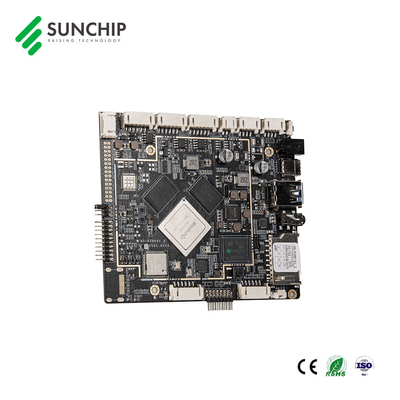

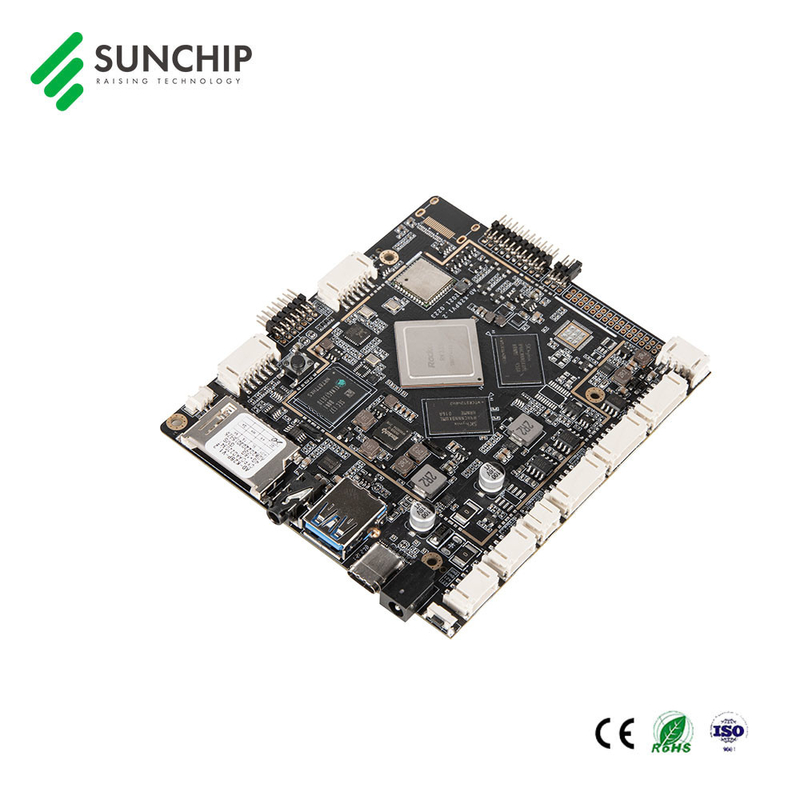

Commercial Display Accessories Core Industrial Control Motherboard RK3399 6 Core Embedded Arm Android Motherboard
Overview:
RK3399 Android integrated board, using RockChip RK3399 six-core 64-bit server-level chip solution, supporting Google
Android7.1/8.1/9.0 operating system, RK3399 is a six-core 64-bit CPU based on dual-core A72+ quad- core A53 architecture, the latest GPU Quad-core Mali-T860, the overall running score is up to more than 110,000 points super performance.
A new six-core chip with super performance makes the product more perfect, and is widely used in intelligent control fields such as witness identification, advertising machines, interactive all-in-one machines, security, medical, transportation, finance,industrial control and so on.
* It also supports 7-inch to 84-inch LVDS interface displays (point-to-point full HD display 1920*1080) and EDP interface display.
* Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.
* A variety of network interfaces: Ethernet, 4G, WIFI, Bluetooth.
* Multi-channel USB interface, serial output.
* Support 4K video play with HD 2.0 HD output.
* Strong anti-electromagnetic interference and electromagnetic compatibility.
Hardware Spec.
| CPU | Rockchip RK3399 dual-core Cortex-A72+ quad-core Cortex-A53 CPU |
| GPU | ARM Mali-T860MP4 GPU |
| Run and save | LPDDR4 4G |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (label 16GB) |
| Display interface | LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display |
| EDP screen interface, maximum resolution 4K | |
| MIPI screen interface, maximum resolution 1920*1080 | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Touch screen |
Provide I2C interface (multi-point capacitive touch) Support USB multi-point capacitive touch, multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch |
| Network | With RJ45 interface, support 10/100 Ethernet |
| Equipped with Wifi&BT module, supporting Wi-Fi 802.11a/b/g/n/ ac protocol. Support BT4.0 | |
| Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, gravity sensor function (optional) |
| Real Time Clock | External real-time clock power supply battery |
| Interface device | Support MIPI interface camera |
| 6 USB HOST (support usb camera@500W usb printer, U disk, mouse, keyboard and standard usb peripherals) | |
| 2 groups of UART, 1 group of SPI or 1 group of UART, 2 groups of SPI. Support external serial devices (NFC module, printer, card reader, etc.) | |
| SD card, maximum support 64GB | |
| Class D power amplifier: 3W*2 8 ohms, support microphone | |
| HDMI 2.0 output | |
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP Format |
| Video | Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback |
| Picture | Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation/image enlargement function |
| Power Adapter | Input: AC100-240V.50-60HZ, output: DC12V 3A |
Software Spec.
| Operating system | Android 7.1 |
| Basic software function | Web browsing, email, e-book, resource manager |
| Sound mode | Clock, alarm clock, calculator, recording |
| Voice support | Multinational voice |
| recording | Support MP3, WMA format recording |
| tool | Calendar |
| Alarm Clock | |
| Calculator | |
| note | |
| Weather + clock | |
| recording | |
| File processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 |
| schedule | calendar |
| Input | Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
| Internet | Browser -ChromeLite |
| Gmail | |
| System Management | APK installer |
| Original Android system, open root permissions, product customization development | |
| Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended | |
| Support OTA remote upgrade | |
| System setting | |
| Google Maps | |
| Global time |
Application Field
■ Commercial advertising display machine
■ POS machine
■ Digital photo frame advertising machine
■ Touch all-in-one machine
■ Self-service vending machine
Service:
1. PCBA design
2. Housing design
3. Software and hardware customization
4. Logo print on housing
5. Software customization: Booting image, Boot animation,UI, Launcher, APP, Function
6. Good quality products
7. full after-sales service with technology support
8.100% QC check before shipping
1) Q: Is SUNCHIP a factory or simply a trading company? FAQ
A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.
2) Q: What payment methods are available to me?
A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.
3) Q: How long is the warranty time?
A: 1 Year.
4) Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.
5) Q: Do you give any discounts ?
A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.
6) Q: I would like to add my company logo on your products, is this possible?
A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.
