Product Details:
|
| CPU: | RK3568 Quad-Core | OS: | ANDROID 11 |
|---|---|---|---|
| Resolution: | 4K HD Output Max, 1920*1080 | USB: | 1*USB 3.0, 1*USB OTG, 3*4PIN USB |
| DDR/EMMC: | 2GB RAM/16GB ROM; 4GB RAM /16GB,32GB,64GB | Display: | LVDS/EDP/MIPI/HD OUT, EDP/MIPI Optional |
| 3*Serial Port: | UART3, UART4, UART7 | LAN: | 10/100/1000M Ethernet |
| WIFI/BT: | 2.4G WIFI & Bluetooth 4.0 | Touch: | YES, I2C/USB Interfaces Support |
| 4G LTE: | Support Built-in Or Ecternal PCIE | ||
| High Light: | LCD Signage Embedded arm board,LCD embedded system motherboard,Digital Signage embedded system motherboard |
||

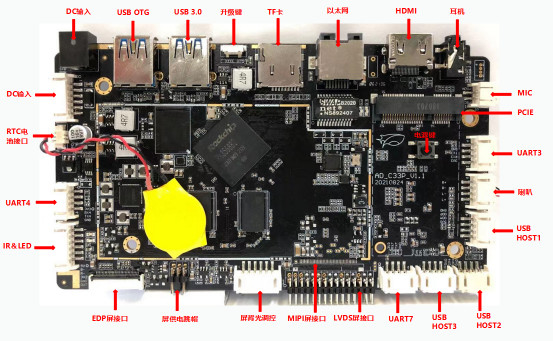

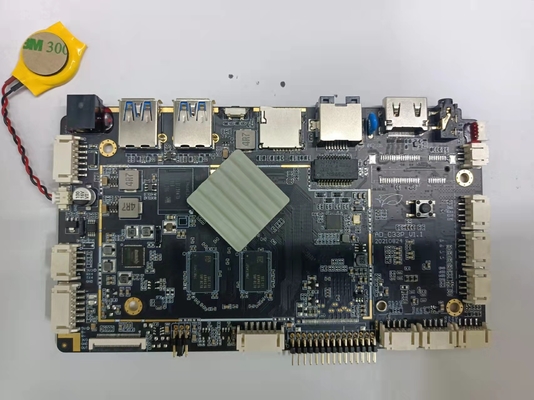

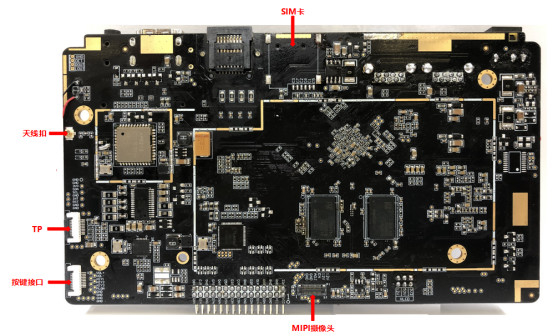

10.1'' LCD Digital Signage Kit RK3568 Android embedded system motherboard For Advertising Player digital signage retail
WHY CHOOSE US?
Sunchip is a professional solution company that dedicated to the development of embedded motherboards, software and hardware, and finished product manufacturing, as well as digital signage retail solutions.
1. So far, there are more than 10 years of PCBA design and production experience
2.A R&D team with more than 80 people, including hardware engineers (layout boards, debugging, etc.), software engineers (driver, kernel, test and apk engineers), ID design, mechanical design engineers, support OEM/OEM
3.The whole team has about 160 people
4.One-stop service: PCB layout design, prototype, production, PCBA SMT, test production, housing design, assembly, software customization, QC control, after-sales etc.
5.Passed ISO9001 , ISO 14001
6.There are more than 3,500 square meters of office and workshop area, which is still expanding
Introduction:
It is an intelligent industrial all-in-one machine adopts the Rockchip RK3568 quad-core chip solution, which supports Android 11 system.
Enhanced power management circuit
Support commonly used external devices
Rich interfaces and stable performance
Suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machines, educational video terminals and other equipments
Other dvantages:
1. Support 7 inch to 84 inch various LVDS interface displays (point-to-point full HD display 1920*1080).
2. Support EDP interface display screen.
3. Support MIPI interface display screen.
4. Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth, 4G.
5. Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
6. Multi-channel USB interface, serial port.
7. Strong anti-electromagnetic interference and electromagnetic compatibility.
Basic hardware specifications:
| CPU | Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52 |
| Main frequency | Up to 2.0 GHz |
| RAM | DDR4 2G/4G optional (lable 2GB) |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (label 16GB) |
|
Display interface
|
LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display |
| MIPI interface | |
| EDP interface | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Touch screen |
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch. |
|
The internet
|
With RJ45 interface, support 10/100/1000M Ethernet. |
| Equipped with WIFI &BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 | |
| Image rotation | Support 0-degree, 90-degree, 180-degree, 270-degree manual/auto rotation, support gravity sensor function |
| Real Time Clock |
External real-time clock power supply battery
|
|
Interface device
|
Support MIPI interface camera, up to 500W pixels |
| 4 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals) | |
| 3 groups of serial ports. Support external serial device module (NFC module, printer, card reader, etc.) | |
| TF card, maximum support 32GB | |
| Class D power amplifier: 3W*2 8 ohms, support microphone | |
| HDMI 2.0 output | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
| Video | Support 4K 60fps H.265/H.264/VP9 video decoding. Support 1080P 100fps H.265/H.264 video encoding. Support 8M ISP, support HDR. |
| Picture | Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
| Power Adapter | Input: AC100-240V.50-60HZ, output: DC12V 3A |
Basic software specifications:
| Operating system | Android 11 system |
| Basic software functions | Web browsing, web chat, email, e-book, resource manager |
| Sound effect mode | Clock, alarm clock, calculator, recording |
| Language support | Multi-lingual |
| Recording | Support MP3, WMA format recording |
|
Tool
|
Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather + clock | |
| Recording | |
| Word processing |
EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
|
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input | Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
|
Network
|
Browser -Chrome Lite |
| GOOGLE Market | |
| Gmail | |
| Google talk | |
| System Management | Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation) |
| Original ecological Android system, open root permission, can carry out product customization development | |
| Customizable local or remote server management system | |
| Support a variety of third-party Android remote advertising systems | |
| Support multiple serial devices, USB devices | |
| Support dual-screen different display |
Rockchip RK3568 Solution: ANDROID 11 OS,
DDR 4 :2GB /4GB Optional
EMMC :16GB /32GB /64GB Optional
Media Contents:
Media contents includes video, image, music, text, web page, time, date, weather, rss news, IP stream etc;
Video formats include WMV, MPG2/4, RMVB, DAT, VOB, XVID, DIVX, AVI, H.264/H.265, MOV, FLV, etc;
Image formats include almost all of image formats, such as BMP, JPG, PNG, etc;
Message can set font, size, color, and background color or transparant background;
Resources Management:
Upload video, images,music to QCMS and manage those files under resources.
Campaigns and Programs:
Playlists can be created under Loop campaign, On-Demand campaign and Cut-in campaign;
Playlist includes more than one program(one program with specific layout);
Programs under loop campaign can be scheduled to play at certain time point or period every day;
On-Demand campaign is usually for touch screen application, For example, it would play until you touch the screen;
Cut-in campaign is more like one time play at a certain time period of a certain day;
FAQ:
Q1: I need large quantities, so, can I have lower price?
A: We will lower your cost if you can order large quantities at a time, please contact our us for details.
Q2: Can you modify the standard product?
A: Sure, please submit your technical requirement and order quantity, we will modify the
product after audit.
Q3: Can we cooperate for customized project?
A: Yes. Sunchip is a company which support OEM/ODM service. We often deal with special case.
Q4: Can I pre-install APPs?
A: Sure, we can pre-install customers’ APP into the Android System.
Except for pre-install APPs, Sunchip also support to customize the boot logo and animation, revise the system model number and build number, set defaulted time zone and language etc.
Q5: How is the stability of product?
A: Our Android LCD is usually used in retailing and industrial grade/application;
It can work 7*24h without crash.
The 4G or Wi-Fi or Ethernet can also work stable for long time.
Q6: Any optional version for the product?
A: Yes, such as the android board models, RAM/ROM, OS Version, LCD module size, touch or not, brightness, WIFI/BT LAN and 4G, GPS etc.
Q7: How is your warranty policy?
A: 12-month.
