Product Details:
|
| Product Name: | 7 Inch Advertising Kiosk For Digital Signage | CPU: | PX30/RK3568/RK3566/RK3288/RK3399 Optional |
|---|---|---|---|
| RAM: | 1GB/2GB/4GB Optional | ROM: | 8GB/16GB/32GB/64GB Optional |
| Camera: | Support, Defaulty None | Touch Panel: | Support , Defaulty None |
| Fucntion: | Bluetooth, WIFI, Media Player, Remote Control Via Internet | Brightness: | Optional |
| Application: | Indoor,Industrial,Desktop,embedded | Resolution: | Optional |
| Products Status: | Stock | Type: | Open Frame Lcd Monitor Display |
| High Light: | Easy Assembling LCD Digital Signage,Easy Assembling Open Frame LCD Display,Slim Open Frame LCD Display |
||

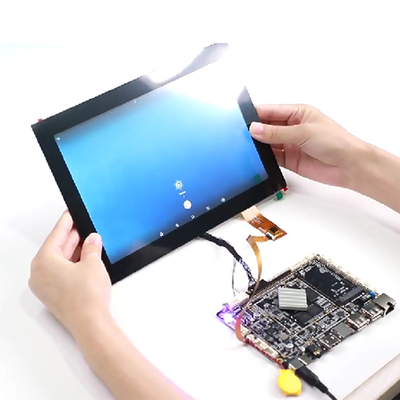

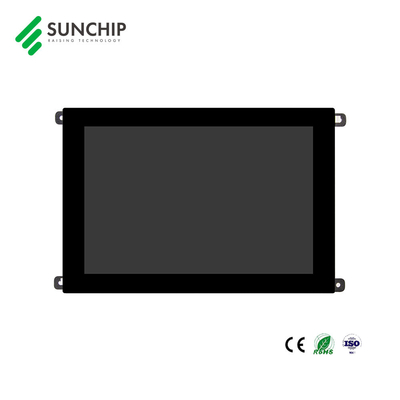

7 Inch Easy Assembling Digital Signage Indoor Slim open frame lcd display Monitor for advertising touch screen display
CPU Solutions for options:
RK3188, RK3128, RK3288, RK3399, RKPX30, RK3566, RK3568 etc.
Application Of LCD Digital Signage:
1. Business Product Promotional display:supermarket, large-scale shopping malls, exclusive agency,
chain shops, large-scale sales, star-rated hotels,restaurants, travel agencies, pharmacy
2. Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops; Non-profit Organizations: Telecommunications, post offices, hospital, schools
3. Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls,stadiums, museums,convention centers, ticket agencies, HR market, lottery centers;
4. Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers Entertainments
| Interaction Method |
Touch screen | 10-point capacitive touch (optional) | ||||||||||||
| Display | LCD panel | 7" IPS screen, 8inch, 10.1inch | ||||||||||||
| Resolution | 1280*800 | |||||||||||||
| Viewable Area | 150.72(H)x94.2mm(V),depends on different lcd panel size | |||||||||||||
| Viewing Angle | 85/85/85/85 | |||||||||||||
| Contrast Ratio | 800 | |||||||||||||
| Luminance | 300cd/m2(optional) | |||||||||||||
| Aspect Ratio | 16:10 | |||||||||||||
| Key | Supports three keys | Power button, volume +, volume - (default no button board) | ||||||||||||
| Installation | Installation method | Screw fixing hole embedded installation (can be customized according to the actual use environment of customers) |
||||||||||||
| Accessories | Adapter | Power adapter 12V/2A | ||||||||||||
| Antenna | Built-in 2-in-1 WIFI/BT antenna | |||||||||||||
| Package |
Neutral package |
|||||||||||||
| stem | CPU | Rockchip RK-PX30 Quad-core Cortex-A35 Mali-G31 MP2 GPU | ||||||||||||
| Frequency | 1.5GHZ | |||||||||||||
| RAM | 1GB(optional) | |||||||||||||
| Internal Storage | 8GB(optional) | |||||||||||||
| Operating System | Android 8.0 | |||||||||||||
| Interaction Method | Touch screen | 10-point capacitive touch (optional) | ||||||||||||
| Display | LCD panel | 7" HD IPS screen | ||||||||||||
| Resoluton | 1280*800 | |||||||||||||
| Viewable Area | 216.58(H)x135.36mm(V) | |||||||||||||
| Viewing Angle | 89/89/89/89 | |||||||||||||
| Contrast Ratio | 800 | |||||||||||||
| Luminance | 300cd/m2(optional) | |||||||||||||
| Aspect Ratio | 16:10 | |||||||||||||
| Network | WiFi | 802.11b/g/n | ||||||||||||
| Bluetooth | Bluetooth 4.0 | |||||||||||||
| Ethernet | 10M/100M network port | |||||||||||||
| Interface | USB_A*3 | USB host*3 | ||||||||||||
| Mini USB | Mini USB OTG | |||||||||||||
| SD card | SD card port*1, support 64G | |||||||||||||
| RJ45 | Ethernet port | |||||||||||||
| DC | DC power 12V input | |||||||||||||
| Headphone | 3.5mm stereo headphone output | |||||||||||||
| Media play | Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 1920x1080p | ||||||||||||
| Audio format | MP3/WMA/AAC etc. | |||||||||||||
| Image format | jpeg | |||||||||||||
| Other | UART | Support UART communication expansion port*3 groups | ||||||||||||
| Speaker | Support 5W*2 dual channel speaker interface 1 group | |||||||||||||
| Camera | Support MIPI camera interface a group of up to 8 million | |||||||||||||
| MIC | Support a set of MIC interface | |||||||||||||
| Battery | Built-in clock-powered battery | |||||||||||||
| Operating temperature | 0°C-50°C | |||||||||||||
| OSD language | Multiple languages | |||||||||||||
| Key | Supports three keys | Power button, volume +, volume - (default no keypad) | ||||||||||||
| Installation | Installation method | Screw fixing hole embedded installation (can be customized according to the actual use environment of customers) | ||||||||||||
| Accessories | Adapter | Power adapter 12V/2A | ||||||||||||
| Antenna | Built-in 2-in-1 WIFI/BT antenna | |||||||||||||
| Package | Neutral package | |||||||||||||
Key Features:
SUNCHIP Office:
More android ARM motherboard to recommend you:
WELCOME TO CONTACT US!
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.

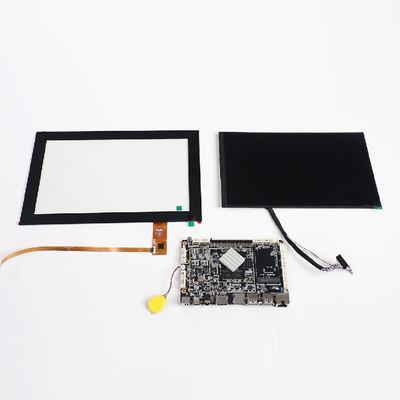

5, SKD Kit: Android board + LCD panel with touch or not:
