Product Details:
|
| CPU Solution: | RK3288 Quad-core | OS: | Android 7.1- 9.0 |
|---|---|---|---|
| LCD Panel: | 7/8/10.1/15.6/ 21.5/27/32/43/49/55/65'' Optional | Resolution: | 1920*1080 LVDS/EDP/MIPI , 4K HD Out |
| Touch: | Optional | Mobile Network: | 4G Optional |
| RAM: | 2GB/4GB (optional) | ROM: | 8GB/16GB/32GB(optional) |
| WiFi: | 802.11 B/g/n_2.4G ( Support 5G Optional) | Ethernet: | 10M/100M Ethernet |
| Products Status: | Stock | Application: | Audio Player;ultrathin AIO;IPC;embedded Industrial System;etc |
| High Light: | Digital Screens Embedded Motherboard,Digital Screens Embedded Mainboard,Digital Display Embedded Mainboard |
||

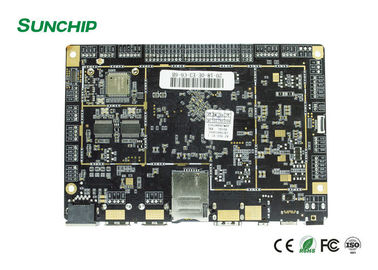

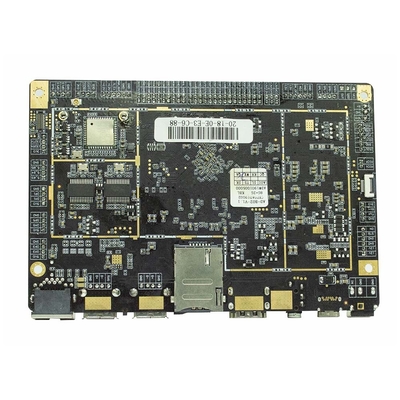

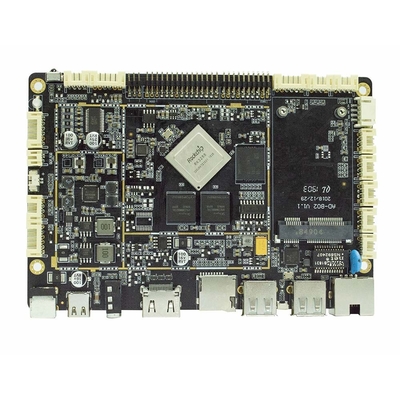

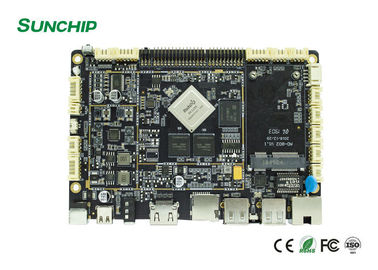

Sunchip RK3288 Android Digital Display Screens With WIFI LAN 4G BT Option embedded system mother board Main Board PCBA
Quad-core RK3288 Android Decoding Driver Integrated Board:
(Product model:AD-B02P-V1.0)
RK3288 Android integrated board adopts Rockchip RK3288 quad-core chip solution and supports Android 5.1 and above systems. Support the decoding of mainstream audio and video formats and pictures. Support EDP@4K, dual 8-bit LVDS interface 1920*1080, can drive 7" to 82" display screen. With HDMI interface, it supports 4K video playback. Abundant interfaces make the products more versatile and are widely used in intelligent control fields such as advertising machines, all-in-one machines, security, and industrial control. Due to its hardware platform and Android intelligent features, it can be used as an intelligent terminal platform when human-computer interaction or network device interaction is required.
Product features:
Support Contents Management Software (CMS):
CMS is one of the most popular digital signage online management software which allows people quickly and easily to manage centrally controlled network of LCD advertising screens. And CMS can be hosted on On-Premise and Cloud Sever running 24/7 no maintenance hassle.
All of our digital signage products including wall mounted advertising displays, floor standing digital signage kiosks, digital signage media players., etc can be remotely online managed via CMS system. CMS supports remote control, screen layouts edit, playlist scheduling, multi-accounts management, versatile media format including image, video, audio, scrolling message, web page, streaming and live tv feeds., etc. We have numerous of clients from all over the world who are using our CMS system, And, now thousands of digital signage players /advertising displays / digital signage totems are working with our CMS software globally.
Support Functions:
1. Free standing design and metal housing; free instillation.
2. Industrial-grade design, heavy-duty build for non-stop loop-playing video and picture 24/7/365.
3. Scrolling Text Message and Play Log functions.
4. Upload contents to the memory card by one-step inserting an USB flash drive; no need to pull out the memory card; no need to use a laptop.
5. Video and picture playing can be mixed.
6. Timer: the player powers on / off automatically every day at your pre-set time.
7. Support CMS.
8. No DVD-style mechanical movement, hence more durable and suitable for long-hour advertising playing.
9. With full HD 43 inch (16:9) TFT LCD screen, plays from USB flash drive.
Product Specifications:
| CPU | Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764 |
| Main frequency | 1.8 GHz |
| Deposit | LPDDR3 2G/4G Optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G etc. optional |
|
Display interface
|
LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-82" display |
| EDP interface Maximum resolution 4K | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Touch screen | Support I2C touch screen, USB multi-point infrared touch frame, resistance, capacitive touch screen. |
|
The internet
|
With RJ45 interface, support 10/100M Ethernet. |
| Equipped with wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 | |
| With 4G module, support 4G network | |
| Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function (optional) |
| Real Time Clock | External real-time clock power supply battery |
|
Interface device
|
Support MIPI camera |
| Support HDMI output | |
| 5 USB HOST (support usb camera@500W usb printer, U disk, mouse, keyboard and standard usb peripherals) | |
| 3 groups of serial ports (1 group of UART; 2 groups of standard UART or optional RS232). Support external serial devices (NFC module, printer, card reader, etc.) | |
| 3 IO detection ports | |
| TF card | |
| D class large built-in speaker, 5W*2 8R | |
| Support microphone | |
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format |
| Video | Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback |
| Image | Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
| Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V 3A |
| operating system | Android 5.1 and above, 6.0, 7.1, 8.0, 9.0 OS |
| Basic software functions | Web browsing, web chat, email, e-book, resource manager |
| Sound effect mode | Clock, alarm clock, calculator, recording |
| language support | multi-lingual |
| recording | Support MP3, WMA format recording 3gpp, amr and other formats, according to the recording APK is different, the format is different, now the system comes with the amr format |
|
tool
|
Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather + clock | |
| Recording | |
| Word processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| schedule | Calendar |
| Input | Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
|
The internet
|
Browser -ChromeLite |
| Gmail | |
| System Management | APK installer |
| Original ecological Android system, open root permission, can carry out product customization development | |
| Real-time remote monitoring, self-recovery from system crashes, 7*24 hours unattended | |
| System setting | |
| Global time | |
| Support OTA remote upgrade |
