Product Details:
|
| CPU: | Rockchip RK3566 Quad-core A55 | Operating System: | Android 11 And Above |
|---|---|---|---|
| Internet: | WIFI, BT, Ethernet | Display Interface: | HD, MIPI, LVDS, EDP(optional) |
| RAM: | 2G DDR4 | Built-in Storage Capacity: | EMMC 16G/32G/64G Optional |
| High Light: | Android 11 Embedded Board,WIFI BT Embedded Board,4k display industrial motherboards |
||

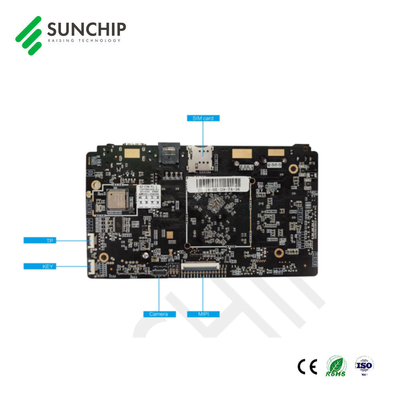

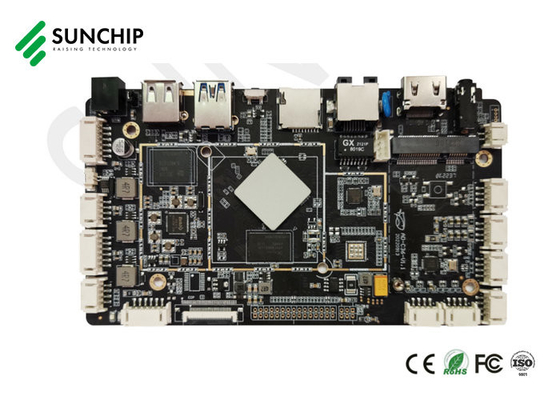

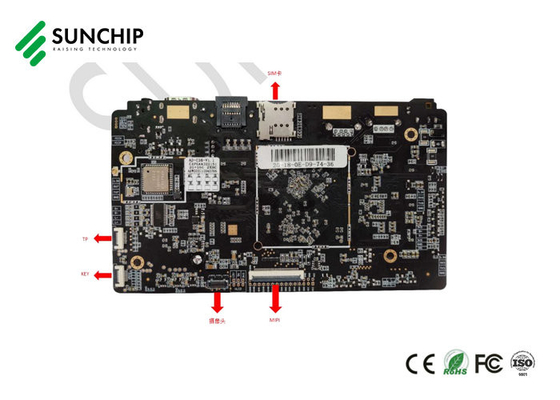

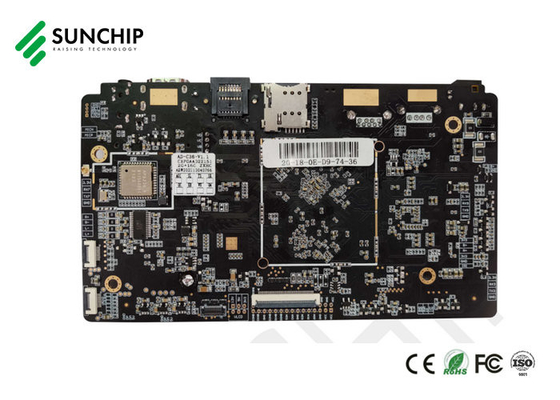

RK3566 android 11 embedded board 4k display for lcd touch screen Industrial Motherboard PCBA Board For Digital Signage
Model No: AD-C36
Product Name: Android Embedded ARM Board
Application Scenario: Industrial, Medical, Advertising machine, LCD digital signage, Education etc.
Model: AD-C36
CPU: Rockchip RK3566 Quad-core A55, up to 1.8GHz
RAM: 2G DDR4
ROM: EMMC 16G/32G/64G optional
OS: Android 11
Display: HD, LVDS, EDP, MIPI
LAN: 10/100M Ethernet
WIFI/BT: 2.4G WIFI & BT4.0
4G LTE: 4G Network Optional
G-sensor: Auto-rotation & rotate manually
RTC: Real-Time-Clock
Touch: I2C and USB TP
Serial ports: UART *3
USB: internal USB *4 + external USB *2
Extended Storage: TF Card Slot *1
TYPE-C: OTG port

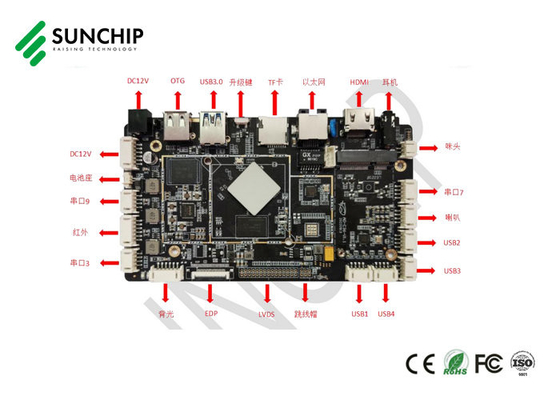

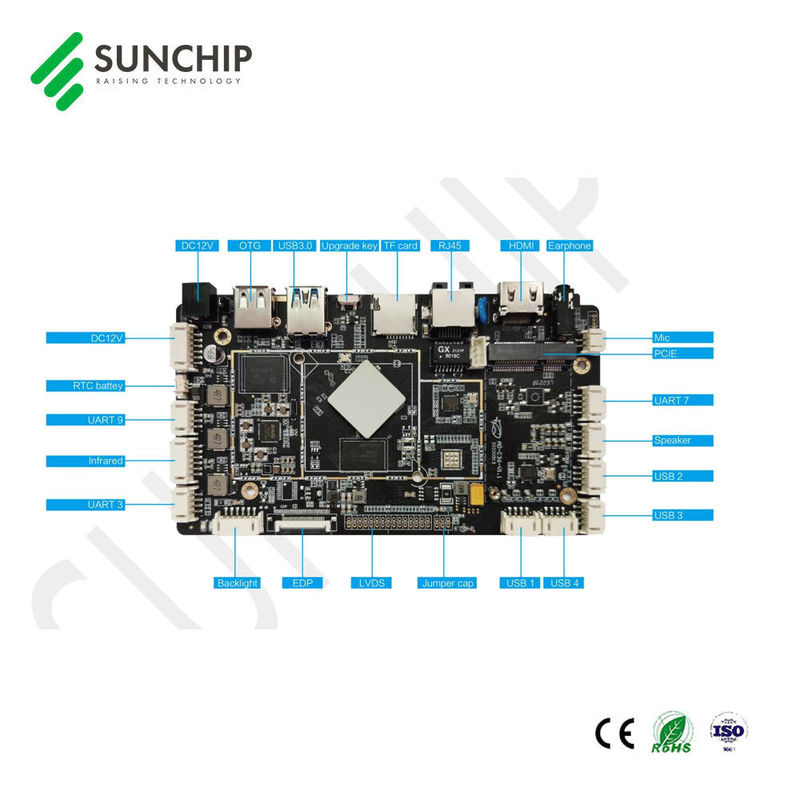

Basic hardware specifications:
| CPU | Rockchip RK3566 Quad-core A55 architecture |
| Main frequency | 1.8GHz |
| GPU | ARM Mali-G52 2EE |
| OpenGL ES 1.1/2.0/3.2 | |
| Vulkan 1.1 | |
| OpenCL 2.0 | |
| Embedded with high performance 2D acceleration hardware | |
| NPU | 1TOPS computing power, support int8/int16 |
| RAM | 2G DDR4 |
| Built-in storage capacity | EMMC 16G/32G/64G optional |
| Display Interface | HDMI2.0(maximum support 4K@60FPS) |
| MIPI display interface (MIPI and LVDS can only be selected as one) | |
| LVDS display interface (MIPI and LVDS can only be selected as one) | |
| EDPdisplay interface | |
| Screen voltage | 3.3V/5V/12V optional |
| Touch screen |
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch) Support USB multi-point infrared touch, multi-point acoustic touch, multi-point optical touch. |
| Network | With RJ45 interface, support 10/100M Ethernet. |
| With Wifi & BT module, support Wi-Fi 802.11b/g/n protocol. Support BT4.0 | |
| Image rotation | Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function |
| Real-time clock | Built-in real-time clock powered battery |
| Interface device | Support MIPI interface camera, support up to 500W pixels |
| 4 USB HOST 2.0, 1 USB HOST3.0, 1 USB OTG (support usb camera @ 500W usb printer , USB stick , mouse , keyboard standard usb peripherals) | |
| 2 groups of serial ports, support external serial device modules (NFC modules, printers, card swipes, etc.) | |
| TF card, supports up to 32GB | |
| Class D amplifier: 3W*2 8 ohms, microphone support |
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP |
| Video |
Support H.265/H.26/VP9 video decoding, up to 4K60FPS Support H.264/H.265 video encoding, up to 4K30FPS |
| Picture | Support JPG, BMP, PNG and other image formats to browse and support rotation / slideshow / image zoom function |
| Power adapter | Input:AC100-240V.50-60HZ, output: DC12V 3A(Internal positive and external negative) |
Basic software specifications:
| Operating system | Android 11 and above |
| Basic software functions | Web browsing, web chat, email, e-book, resource manager |
| Sound mode | Clock, alarm clock, calculator, recording |
| Language | multi-lingual |
| recording | Support MP3, WMA format recording |
| Tool | Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather + clock | |
| Recording | |
| Word processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| schedule | Calendar |
| Input | Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
| Internet | Browser -ChromeLite |
| GOOGLE Market | |
| Gmail | |
| Google talk | |
| System Management | Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation) |
| Original Android system with open root access for product customization and development | |
| Customizable local or remote server management system | |
| Support multiple third-party Android remote ad distribution systems | |
| Support multi-channel serial devices, USB devices, IO control devices |
RK3566 Android 11 Development Motherboard Industrial Level PCBA Board For Digital Signage
FAQ:
Q1: I need large quantities, so, can I have lower price?
A: We will lower your cost if you can order large quantities at a time, please contact our us for details.
Q2: Can you modify the standard product?
A: Sure, please submit your technical requirement and order quantity, we will modify the
product after audit.
Q3: Can we cooperate for customized project?
A: Yes. Sunchip is a company which support OEM/ODM service. We often deal with special case.
Q4: Can I pre-install APPs?
A: Sure, we can pre-install customers’ APP into the Android System.
Except for pre-install APPs, Sunchip also support to customize the boot logo and animation, revise the system model number and build number, set defaulted time zone and language etc.
Q5: How is the stability of product?
A: Our Android LCD is usually used in retailing and industrial grade/application;
It can work 7*24h without crash.
The 4G or Wi-Fi or Ethernet can also work stable for long time.
Q6: Any optional version for the product?
A: Yes, such as the android board models, RAM/ROM, OS Version, LCD module size, touch or not, brightness, WIFI/BT LAN and 4G, GPS etc.
Q7: How is your warranty policy?
A: 12-month.
