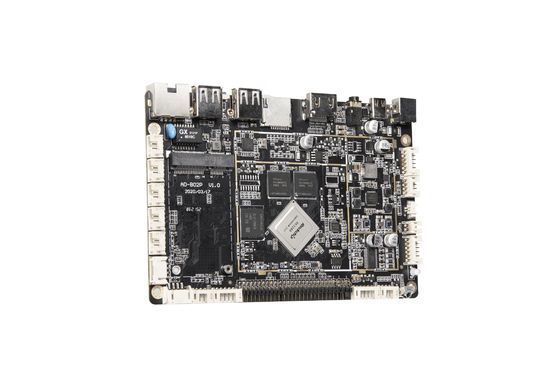

4K EDP LVDS Android Integrated Board RK3288 Quad Core Chip Solution Embedded System Board

4K EDP LVDS Android Integrated Board RK3288 Quad Core Chip Solution Embedded System Board
4K EDP LVDS Android Integrated Board RK3288 Quad Core Chip Solution Embedded System Board
4K EDP LVDS Android Integrated Board RK3288 Quad Core Chip Solution Embedded System Board 4K EDP LVDS Android Integrated Board RK3288 Quad Core Chip Solution Embedded System Board 4K EDP LVDS Android Integrated Board RK3288 Quad Core Chip Solution Embedded System Board 4K EDP LVDS Android Integrated Board RK3288 Quad Core Chip Solution Embedded System Board 4K EDP LVDS Android Integrated Board RK3288 Quad Core Chip Solution Embedded System Board

Large Image :  4K EDP LVDS Android Integrated Board RK3288 Quad Core Chip Solution Embedded System Board

Product Details:
Place of Origin: Shenzhen, China
Brand Name: ADW
Certification: CE, ROHS, FCC, ISO9001
Model Number: AD-B02P
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD50~USD70/pc
Packaging Details: Carton / Wooden case
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1,000,000 Pieces per Month

4K EDP LVDS Android Integrated Board RK3288 Quad Core Chip Solution Embedded System Board

Description
CPU&GPU: Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764 Frequency: 1.8 GHz
Display Interface: LVDS/EDP/HD Touch Screen: I²C Interface
Real Time Clock: External Real-time Clock Power Supply Battery Camera: MIPI
Speaker: 5W*2 8R Screen Voltage: Support 3.3V/5V/12V Optional
High Light:

LVDS Android Integrated Board

,

EDP Android Integrated Board

,

Rockchip RK3288 Embedded System Board

4K EDP LVDS RK3288 Android Integrated Quad-core Chip Solution Embedded System Board

Model No: AD-B02P-V1.0

Overview:

RK3288 Android integrated board adopts Rockchip RK3288 quad-core chip solution and supports Android 5.1 and above systems. Support the decoding of mainstream audio and video formats and pictures. Support EDP@4K, dual 8-bit LVDS interface 1920*1080, can drive 7" to 82" display screen. With HD interface, it supports 4K video playback. Abundant interfaces make the products more versatile and are widely used in intelligent control fields such as advertising machines, all-in-one machines, security, and industrial control. Due to its hardware platform and Android intelligent features, it can be used as an intelligent terminal platform when human-computer interaction or network device interaction is required.

Characteristic:

  • High performance. The RK3288 chip adopts the quad-core A17 solution, which is one of the most powerful quad-core chips on the market. The RK3288 motherboard solution using this chip has a qualitative leap in performance compared to the common single-core, dual-core, and quad-core solutions on the market. It can play various formats of high-definition video screens and can handle complex interactive operations.



  • High stability. The RK3288 Android integrated board adds its own unique technology to the hardware and software to ensure the stability of the product, which can make the final product reach 7*24 hours unattended.



  • High integration. RK3288 Android all-in-one board integrates functions such as Ethernet, wifi, Bluetooth, 4G, power amplifier, SD card, backlight power supply, etc., which greatly simplifies the design of the whole machine. The ultra-thin motherboard design can make the design of the whole machine more beautiful.



  • High scalability. 5 USB ports and 3 serial ports, which can expand more peripheral devices.



Basic hardware specifications:

CPU Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764
Main frequency 1.8 GHz
Deposit LPDDR3 2G/4G Optional
Built-in storage capacity EMMC 8GB/16G/32G/64G etc. optional

Display interface



LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-82" display
EDP interface Maximum resolution 4K
Screen voltage Support 3.3V/5V/12V optional
Touch screen Support I2C touch screen, USB multi-point infrared touch frame, resistance, capacitive touch screen.

The internet





With RJ45 interface, support 10/100M Ethernet.
Equipped with wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0
With 4G module, support 4G network
Image rotation Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function (optional)
Real Time Clock External real-time clock power supply battery





Interface device















Support MIPI camera
Support HD output
5 USB HOST (support usb camera@500W usb printer, U disk, mouse, keyboard and standard usb peripherals)
3 groups of serial ports (1 group of UART; 2 groups of standard UART or optional RS232). Support external serial devices (NFC module, printer, card reader, etc.)
3 IO detection ports
TF card
D class large built-in speaker, 5W*2 8R
Support microphone
Audio MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format
Video Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback
Image Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function
Power Adapter Input:AC100-240V.50-60HZ, Output: DC12V 3A




Basic software specifications


operating system Android 5.1 and above
Basic software functions Web browsing, web chat, email, e-book, resource manager
Sound effect mode Clock, alarm clock, calculator, recording
language support multi-lingual
recording Support MP3, WMA format recording 3gpp, amr and other formats, according to the recording APK is different, the format is different, now the system comes with the amr format

tool











Calendar
Alarm Clock
Calculator
Note
Weather + clock
Recording
Word processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
E-book PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
schedule Calendar
Input Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)

The internet





Browser -ChromeLite
Email
Gmail
System Management APK installer
Original ecological Android system, open root permission, can carry out product customization development
Real-time remote monitoring, self-recovery from system crashes, 7*24 hours unattended
System setting
Global time
Support OTA remote upgrade
