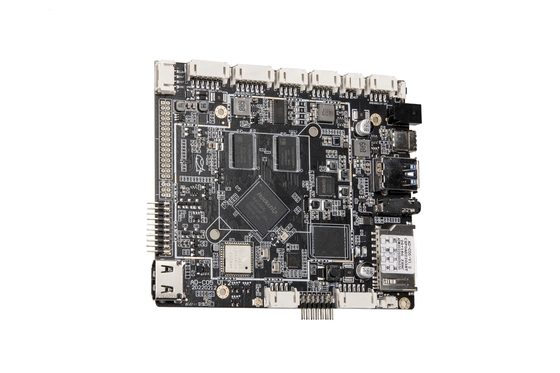

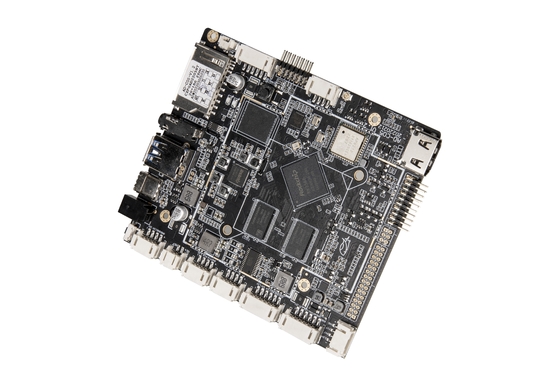

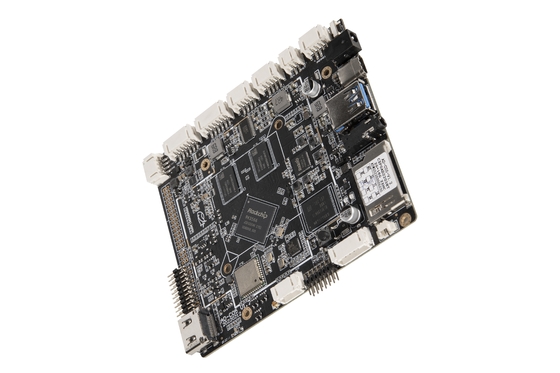

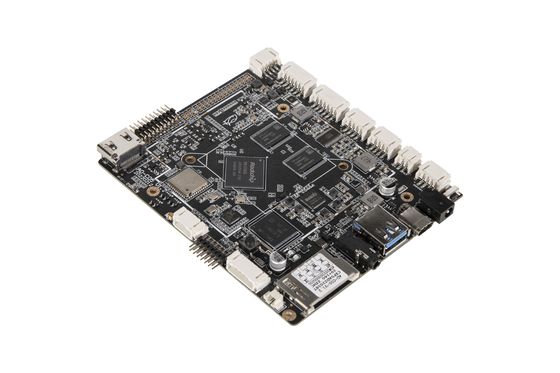

1920x1080 HD Ethernet WiFi Embedded System Board LVDS EDP MIPI For Industrial Terminal

1920x1080 HD Ethernet WiFi Embedded System Board LVDS EDP MIPI For Industrial Terminal
1920x1080 HD Ethernet WiFi Embedded System Board LVDS EDP MIPI For Industrial Terminal
1920x1080 HD Ethernet WiFi Embedded System Board LVDS EDP MIPI For Industrial Terminal 1920x1080 HD Ethernet WiFi Embedded System Board LVDS EDP MIPI For Industrial Terminal 1920x1080 HD Ethernet WiFi Embedded System Board LVDS EDP MIPI For Industrial Terminal 1920x1080 HD Ethernet WiFi Embedded System Board LVDS EDP MIPI For Industrial Terminal 1920x1080 HD Ethernet WiFi Embedded System Board LVDS EDP MIPI For Industrial Terminal

Large Image :  1920x1080 HD Ethernet WiFi Embedded System Board LVDS EDP MIPI For Industrial Terminal

Product Details:
Place of Origin: Shenzhen, China
Brand Name: SunChip
Certification: CE, ROHS, FCC, ISO9001
Model Number: AD-C05
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: $50~$58
Packaging Details: Carton / Wooden case
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 6000 Units per Month

1920x1080 HD Ethernet WiFi Embedded System Board LVDS EDP MIPI For Industrial Terminal

Description
Chipset: Rockchip RK3566 Quad-core Operating System: Android 11
Display Interface: LVDS, EDP, MIPI Screen Voltage: Support 3.3V/5V/12V Optional
RAM: LPDDR3 1G/2G Optional Internal Storage: EMMC 8GB/16G/32G/64G Optional
Real Time Clock: External Real-time Clock Power Supply Battery Ethernet: With RJ45 Interface, Support 10M/100M Ethernet.
High Light:

Industrial Terminal Embedded System Board

,

Embedded System Board EDP MIPI

,

LVDS EDP Embedded arm Board



Intelligent High Performance LVDS EDP MIPI 1920*1080 HD Ethernet WiFi For Industrial Terminal



Model No: AD-C05-V1.1







Characteristics



  1. Support 7-inch to 84-inch various LVDS interface displays (point-to-point full HD display 1920*1080).
  2. Support EDP interface display screen.
  3. Support MIPI interface display screen.
  4. Support HDMI 2.0 high-definition output.
  5. Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
  6. Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth.
  7. Multi-channel USB interface, serial port.
  8. Strong anti-electromagnetic interference and electromagnetic compatibility.



Basic Hardware Specification



CPU Rockchip RK3566 Quad-core 64-bit Cortex-A55 GPU Mali-G52
Main frequency Up to 1.8GHz
RAM LPDDR3 1G/2G Optional
Built-in storage capacity EMMC 8GB/16G/32G/64G Optional

Display interface





LVDS screen interface (single channel, 6-digit dual-channel, 8-digit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display
EDP screen interface
MIPI screen interface
Screen voltage Support 3.3V/5V/12V optional
Touch screen

Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).

Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.

The internet



With RJ45 interface, support 10/100 Ethernet.
Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0
Image rotation Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function
Real Time Clock External real-time clock power supply battery
Interface device Support MIPI interface camera, up to 500W pixels
2 USB HOST (secondary board), 1 USB 3.0 (support usb camera @500W usb printer, U disk, mouse, keyboard, standard USB peripherals)
3 groups of serial ports. Support external serial port device module (3G module, NFC module, printer, card reader, etc.)
SD card, maximum support 32GB
Class D power amplifier: 3W*2 8 ohms, support microphone
HDMI 2.0 output
Audio MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP formats
Video Support 4K 60fps H.265/H.264/VP9 video decoding; support 1080P 100fps H.265/H.264 video encoding; support 8M ISP
Picture Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function
Power Adapter Input: AC100-240V.50-60HZ, output: DC12V 3A


Basic Software Specification

Operating system Android 11
Basic software functions Web browsing, web chat, email, e-book, resource manager
Sound effect mode Clock, alarm clock, calculator, recording
Language support Multi-lingual
Recording Support MP3, WMA format recording
Tool Calendar
Alarm Clock
Calculator
Note
Weather + clock
Recording
Word processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
Ebook PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule Calendar
Input Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)
Network Browser -ChromeLite
GOOGLE Market
Email
Gmail
Google talk
System Management APK installer
Original ecological Android system, open root permission, can carry out product customization development
Real-time remote monitoring, self-recovery from system crashes, 7*24 hours unattended
System setting
Google Maps
Global time
Support OTA remote upgrade


1920x1080 HD Ethernet WiFi Embedded System Board LVDS EDP MIPI For Industrial Terminal 01920x1080 HD Ethernet WiFi Embedded System Board LVDS EDP MIPI For Industrial Terminal 11920x1080 HD Ethernet WiFi Embedded System Board LVDS EDP MIPI For Industrial Terminal 2
