|Product Type:||Android Embedded System Board+7inch/8inch/10.1inch LCD Module||Product Description:||7" / 8'' / 10.1'' Android Embedded Device|
|Connection:||WIFI, LAN, BT, 4G Optional||OS:||Android 7.1, 9.0, 10.0 Etc.|
|Product Name:||Embedded Advertising AIO Machine||CPU:||Rockchip RK3399 Hexa-core|
RK3399 Android Embedded System Board,
LCD Modules Android Embedded Board,
10.1'' Android Embedded Board

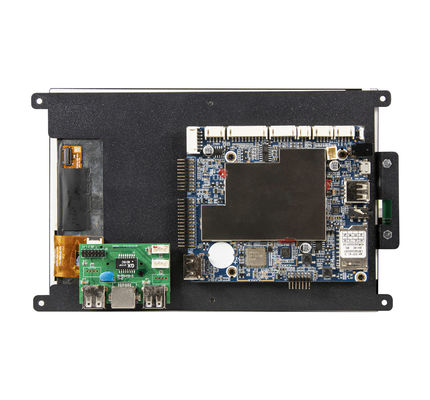

LCD Module Screen Panel 7" 8'' 10.1'' RK3399 AndroidEmbedded System Board LCD Module display from Sunchip
CPU Solutions for options:
RK3188, RK3128, RK3288, RK3399, RKPX30, RK3566, RK3568 etc.
LCD Module Specificaitons:
|Touch screen||10-point capacitive touch (optional)|
|Display||LCD panel||7" IPS screen, 8inch, 10.1inch|
|Viewable Area||150.72(H)x94.2mm(V),depends on different lcd panel size|
|Key||Supports three keys||Power button, volume +, volume - (default no button board)|
|Installation||Installation method||Screw fixing hole embedded installation
(can be customized according to the actual use environment of customers)
|Accessories||Adapter||Power adapter 12V/2A|
|Antenna||Built-in 2-in-1 WIFI/BT antenna|
Android RK3399 LCD module Digital Signage Display 7 inch 8 inch 10.1 Inch Android Embedded Board WIFI BT LAN 4G Optional
Intelligent industrial all in one board, using Rockchip RK3399 six-core chip program, support Google Android7.1 or higher system. Powerful computing power. Support H.265 4K video playback. Rich interface and enhanced power management circuit. Suitable for intelligent remote network control: industrial, medical, large advertising, educational video terminals and other equipment.
Basic hardware specifications:
|CPU||Rockchip RK3399 dual core Cortex-A72+ quad core Cortex-A53 CPU|
|GPU||ARM Mali-T860MP4 GPU|
|Built-in storage capacity||EMMC 8GB/16G/32G/64G optional (Default 16GB)|
|Display interface||LVDS interface (single, 6-bit dual, 8-bit dual). Supports a maximum resolution of 1920x1080, support 7"-84" display|
|EDP screen interface, support resolution 1920x1080|
|Screen voltage||Support 3.3V/5V/12V optional|
|Network||With RJ45 interface, support 10/100/1000 Ethernet|
|Support 4G PCIE interface|
|With WIFI & BT module, support Wi-Fi 802.11a / b / g / n / ac protocol. Support BT 5.0|
Support 0 degree, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function
|Real Time Clock||External real-time clock power supply battery|
|Interface device||Support MIPI camera x2|
|USB HOST x 3 (support usb camera@500W usb printer, U disk, mouse, keyboard and standard USB peripherals), 1x USB3.0|
|3x UART/(2 UART, 1 SPI), support external serial device (NFC module, printer, card reader, etc.)|
|TF card, maximum support 64GB|
|Class D amplifier: 5W*2 8 ohms, support microphone|
|HDMI 2.0 output|
|Audio||MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format|
|Video||Supports H.264, MPEG2, VP6, VP8, MVC and other video formats. Online videos such as YouTube, up to 4K, HTML5 video playback, Flash 10.1 playback|
|Picture||Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation / image enlargement|
|Power Adapter||Input:AC100-240V.50-60HZ, Output: DC12V/3A|
Basic software specifications:
|Operating system||Android 7.0 AND ABOVE|
|Basic software function||Web browsing, email, e-book, resource manager|
|Sound mode||Clock, alarm clock, calculator, recording|
|Voice support||Multinational voice|
|Recording||Support MP3, WMA format recording|
|Weather + clock|
|File processing||EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT|
|Input||Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)|
|Internet||Browser -Chrome Lite|
|System Management||APK installer|
|Original Android system, open root permissions, product customization development|
|Real-time remote monitoring, 7*24 hours unattended|
|Support OTA remote upgrade|
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
SUNCHIP Office and workshop:
1, Sunchip is professional manufacturer, designer and solution company that established in 2012,
dedicated to the development of embedded motherboards, software and hardware,
and finished product manufacturing, as well as digital signage retail solutions.
[all of our digital signage uses our own designed android board solution]
2, We focus on Rockchip chipsets solution and in-depth development,
Also, deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
3, Therefore, we do hope there is a chance for us to cooperate with each other in the near future.
Cuz we surely have some products that can meet or improve your solutions with a big margin.
Open Frame RK3399 7 inch 8 inch 10.1 Inch Android Embedded Board and LCD module Digital Signage Display from Sunchip
4, We mainly manufacture:
Android board for industrial digital signage,
(RK3288, RK3399, RK3328, RKPX30, RK3188, RK3128, RK3566 and RK3568, ...)
Android digital signage media player box, (RK3328, RK3288, RK3399)
Stretched lcd display signage,
Open frame lcd display signage, (Such as, 10.1’’, 15.6’’, 21.5’’, …)
Other types wall/desktop/standing lcd digital signage, (from 7’’ to 84’’, ...)
Embedded touch desk, (Such as, 32-inch, ...)
Face recognition temperature detection and attendance equipment, (8-inch)
CMS system. (Publish contents/programs by remotely.)
Q1: I need large quantities, so, can I have lower price?
A: We will lower your cost if you can order large quantities at a time, please contact our us for details.
Q2: Can you modify the standard product?
A: Sure, please submit your technical requirement and order quantity, we will modify the
product after audit.
Q3: Can we cooperate for customized project?
A: Yes. Sunchip is a company which support OEM/ODM service. We often deal with special case.
Q4: Can I pre-install APPs?
A: Sure, we can pre-install customers’ APP into the Android System.
Except for pre-install APPs, Sunchip also support to customize the boot logo and animation, revise the system model number and build number, set defaulted time zone and language etc.
Q5: How is the stability of product?
A: Our Android LCD is usually used in retailing and industrial grade/application;
It can work 7*24h without crash.
The 4G or Wi-Fi or Ethernet can also work stable for long time.
Q6: Any optional version for the product?
A: Yes, such as the android board models, RAM/ROM, OS Version, LCD module size, touch or not, brightness, WIFI/BT LAN and 4G, GPS etc.
Q7: How is your warranty policy?
WELCOME TO INQUIRE US FOR ANY PRODUCTS!
