Product Details:
|
Product Type: | Embedded Advertising AIO Machine | CPU: | Rockchip RK3288 Quad-core Cortex-A17 |
---|---|---|---|
GPU: | Quad-core GPU Mali-T764, UP To 1.8GhZ | RAM: | 2G/4G Optional |
Built-in Storage Capacity: | EMMC 16G/32G/64G Optional | Display Ports: | MIPI, EDP |
Touch Screen: | USB Or I2C Touch Panel | Connection: | WIFI, LAN, BT, 4G Optional |
RTC: | Real Time Clock Supported | Android OS: | Android 7.1 9.0 10.0 Etc. |
High Light: | 8 Inch Screen embedded system board,Android LCD embedded system board,LCD Monitor Android embedded board |

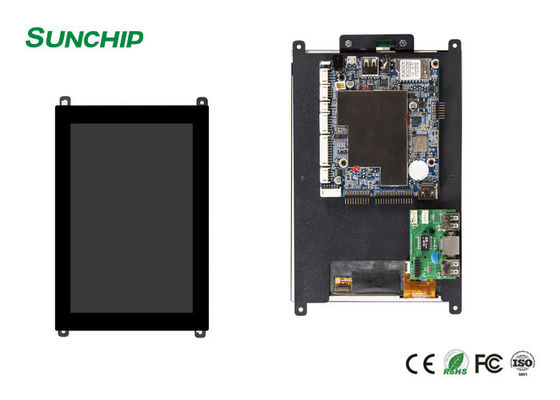

Industrial android embedded system board 8-inch Embedded Control Panel LCD Touch Monitor Screen Module, 7inch 10.1inch
RK3288 Solution, Model AD-Z37M, Matched with 7inch, 8inch, 10.1inch LCD Module
1, HD, multi-interface Android LCD module Easy for development and backstage management
3, Small-Medium size, Cheap, Flexible & Easy-to-Modify Embedded Solution
Overview:
The intelligent industrial all-in-one board adopts the Rockchip RK3288 quad-core chip solution and supports Android 8.0 and above systems.
Powerful computing power. Support H.265 4K video playback. Rich interface, enhanced power management circuit.
It is suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machine, educational video terminal and so on.
Key Features:
1, Support 7-inch to 84-inch various LVDS interface displays (point-to-point full HD display 1920*1080).
2, Support EDP interface display screen.
3, Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
4, Multiple network interfaces: Ethernet, wireless WIFI, Bluetooth.
5, Multi-channel USB interface, serial port.
6, Support 4K video playback and HDMI 2.0 high-definition output.
7, Strong anti-electromagnetic interference and electromagnetic compatibility.
PRODUCT INFORMATION:
Basic hardware specifications:
CPU | Rockchip RK3288 quad-core Cortex-A17 quad-core GPU Mali-T764 |
Frequency | 1.8 GHz |
RAM | LPDDR3 2G/4G Optional |
Built-in storage capacity | EMMC 16G/32G/64G optional(defaulted 16GB) |
Display interface | MIPI, Max. 1920*1080P. |
EDP, max. resolution 4K | |
Mainboard backlight | Support 3.3V/5V/12V Optional |
Touch screen |
Provides I2C interface (can support multi-point resistance touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point sound wave touch, multi-point optical touch. |
Network | With RJ45 interface, support 10/100 Ethernet. |
With Wifi & BT module, support Wi-Fi 802.11b / g / n / ac protocol(optional) Support BT4.0 | |
Image rotation | Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function |
Real Time Clock | Built-in real-time clock powered battery |
Interface device | Support MIPI Camera |
4 USB HOST,1 USB OTG (Support usb camera @500W, usb printer, U disk, mouse, keyboard, standard usb peripherals) | |
Serial ports x 3. Support external serial device module (3G module, NFC module, printer, card reader, etc.) | |
SD card, maximum support 32GB | |
Class D power amplifier: 1.5W * 2 8 Europe, support for the microphone | |
HDMI 2.0 output format | |
Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP |
Video | Support 2160P @ 24FPS decoding such as H.264, MPEG2, VP6, VP8, MVC and other video formats. YouTube and other online video, up to 1080P, HTML5 video playback, Flash10.1 play |
Picture | Support JPG, BMP, PNG and other picture formats to browse and support the rotation / slide show / picture zoom |
Power Adapter | Input:AC100-240V.50-60HZ, Ouput: DC12V 3A |
Basic software specifications:
Operating system | Above Google Android 7.1 9.0 10.0 etc. |
Basic software functions | Web browsing, web chat, e-mail, e-books, and resource managers |
Sound mode | Clock, alarm clock, calculator, recording |
Language support | Multi-lingual |
Recording | Support MP3, WMA format recording |
Tool | Calendar |
Alarm Clock | |
Calculator | |
Note | |
Weather + clock | |
Recording | |
Document processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
Ebook | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
Schedule | Calendar |
Input | Standard Andriod keyboard, optional third party input method (Chinese, Korean, Japanese, etc.) |
Internet | Browser -ChromeLite |
GOOGLE Market | |
Gmail | |
Google talk | |
System Management | APK Installer |
Original eco-Android system, open root privileges, can be customized product development | |
Real-time remote monitoring, system crash since recovery, 7 * 24 hours unattended | |
System setting | |
Google Maps | |
Global time | |
Support OTA remote upgrade | |

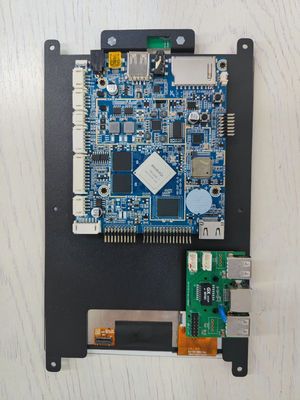

PRODUCT PICTURES:
Interaction Method |
Touch screen | 10-point capacitive touch (optional) | ||||||||||||
Display | LCD panel | 7" IPS screen, 8inch, 10.1inch | ||||||||||||
Resolution | 1280*800 | |||||||||||||
Viewable Area | 150.72(H)x94.2mm(V),depends on different lcd panel size | |||||||||||||
Viewing Angle | 85/85/85/85 | |||||||||||||
Contrast Ratio | 800 | |||||||||||||
Luminance | 300cd/m2(optional) | |||||||||||||
Aspect Ratio | 16:10 | |||||||||||||
Key | Supports three keys | Power button, volume +, volume - (default no button board) | ||||||||||||
Installation | Installation method | Screw fixing hole embedded installation (can be customized according to the actual use environment of customers) |
||||||||||||
Accessories | Adapter | Power adapter 12V/2A | ||||||||||||
Antenna | Built-in 2-in-1 WIFI/BT antenna | |||||||||||||
Package | Neutral package |
FAQ:
Q1: I need large quantities, so, can I have lower price?
A: We will lower your cost if you can order large quantities at a time, please contact our us for details.
Q2: Can you modify the standard product?
A: Sure, please submit your technical requirement and order quantity, we will modify the
product after audit.
Q3: Can we cooperate for customized project?
A: Yes. Sunchip is a company which support OEM/ODM service. We often deal with special case.
Q4: Can I pre-install APPs?
A: Sure, we can pre-install customers’ APP into the Android System.
Except for pre-install APPs, Sunchip also support to customize the boot logo and animation, revise the system model number and build number, set defaulted time zone and language etc.
Q5: How is the stability of product?
A: Our Android LCD is usually used in retailing and industrial grade/application;
It can work 7*24h without crash.
The 4G or Wi-Fi or Ethernet can also work stable for long time.
Q6: Any optional version for the product?
A: Yes, such as the android board models, RAM/ROM, OS Version, LCD module size, touch or not, brightness, WIFI/BT LAN and 4G, GPS etc.
Q7: How is your warranty policy?
A: 12-month.
