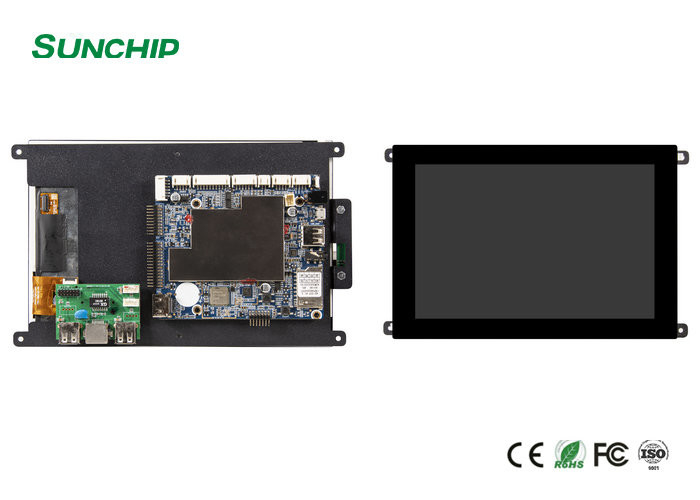

Android Embedded System Board 7 Inch LCD Module Touch Screen With Driver

Android Embedded System Board 7 Inch LCD Module Touch Screen With Driver
Android Embedded System Board 7 Inch LCD Module Touch Screen With Driver
Android Embedded System Board 7 Inch LCD Module Touch Screen With Driver Android Embedded System Board 7 Inch LCD Module Touch Screen With Driver Android Embedded System Board 7 Inch LCD Module Touch Screen With Driver Android Embedded System Board 7 Inch LCD Module Touch Screen With Driver

Large Image :  Android Embedded System Board 7 Inch LCD Module Touch Screen With Driver

Product Details:
Place of Origin: CHINA
Brand Name: SUNCHIP, ADW
Model Number: AD-07E, AD-08E, AD-101E
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton Box or Wooden Box
Delivery Time: Samples: 1-3 days; MP: 25 days;
Payment Terms: T/T, Western Union
Supply Ability: 30,000PCS

Android Embedded System Board 7 Inch LCD Module Touch Screen With Driver

Description
Product Type: Android Embedded Board +TFT Module Display Size: 7inch, 8inch, 10.1inch
Resolution: 1280*800 Touch Panel: 10-Point Capacitive Touch, Non-touch Optional
CPU: RKPX30, But RK3566 RK3568, RK3288, RK3399, RK3188, RK3128 For Options RAM: 1GB/2GB
ROM: 8GB/16GB/32GB/64GB OS: Android 5.1-11.0
Connection: WIFI, LAN, BT, 4G Optional Brightness: 300nits, Optional
Backlight: LED Material: Metal
High Light:

LVDS MIPI Embedded System board

,

LCD Module Embedded System board

,

7 Inch LCD Android Embedded board



Android Embedded System board 7 Inch LCD Module Touch Screen with Driver androidf Board 8inch 10.1inch WIFI BT LAN 4G







1, HD, multi-interface Android LCD module Easy for development and backstage management

Support System Customization Support OTA update


2, Android LCD is a new model Android LCD by Sunchip. It is equipped with android embedded board, then, standard configuration is with 7 inch IPS capacitive touch screen, or 8inch, 10.1inch etc. different size, the PCB board integrates a variety of peripheral interfaces.



3, Small-Medium size, Cheap, Flexible & Easy-to-Modify Embedded Solution









SHENZHEN SUNCHIP TECHNOLOGY CO., LTD

Quad-core RK-PX30 Android decoding driver





Overview:

Android integrated board, using Rockchip PX30 quad-core chip solution, support Android 8.0 system. Supports the decoding of the popular audio & video formats and images. The multi interface makes the product in common use and is widely used in intelligent control fields such as advertising machines, all-in-one PC, security, industrial and so on.







1, Support Dual LVDS; MIPI; display interface; support 7 inch to 10.1-inch Dual LVDS display interface (point-to-point full HD display 1920*1080).



2, Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.



3, Multiple network interfaces: Ethernet, wireless Wi-fi, Bluetooth.



4, Multi-channel USB interface, serial port, IO port output.



5, Strong resistance to electromagnetic interference and electromagnetic compatibility.









PRODUCT INFORMATION:

Android Embedded System Board 7 Inch LCD Module Touch Screen With Driver 0



Android Embedded System Board 7 Inch LCD Module Touch Screen With Driver 1

CPU Rockchip PX30 Quad-core Cortex-A35 Mali-G31 MP2 GPU
Frequency 1.5GHz
RAM DDR3 1G/2G optional
ROM EMMC 8GB/16G/32G/64G optional (default: 8GB)
Display interface LVDS optional
MIPI optional
Touch Screen Support USB IR multi touch, sonic multi touch, optical multi touch





Network RJ45 interface, ethernet 10/100M

WIFI& BT: support Wi-Fi 802.11b/g/n/, and support BT4.0 support

(optional WIFI 802.11 a/b/g/n/ac 5G&2.4G)

RTC Built in internal battery for Real time clock
Interfaces Support USB camera
3*USB HOST,1*USB OTG
3*Serial ports, support external devices (NFC module, printer, card reader etc.)
Support MIPI camera, max 8MP
D classamplifier,5W*2 8R
support microphone *1





Audio MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP format
Video Support H.264, MPEG2, VP6, VP8, MVC, 2160P@24FPS decoding. on-line video such as YouTube, max support 4K,HTML5 playback,Flash10.1 playback
Images Support JPG,BMP,PNG etc. picture formats, browse, orientation, slides, magnify
Power supply input:AC100-240V.50-60HZ, output: DC12V-3A





Interaction
Method
Touch screen 10-point capacitive touch (optional)
Display LCD panel 7" IPS screen, 8inch, 10.1inch, etc.
Resolution 1280*800
Viewable Area 150.72(H)x94.2mm(V)
Viewing Angle 85/85/85/85
Contrast Ratio 800
Luminance 300cd/m2(optional)
Aspect Ratio 16:10

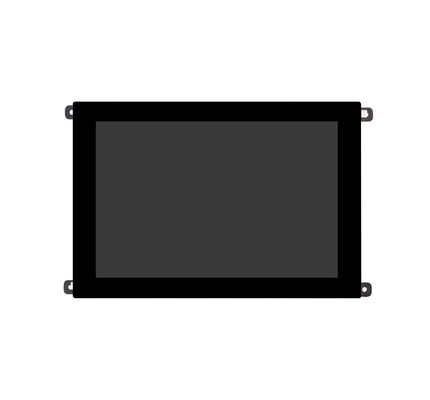

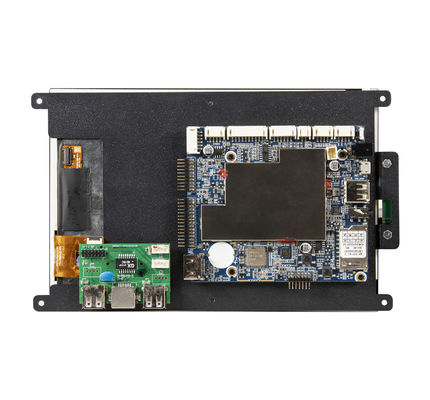

PRODUCT PICTURES:



Android Embedded System Board 7 Inch LCD Module Touch Screen With Driver 2



Android Embedded System Board 7 Inch LCD Module Touch Screen With Driver 3



FAQ:

Q1: I need large quantities, so, can I have lower price?

A: We will lower your cost if you can order large quantities at a time, please contact our us for details.



Q2: Can you modify the standard product?

A: Sure, please submit your technical requirement and order quantity, we will modify the

product after audit.



Q3: Can we cooperate for customized project?

A: Yes. Sunchip is a company which support OEM/ODM service. We often deal with special case.



Q4: Can I pre-install APPs?

A: Sure, we can pre-install customers’ APP into the Android System.

Except for pre-install APPs, Sunchip also support to customize the boot logo and animation, revise the system model number and build number, set defaulted time zone and language etc.



Q5: How is the stability of product?

A: Our Android LCD is usually used in retailing and industrial grade/application;

It can work 7*24h without crash.

The 4G or Wi-Fi or Ethernet can also work stable for long time.



Q6: Any optional version for the product?

A: Yes, such as the android board models, RAM/ROM, OS Version, LCD module size, touch or not, brightness, WIFI/BT LAN and 4G, GPS etc.



Q7: How is your warranty policy?

A: 12-month.
