Product Details:
Place of Origin: CHINA
Brand Name: SUNCHIP, ADW
Model Number: AD-07E AD-08E AD-101E
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton Box or Wooden Box
Delivery Time: Samples: 1-3 days; MP: 25 days;
Payment Terms: T/T, Western Union
Supply Ability: 30,000PCS

Sunchip ADW Embedded Advertising AIO Machine 7'' Android Embedded Device RTC Battery

Description
CPU/GPU: Rockchip PX30 Quad-core Cortex-A35 Mali-G31 MP2 GPU RAM: 1G/2G Optional (default: 1GB)
ROM: 8GB/16G/32G/64G Optional (default: 8GB) Product Type: Embedded Advertising AIO Machine
Display: LVDS, MIPI Connection: WIFI, LAN, BT, 4G Optional
Product Description: 7'' Android Embedded Device LCD Panel Size: 7-inch
Resolution: 1280*800 Touch Panel: 10-Point Capacitive Touch
OS: Android 8.1 Version RTC: Support RTC Battery
High Light:

PX30 Embedded advertising AIO machine

,

RTC battery Android Embedded Device

,

LVDS MIPI Android Embedded Device





Sunchip ADW Embedded advertising AIO machine 7" / 8'' / 10.1'' Android Embedded Device with Embedded System Board WIFI





Overview:

Android integrated board, using Rockchip PX30 quad-core chip solution, support Android 8.0 system. Supports the decoding of the popular audio & video formats and images. The multi interface makes the product in common use and is widely used in intelligent control fields such as advertising machines, all-in-one PC, security, industrial and so on.





Key Features:



1, Support Dual LVDS; MIPI; display interface; support 7 inch to 10.1-inch Dual LVDS display interface (point-to-point full HD display 1920*1080).



2, Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.



3, Multiple network interfaces: Ethernet, wireless Wi-fi, Bluetooth.



4, Multi-channel USB interface, serial port, IO port output.



5, Strong resistance to electromagnetic interference and electromagnetic compatibility.









PRODUCT INFORMATION:



System CPU Rockchip RK-PX30 Quad-core Cortex-A35 Mali-G31 MP2 GPU
Frequency 1.5GHZ
RAM 1GB(optional)
Internal storage 8GB(optional)
Operating System Android 8.0
Interaction
Method
Touch screen 10-point capacitive touch (optional)
Display LCD panel 7" IPS screen
Resolution 1280*800
Viewable Area 150.72(H)x94.2mm(V)
Viewing Angle 85/85/85/85
Contrast Ratio 800
Luminance 300cd/m2(optional)
Aspect Ratio

16:10





Network WiFi 802.11b/g/n
Bluetooth Bluetooth 4.0
Ethernet 10M/100M network port
Interface USB_A*3 USB host*3
Mini USB Mini USB OTG
SD card SD card port*1, support 64G
RJ45 Ethernet port
DC DC power 12V input
Headphone 3.5mm stereo headphone output





Media play Video format MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 1920x1080p
Audio format MP3/WMA/AAC etc.
Image format jpeg
Other UART Support UART communication expansion port*3 groups
Speaker Support 5W*2 dual channel speaker interface 1 group
Camera Support MIPI camera interface a group of up to 8MP
MIC Support a set of MIC interface
Battery Built-in clock-powered battery
Operating temperature 0°C-50°C
OSD language Multiple languages
Key Supports three keys Power button, volume +, volume - (default no button board)





Installation Installation method Screw fixing hole embedded installation
(can be customized according to the actual use environment of customers)
Accessories Adapter Power adapter 12V/2A
Antenna Built-in 2-in-1 WIFI/BT antenna
Package Neutral package









Product Size, unit:mm
Single machine size Color box size Carton: 4 pcs/CTN
L W H L W H L W H
188mm 105mm 21mm
Net(kg)     Net(kg)     Net
            G.W





Interaction
Method
Touch screen 10-point capacitive touch (optional)
Display LCD panel 7" IPS screen, 8inch, 10.1inch
Resolution 1280*800
Viewable Area 150.72(H)x94.2mm(V)
Viewing Angle 85/85/85/85
Contrast Ratio 800
Luminance 300cd/m2(optional)
Aspect Ratio 16:10







Optional for andrdoid board models, lcd panel size, touch or not, small button board, etc.

Others not metioned in this sheet, please directly contact us!









PRODUCT PICTURES FROM SUNCHIP:

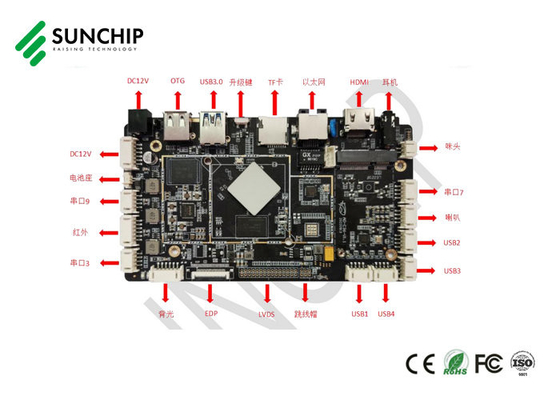

Sunchip ADW Embedded Advertising AIO Machine 7'' Android Embedded Device RTC Battery 0

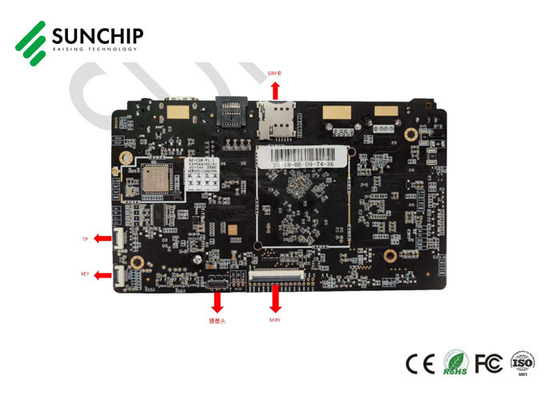

Sunchip ADW Embedded Advertising AIO Machine 7'' Android Embedded Device RTC Battery 1
