Product Details:
|
| Product Description: | 7'' 8'' 10.1'' Android Embedded Device | Resolution: | 1280*800 |
|---|---|---|---|
| Touch Panel: | 10-Point Capacitive Touch | Product Type: | Embedded Advertising AIO Machine |
| CPU: | RK3566, But Optionals For RK3568, RK3288, RK3399, RKPX30 Etc. | RAM: | 2GB |
| ROM: | 16GB/32GB/64GB | OS: | Android 11.0 |
| High Light: | EDP interface Android Embedded Device,RK3568 Android Embedded Device,PX30 embedded android hardware |
||
Flexible Android Embedded Device 7Inch 8inch 10.1inch RK3566 RK3568 PX30 Capacitive Touch screen Industrial LCD Module
Small-Medium size, Cheap, Flexible & Easy-to-Modify Embedded Solution
Android Flexible Embedded Solution 7inch RK3399 RK3288 RK3566 RK3568 PX30 Embedded System Board Assembly Kit with touch
The intelligent industrial all-in-one board adopts the Rockchip RK3566 quad-core chip solution and supports the Android 11 system. Powerful computing power. Support multiple types of display interface, rich peripheral interface, enhanced power management circuit. Suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machines, educational video terminals and other equipment.
1, Support 7-inch to 84-inch various LVDS interface displays (point-to-point full HD display 1920*1080).
2, Support EDP interface display screen.
3, Support MIPI interface display screen.
4, Support HDMI 2.0 high-definition output.
5, Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
6, Multiple network interfaces: Ethernet, wireless WIFI, Bluetooth.
7, Multi-channel USB interface, serial port.
8, Strong anti-electromagnetic interference and electromagnetic compatibility.
PRODUCT INFORMATION:
| System | CPU | Rockchip RK3566 Quad-core 64-bit Cortex-A55 GPU Mali-G52 | ||||||||||||
| Frequency | 1.8GHZ | |||||||||||||
| RAM | 2GB(optional) | |||||||||||||
| Internal storage | 16GB(optional) | |||||||||||||
| Operating System | Android 11.0 | |||||||||||||
| Interaction Method |
Touch screen | 10-point capacitive touch (optional) | ||||||||||||
| Display | LCD panel | 7" IPS screen | ||||||||||||
| Resolution | 1280*800 | |||||||||||||
| Viewable Area | 150.72(H)x94.2mm(V) | |||||||||||||
| Viewing Angle | 85/85/85/85 | |||||||||||||
| Contrast Ratio | 800 | |||||||||||||
| Luminance | 300cd/m2(optional) | |||||||||||||
| Aspect Ratio |
16:10 |
|||||||||||||
| Network | WiFi | 802.11b/g/n | ||||||||||||
| Bluetooth | Bluetooth 4.0 | |||||||||||||
| Ethernet | 10M/100M network port | |||||||||||||
| Interface | USB_A*3 | USB host*3 | ||||||||||||
| Mini USB | Mini USB OTG | |||||||||||||
| SD card | SD card port*1, support 64G | |||||||||||||
| RJ45 | Ethernet port | |||||||||||||
| DC | DC power 12V input | |||||||||||||
| Headphone | 3.5mm stereo headphone output | |||||||||||||
| Media play | Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 1920x1080p | ||||||||||||
| Audio format | MP3/WMA/AAC etc. | |||||||||||||
| Image format | jpeg | |||||||||||||
| Other | UART | Support UART communication expansion port*3 groups | ||||||||||||
| Speaker | Support 5W*2 dual channel speaker interface 1 group | |||||||||||||
| Camera | Support MIPI camera interface a group of up to 8MP | |||||||||||||
| MIC | Support a set of MIC interface | |||||||||||||
| Battery | Built-in clock-powered battery | |||||||||||||
| Operating temperature | 0°C-50°C | |||||||||||||
| OSD language | Multiple languages | |||||||||||||
| Key | Supports three keys | Power button, volume +, volume - (default no button board) | ||||||||||||
| Installation | Installation method | Screw fixing hole embedded installation (can be customized according to the actual use environment of customers) |
||||||||||||
| Accessories | Adapter | Power adapter 12V/2A | ||||||||||||
| Antenna | Built-in 2-in-1 WIFI/BT antenna | |||||||||||||
| Package | Neutral package | |||||||||||||
| Interaction Method |
Touch screen | 10-point capacitive touch (optional) | ||||||||||||
| Display | LCD panel | 7" IPS screen | ||||||||||||
| Resolution | 1280*800 | |||||||||||||
| Viewable Area | 150.72(H)x94.2mm(V) | |||||||||||||
| Viewing Angle | 85/85/85/85 | |||||||||||||
| Contrast Ratio | 800 | |||||||||||||
| Luminance | 300cd/m2(optional) | |||||||||||||
| Aspect Ratio | 16:10 | |||||||||||||
| Product Size, unit:mm | ||||||||
| Single machine size | Color box size | Carton: 4 pcs/CTN | ||||||
| L | W | H | L | W | H | L | W | H |
| 188mm | 105mm | 21mm | ||||||
| Net(kg) | Net(kg) | Net | ||||||
| G.W | ||||||||

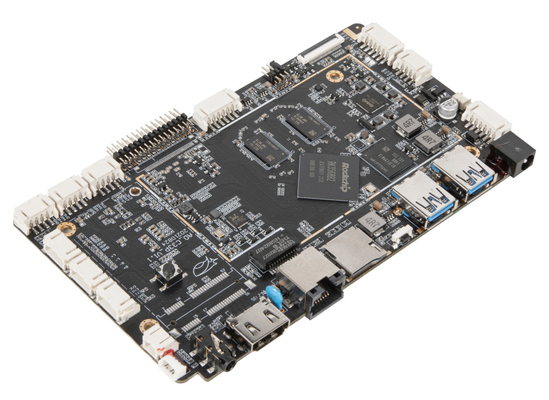

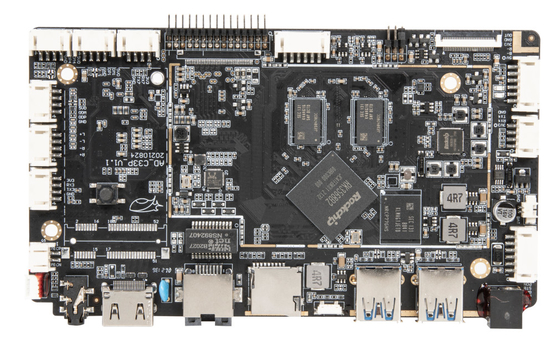

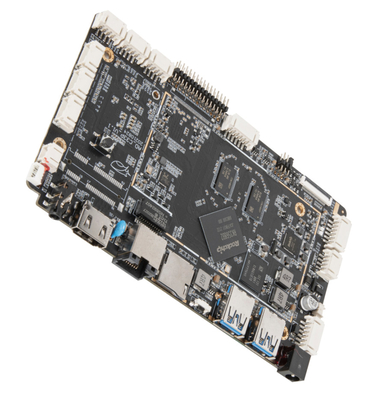

PRODUCT PICTURES FROM SUNCHIP:
Sunchip is one of Apple's providers and Tesla.
We are professional manufacturer, designer and solution company that established in 2012, dedicated to the development of embedded motherboards, software and hardware, and finished product manufacturing, as well as digital signage retail solutions.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
1. So far, there are more than 10 years of PCBA design and production experience.
In 2022, we had the 10th Anniversary Celebration.
2. A R&D team with more than 80 people, including hardware engineers (layout boards, debugging, etc.), software engineers (driver, kernel, test and apk engineers), ID design, mechanical design engineers, support OEM/OEM
3. The whole team has about 160 people.
4. One-stop service: product definition, schematic design, PCB layout design,
prototype, production, PCBA SMT, test production, housing design, assembly, software customization, QC control, after-sales etc.
5. Passed ISO9001 factory certification
6. There are more than 3,800 square meters of office and workshop area, which is still expanding.
We mainly manufacture
1, Android board for industrial digital signage,
(RK3288, RK3399, RK3328, RKPX30, RK3188, RK3128, RK3566 and RK3568, ...)
2, Android digital signage media player box, (RK3328, RK3288, RK3399)
3, Stretched lcd display signage,
4, Open frame lcd display signage, (Such as, 10.1’’, 15.6’’, 21.5’’, …)
5, Other types wall/desktop/standing lcd digital signage, (from 7’’ to 84’’, ...)
6, Embedded touch desk, (Such as, 32-inch, ...)
7, Face recognition temperature detection and attendance equipment, (8-inch)
8, CMS system. (Publish contents/programs by remotely.)
WELCOME TO INQUIRE US FOR ANY PRODUCTS!
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
