Product Details:
|
| Product Type: | Embedded Advertising AIO Machine | Product Description: | 7'' 8'' 10.1'' Android Embedded Device |
|---|---|---|---|
| LCD Panel Size: | 7inch, 8inch, 10.1inch | Resolution: | 1280*800 |
| Touch Panel: | 10-Point Capacitive Touch | CPU: | RKPX30, But Optional For RK3566, RK3568, RK3288, RK3399, Etc. |
| RAM: | 1GB/2GB | ROM: | 8GB/16GB/32GB/64GB |
| OS: | Android 5.1-11.0 | Connection: | WIFI, LAN, BT, 4G Optional |
| High Light: | Android 7'' Embedded System Board,Dual LVDS Embedded System Board,LVDS MIPI android embedded board |
||
Sunchip Android Embedded System Board Flexible Industrial LCD Module touch screen 7'' RK3399 RK3288 PX30 8inch 10.1''
Small-Medium size, Cheap, Flexible & Easy-to-Modify Embedded Solution
Android integrated board, using Rockchip PX30 quad-core chip solution, support Android 8.0 system. Supports the decoding of the popular audio & video formats and images. The multi interface makes the product in common use and is widely used in intelligent control fields such as advertising machines, all-in-one PC, security, industrial and so on.
1, Support Dual LVDS; MIPI; display interface; support 7 inch to 10.1-inch Dual LVDS display interface (point-to-point full HD display 1920*1080).
2, Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.
3, Multiple network interfaces: Ethernet, wireless Wi-fi, Bluetooth.
4, Multi-channel USB interface, serial port, IO port output.
5, Strong resistance to electromagnetic interference and electromagnetic compatibility.
PRODUCT INFORMATION:
| System | CPU | Rockchip RK-PX30 Quad-core Cortex-A35 Mali-G31 MP2 GPU | ||||||||||||
| Frequency | 1.5GHZ | |||||||||||||
| RAM | 1GB(optional) | |||||||||||||
| Internal storage | 8GB(optional) | |||||||||||||
| Operating System | Android 8.0 | |||||||||||||
| Interaction Method |
Touch screen | 10-point capacitive touch (optional) | ||||||||||||
| Display | LCD panel | 7" IPS screen | ||||||||||||
| Resolution | 1280*800 | |||||||||||||
| Viewable Area | 150.72(H)x94.2mm(V) | |||||||||||||
| Viewing Angle | 85/85/85/85 | |||||||||||||
| Contrast Ratio | 800 | |||||||||||||
| Luminance | 300cd/m2(optional) | |||||||||||||
| Aspect Ratio |
16:10 |
|||||||||||||
| Network | WiFi | 802.11b/g/n | ||||||||||||
| Bluetooth | Bluetooth 4.0 | |||||||||||||
| Ethernet | 10M/100M network port | |||||||||||||
| Interface | USB_A*3 | USB host*3 | ||||||||||||
| Mini USB | Mini USB OTG | |||||||||||||
| SD card | SD card port*1, support 64G | |||||||||||||
| RJ45 | Ethernet port | |||||||||||||
| DC | DC power 12V input | |||||||||||||
| Headphone | 3.5mm stereo headphone output | |||||||||||||
| Media play | Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 1920x1080p | ||||||||||||
| Audio format | MP3/WMA/AAC etc. | |||||||||||||
| Image format | jpeg | |||||||||||||
| Other | UART | Support UART communication expansion port*3 groups | ||||||||||||
| Speaker | Support 5W*2 dual channel speaker interface 1 group | |||||||||||||
| Camera | Support MIPI camera interface a group of up to 8MP | |||||||||||||
| MIC | Support a set of MIC interface | |||||||||||||
| Battery | Built-in clock-powered battery | |||||||||||||
| Operating temperature | 0°C-50°C | |||||||||||||
| OSD language | Multiple languages | |||||||||||||
| Key | Supports three keys | Power button, volume +, volume - (default no button board) | ||||||||||||
| Installation | Installation method | Screw fixing hole embedded installation (can be customized according to the actual use environment of customers) |
||||||||||||
| Accessories | Adapter | Power adapter 12V/2A | ||||||||||||
| Antenna | Built-in 2-in-1 WIFI/BT antenna | |||||||||||||
| Package | Neutral package | |||||||||||||
| Product Size, unit:mm | ||||||||
| Single machine size | Color box size | Carton: 4 pcs/CTN | ||||||
| L | W | H | L | W | H | L | W | H |
| 188mm | 105mm | 21mm | ||||||
| Net(kg) | Net(kg) | Net | ||||||
| G.W | ||||||||

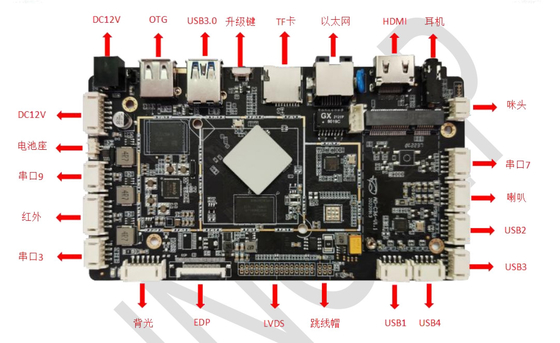

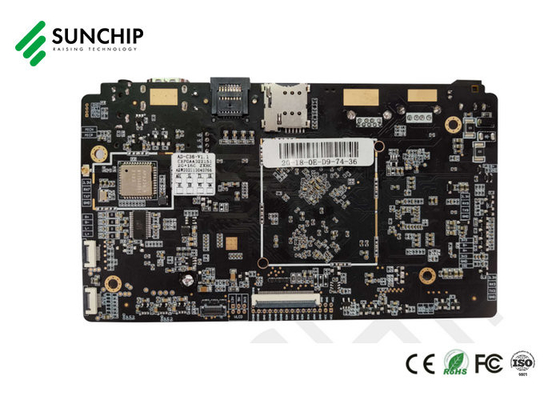

PRODUCT PICTURES FROM SUNCHIP:
Sunchip is one of Apple's providers and Tesla.
We are professional manufacturer, designer and solution company that established in 2012, dedicated to the development of embedded motherboards, software and hardware, and finished product manufacturing, as well as digital signage retail solutions.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
1. So far, there are more than 10 years of PCBA design and production experience.
In 2022, we had the 10th Anniversary Celebration.
2. A R&D team with more than 80 people, including hardware engineers (layout boards, debugging, etc.), software engineers (driver, kernel, test and apk engineers), ID design, mechanical design engineers, support OEM/OEM
3. The whole team has about 160 people.
4. One-stop service: product definition, schematic design, PCB layout design,
prototype, production, PCBA SMT, test production, housing design, assembly, software customization, QC control, after-sales etc.
5. Passed ISO9001 factory certification
6. There are more than 3,800 square meters of office and workshop area, which is still expanding.
We mainly manufacture
1, Android board for industrial digital signage,
(RK3288, RK3399, RK3328, RKPX30, RK3188, RK3128, RK3566 and RK3568, ...)
2, Android digital signage media player box, (RK3328, RK3288, RK3399)
3, Stretched lcd display signage,
4, Open frame lcd display signage, (Such as, 10.1’’, 15.6’’, 21.5’’, …)
5, Other types wall/desktop/standing lcd digital signage, (from 7’’ to 84’’, ...)
6, Embedded touch desk, (Such as, 32-inch, ...)
7, Face recognition temperature detection and attendance equipment, (8-inch)
8, CMS system. (Publish contents/programs by remotely.)
