Product Details:
|
| Item Condition: | All New | CPU: | Rockchip RK3188 Quad-core Cortex-A9 |
|---|---|---|---|
| GPU: | Mail-400 @ 533MHz | RAM: | DDR3 1G/2G Optional |
| Internal Storage Capacity: | NAND FLASH 8GB/16G/32G Optional（label 8GB，support EMMC） | Screen Interface: | LVDS |
| Working Temperature: | -10°C~50°C | Warranty: | 1 Year |
| High Light: | Decoding Driver All in One Board,LVDS Interface All in One Board,RK3188 Industrial Main Board |
||

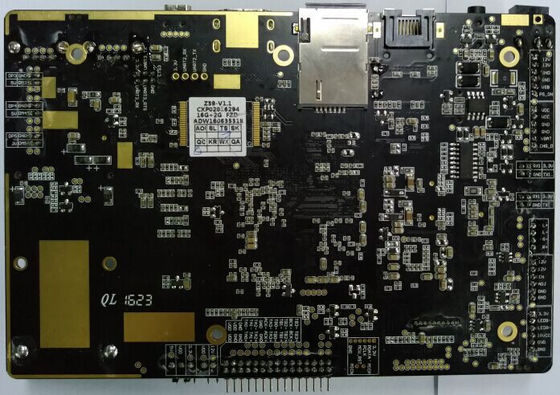

Intelligent Rockchip Quad-core RK3188 LVDS Ethernet Android Decoding Driver All-in-One Board
Quad-core RK3188 Android decoding driver all-in-one board
Model: AD-Z39-V1.1
Product Overview
Intelligent industrial all-in-one large board with Rockchip RK3188 quad-core chip solution. Support Google Android 4.4 and above system. Enhanced power management circuit. With 3G data communication, support common external devices. Rich interface and stable performance. Suitable for intelligent remote network control: class industrial, medical, large advertising machines, educational video terminals and other equipment.
Characteristics
1. Support all kinds of LVDS interface displays from 7" to 84" (point to point full HD display 1920*1080).
2. Multiple interaction mode interfaces: capacitive touch, infrared touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
3. Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth, 3G data communication.
4. Multiple USB interface, serial port, IO port, I2C, power output.
5. Strong anti-electromagnetic interference and electromagnetic compatibility.
Basic Hardware Specifications
| CPU | Rockchip RK3188 Quad-core Cortex-A9 Quad-core GPU Mail-400 @ 533MHz |
| Frequency | 1.6 GHz |
| RAM | DDR3 1G/2G optional |
| Internal storage capacity | NAND FLASH 8GB/16G/32G optional(label 8GB,support EMMC) |
| Screen Interface | LVDS interface (single, 6-bit dual, 8-bit dual) Support maximum resolution 1920x1080, support 7"-82" display |
| On-board backlighting | Support 3.3V/5V/12V optional |
| Touch Screen |
Provide I2C interface (support multi-point resistive touch, multi-point capacitive touch) Support USB multi-point infrared touch, multi-point acoustic touch, multi-point optical touch. |
| Network | With RJ45 interface, supporting Ethernet. |
| With wifi & BT module, support Wi-Fi 802.11b/g/n protocol. Support BT3.0 or BT4.0 | |
| 3G data function, support WCDMA, EVDO, CDMA, GSM), 2G/3G full band support 850/900/1800/1900MHz/2100MHz | |
| Image Rotation | Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function |
| Real Time Clock | Built-in real-time clock powered battery |
| System Watchdog | Support software, hardware watchdog |
| Interface Device | Support DVP interface camera, support up to 500W pixels |
| USB camera support | |
| Support HD 1.3 1080P output | |
| 5 group of USB HOST,1 group of USB OTG | |
| 3 groups of serial ports. Support external serial device modules (3G module, NFC module, printer, card swiper, etc.) | |
| TF card,supports up to 32GB | |
| Class D amplifier: 7.5W*2 (max) 8 ohms, microphone support | |
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format |
| Video | Support H.264,VP8,RV,WMV,AVS,H.263,MPEG4 and other video formats 1080P decoding, online video, up to 1080P, HTML5 video playback |
| Picture | Support JPG, BMP, PNG and other image formats to browse and support rotation / slideshow / picture zoom function |
| Power adapter | Input:AC100-240V.50-60HZ, Output: DC12V 3A |
Basic Software Specifications
| Operating System | Google Android 4.2,4.4 |
| Language | Multilingual |
| System Management | Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation) |
| Original Android system with open root access for product customization and development | |
| Support three screen display output at the same time | |
| Customizable local or remote server management system | |
| Support multiple third-party Android remote ad distribution systems | |
| Support multi-channel serial devices, USB devices, IO control devices |
