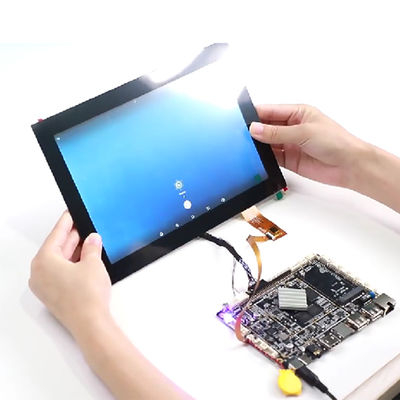

RK3566 Android 11 Arm Board With 7 Inch MIPI LCD Screen Advertising Display Kit

RK3566 Android 11 Arm Board With 7 Inch MIPI LCD Screen Advertising Display Kit
RK3566 Android 11 Arm Board With 7 Inch MIPI LCD Screen Advertising Display Kit
RK3566 Android 11 Arm Board With 7 Inch MIPI LCD Screen Advertising Display Kit RK3566 Android 11 Arm Board With 7 Inch MIPI LCD Screen Advertising Display Kit RK3566 Android 11 Arm Board With 7 Inch MIPI LCD Screen Advertising Display Kit RK3566 Android 11 Arm Board With 7 Inch MIPI LCD Screen Advertising Display Kit

Large Image :  RK3566 Android 11 Arm Board With 7 Inch MIPI LCD Screen Advertising Display Kit

Product Details:
Place of Origin: Guangdong, China
Brand Name: SUNCHIP
Certification: CE,FCC,ROHS
Model Number: AD-C05
Payment & Shipping Terms:
Minimum Order Quantity: 10 unit
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 5~8 days
Payment Terms: L/C, Western Union, MoneyGram, T/T
Supply Ability: 50000 pcs per month

RK3566 Android 11 Arm Board With 7 Inch MIPI LCD Screen Advertising Display Kit

Description
CPU: RK3566 Quad-core 64-bit Cortex-A55 GPU Mali-G52 Expansion Slots: 1*MINI-PCIE(for 4G) , 1*SIM Card, 1* TF Card
Operating System: Android 11 Ports: Wifi, USB 2.0/3.0, Bluetooth, Display Port, Ethernet, HD
Test Condition: 100% Tested RAM: 2GB
ROM: 16GB, 32GB, 64GB Optional Memory Type: DDR4 2G/4G Optional
Screen Interface: LVDS, EDP, MIPI Optional Certificate: CE, FCC, ROHS, ISO9001
Power Supply: DC12V In
High Light:

FCC RK3566 Android 11 ARM board

,

7Inch LCD Android 11 ARM board

,

MIPI screen controller board

RK3566 Android 11 Armboard With 7 Inch MIPI LCD Screen Advertising Display Kit



Summary

The intelligent industrial all-in-one board adopts the Rockchip RK3566 quad-core chip solution and supports the Android 11 system. Powerful computing power. Support multiple types of display interface, rich peripheral interface, enhanced power management circuit. Suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machines, educational video terminals and other equipment.





Feature

  • Support 7-inch to 84-inch various LVDS interface displays (point-to-point full HD display 1920*1080).
  • Support EDP interface display screen.
  • Support MIPI interface display screen.
  • Support HDMI 2.0 high-definition output.
  • Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
  • Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth.
  • Multi-channel USB interface, serial port.
  • Strong anti-electromagnetic interference and electromagnetic compatibility.
  •

  •

  • Application Field

  • ■ Commercial advertising display machine

    ■ POS machine

    ■ Digital photo frame advertising machine

    ■ Touch all-in-one machine

    ■ Self-service vending machine





    Intelligent industrial POS motherboard, using eight-core chip Qualcomm MSM8953 solution,2.0GHz. Intelligent power management circuit supports commonly used external devices, rich interfaces and stable performance.



    The board supports dual EDP and LVDS and MIPI and HDMI display output interfaces, supports 3G/4G data communication, WIFI/Bluetooth (supports 2.4G/5GWIFI) in one, supports currently popular video and picture format decoding, supports 4K, H .265 hard decoding.



    Support single channel, dual channel,EDP/LVDS display, very suitable for commercial display advertising machine, POS advertising machine, touch all-in-one machine,etc.



Service:

1. PCBA design

2. Housing design

3. Software and hardware customization

4. Logo print on housing

5. Software customization: Booting image, Boot animation,UI, Launcher, APP, Function

6. Good quality products

7. full after-sales service with technology support

8.100% QC check before shipping



Product Picture



RK3566 Android 11 Arm Board With 7 Inch MIPI LCD Screen Advertising Display Kit 0



Basic hardware specifications:



CPU Rockchip RK3566 Quad-core 64-bit Cortex-A55 GPU Mali-G52
Main frequency Up to 1.8GHz
RAM LPDDR4 2G Optional
Built-in storage capacity EMMC 16G/32G/64G Optional

Display interface





LVDS screen interface (single channel, 6-digit dual-channel, 8-digit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display
EDP screen interface
MIPI screen interface
Screen voltage Support 3.3V/5V/12V optional
Touch screen

Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).

Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.

The internet



With RJ45 interface, support 10/100 Ethernet.
Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0
Image rotation Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function
Real Time Clock External real-time clock power supply battery
Interface device Support MIPI interface camera, up to 500W pixels
2 USB HOST (secondary board), 1 USB 3.0 (support usb camera @500W usb printer, U disk, mouse, keyboard, standard USB peripherals)
3 groups of serial ports. Support external serial port device module (3G module, NFC module, printer, card reader, etc.)
SD card, maximum support 32GB
Class D power amplifier: 3W*2 8 ohms, support microphone
HDMI 2.0 output
Audio MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP formats
Video Support 4K 60fps H.265/H.264/VP9 video decoding; support 1080P 100fps H.265/H.264 video encoding; support 8M ISP
Picture Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function
Power Adapter Input: AC100-240V.50-60HZ, output: DC12V 3A




Basic software specifications:



Operating system Android 11
Basic software functions Web browsing, web chat, email, e-book, resource manager
Sound effect mode Clock, alarm clock, calculator, recording
Language support Multi-lingual
Recording Support MP3, WMA format recording
Tool Calendar
Alarm Clock
Calculator
Note
Weather + clock
Recording
Word processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
Ebook PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule Calendar
Input Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)
Network Browser -ChromeLite
GOOGLE Market
Email
Gmail
Google talk
System Management APK installer
Original ecological Android system, open root permission, can carry out product customization development
Real-time remote monitoring, self-recovery from system crashes, 7*24 hours unattended
System setting
Google Maps
Global time
Support OTA remote upgrade


RK3566 Android 11 Arm Board With 7 Inch MIPI LCD Screen Advertising Display Kit 1RK3566 Android 11 Arm Board With 7 Inch MIPI LCD Screen Advertising Display Kit 2RK3566 Android 11 Arm Board With 7 Inch MIPI LCD Screen Advertising Display Kit 3RK3566 Android 11 Arm Board With 7 Inch MIPI LCD Screen Advertising Display Kit 4
