Product Details:
|
| CPU: | Rockchip RK3288 Quad-core Cortex-A17 | GPU: | Quad-core Mail-T764 |
|---|---|---|---|
| Display: | LVDS, EDP Interface. Support The Maximum Resolution1920*1080, 4K | Memory Card Slot: | TF Card |
| Power Supply: | DC 12V | Earphone: | 3.5mm |
| EMMC: | 8GB/16G/32G/64G | Working Temperature: | -10°C To 50°C |
| High Light: | EDP 4K Embedded System Board,LVDS 4K Embedded System Board,OEM Unattended Embedded System Board |
||
Quad-core Rockchip Rk3288 EDP LVDS 4K Embedded System Board Android OEM 7*24 Unattended Mainboard
Quad-core RK3288 Android decoding driver all-in-one board
Model: AD-B02P-V1.0
Product Overview:
RK3288 Android all-in-one board, using Rexchip RK3288 quad-core chip solution, supports Android 5.1 and above. Support the decoding of mainstream audio and video formats and pictures. Support EDP@4K, dual 8-bit LVDS interface 1920*1080, can drive 7" to 82" display. With HDMI interface, support 4K video playback. The rich interface makes the product more versatile and is widely used in advertising machine, all-in-one machine, security, industrial control and other intelligent control fields. Because of its hardware platform and Android intelligence, it can be used as an intelligent terminal platform when human-machine interaction and network device interaction are required.
Feature:
Basic Hardware Specifications:
| CPU | Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764 |
| Main Frequency | 1.8 GHz |
| RAM | LPDDR3 2G/4G optional |
| EMMC | 8GB/16G/32G/64G optional |
| Display Interface | LVDS interface (single, 6-bit dual, 8-bit dual) Support maximum resolution 1920x1080, support 7"-82" screen |
| EDP interface Maximum resolution 4K | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Touch screen | Support I2C touch screen, USB multi-point infrared touch frame, resistive, capacitive touch screen. |
| Network | With RJ45 interface,support10/100M Ethernet |
| With wifi & BT module, support Wi-Fi 802.11b/g/n protocol. Support BT4.0 | |
| With 4G module, support 4G network | |
| Image rotation | Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function (optional) |
| Real Time Clock | External real time clock powered battery |
| Interface Device | Support MIPI camera |
| Support HD output | |
| 5 USB HOST (support usb camera @ 500W usb printer , USB stick , mouse , keyboard standard usb peripherals) | |
| 3 groups of serial ports (1 group UART; 2 groups standard UART or optional RS232) Support external serial devices (NFC module, printer, card swiper, etc.) | |
| 3 IO detection ports | |
| TF Card | |
| D class large built-in speakers, 5W*2 8R | |
| Microphone support | |
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format |
| Video | Support the decoding of H.264,MPEG2,VP6,VP8,MVC for 2160P@24FPS. YouTube and other online video,Maximum resolution 4K,HTML5,Flash10.1 play |
| Picture | Support JPG, BMP, PNG and other image formats to browse and support rotation / slideshow / picture zoom function |
| Power adapter | Input:AC100-240V.50-60HZ, Output: DC12V 3A |
Basic Software Specifications:
| Operating system | Android 5.1 or higher |
| Basic software features | Web browsing, web chat, email, eBooks, Explorer |
| Sound mode | Clock, alarm clock, calculator, recording |
| Language Support | Multilingual |
| Record | Support MP3, WMA format recording 3gpp, amr and other formats, according to the recording APK is not the same, the format is not the same, now the system comes with amr format |
| Tool | Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather+clock | |
| Record | |
| Document processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input | Standard Andriod keyboard with optional third-party input methods (Chinese, Korean, Japanese, etc.) |
| Internet | Browser -ChromeLite |
| Gmail | |
| System management | APK installer |
| Original Android system with open root access for product customization and development | |
| Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended | |
| System setting | |
| Global time | |
| Support OTA remote upgrade |
Sunchip is one of Apple's providers and Tesla.
We are professional manufacturer, designer and solution company that established in 2012, dedicated to the development of embedded motherboards, software and hardware, and finished product manufacturing, as well as digital signage retail solutions.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
1. So far, there are more than 10 years of PCBA design and production experience.
In 2022, we had the 10th Anniversary Celebration.
2. A R&D team with more than 80 people, including hardware engineers (layout boards, debugging, etc.), software engineers (driver, kernel, test and apk engineers), ID design, mechanical design engineers, support OEM/OEM
3. The whole team has about 160 people.
4. One-stop service: product definition, schematic design, PCB layout design,
prototype, production, PCBA SMT, test production, housing design, assembly, software customization, QC control, after-sales etc.
5. Passed ISO9001 factory certification
6. There are more than 3,800 square meters of office and workshop area, which is still expanding.
WELCOME TO INQUIRE US FOR ANY PRODUCTS!
SUNCHIP mainly manufactures:

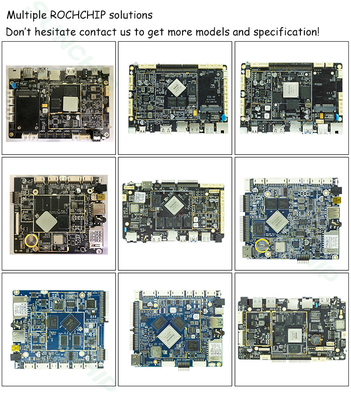

1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
