Product Details:
|
| CPU: | RK3399 Six Core Dual Core Cortex A72+quad Core Cortex A53 | GPU: | Mali-T860 MP4 |
|---|---|---|---|
| RAM: | LPDDR4 4G | ROM: | EMMC 8GB/16G/32G/64G |
| Ethernet: | 10/100 Ethernet | ||
| High Light: | OEM RK3399 Embedded System Board,LVDS EDP Interface Embedded System Board,FCC RK3399 Android Motherboard |
||

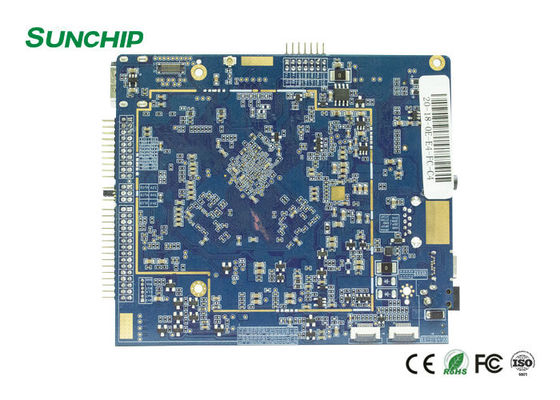

Rockship RK3399 Android System OEM Motherboard With BT & WiFi LVDS EDP Interface
Six-core RK3399 Android decoding driver all-in-one board
Model: AD-K28-V1.2
Intelligent industrial all-in-one board with Rockchip RK3399 six-core chip solution, supporting Google Android 7.0 or above. Powerful computing power. Support H.265 4K video playback. Rich interface and enhanced power management circuit. Suitable for intelligent remote network control: class industrial, medical, large advertising machines, educational video terminals and other equipment.
Characteristics:
1. It supports various LVDS interface displays from 7" to 84" (point-to-point Full HD display 1920*1080) and EDP interface displays.
2. Multiple interaction mode interface: capacitive touch, infrared touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
3. Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth.
4. Multiple USB ports, serial ports, IO ports Output.
5. Supports 4K video playback with HD 2.0 output.
6. Strong resistance to electromagnetic interference and electromagnetic compatibility.
Basic Hardware Specifications
| CPU |
Rockchip RK3399 dual core Cortex-A72+ quad core Cortex-A53 CPU |
| GPU | ARM Mali-T860MP4 GPU |
| RAM | LPDDR4 4G |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional(Label 16GB) |
| Display Interface | LVDS interface (single, 6-bit dual, 8-bit dual). Supports a maximum resolution of 1920x1080, support 7"-84" display |
| EDP screen interface, maximum resolution 4K | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Touch Screen |
Provide I2C interface (multi-point capacitive touch) Support USB multi-point capacitive touch, multi-point infrared touch, multi-point acoustic touch, multi-point optical touch |
| Network | With RJ45 interface, supporting 10/100 Ethernet |
| Wifi & BT module, support Wi-Fi 802.11a/b/g/n/ ac protocol.＆ BT4.0 | |
| Image rotation | Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, gravity sensing function (optional) |
| Real-time clock | External real time clock powered battery |
| Interface Devices | Support MIPI interface camera |
| 6 USB HOST (support usb camera 500W, usb printer, USB stick, mouse, keyboard standard usb peripherals) | |
| 2 sets UART, 1 set SPI or 1 set UART, 2 sets SPI. support external serial devices (NFC module, printer, card swiper, etc.) | |
| SD card, supports up to 64GB | |
| Class D amplifier: 3W*2 8 ohms, microphone support | |
| HD 2.0 output | |
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format |
| Video | Supports 2160P@24FPS decoding of H.264, MPEG2, VP6, VP8, MVC and other video formats. Online videos such as YouTube, up to 4K, HTML5 video playback, Flash 10.1 playback |
| Picture | Support JPG, BMP, PNG, GIF and other picture formats to browse and support the rotation / picture zoom function |
| Power adapter | Input:AC100-240V.50-60HZ, Output: DC12V 3A |
Basic Software Specifications
| Operating System | Android 7.1.2 |
| Basic Software Features | Web browsing, e-mail, e-books, resource management |
| Sound mode | Clock, alarm clock, calculator, recording |
| Voice Support | Multinational voice |
| Recording | Support MP3, WMA format recording |
| Tools | Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather+clock | |
| Recording | |
| File processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input | Standard Andriod keyboard with optional third-party input methods (Chinese, Korean, Japanese, etc.) |
| Internet | Browser -ChromeLite |
| Gmail | |
| System Management | APK installer |
| Original Android system with open root access for product customization and development | |
| Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended | |
| Support OTA remote upgrade | |
| System setting | |
| Google Maps | |
| Global time |
Photos:
Sunchip is one of Apple's providers and Tesla.
We are professional manufacturer, designer and solution company that established in 2012, dedicated to the development of embedded motherboards, software and hardware, and finished product manufacturing, as well as digital signage retail solutions.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
1. So far, there are more than 10 years of PCBA design and production experience.
In 2022, we had the 10th Anniversary Celebration.
2. A R&D team with more than 80 people, including hardware engineers (layout boards, debugging, etc.), software engineers (driver, kernel, test and apk engineers), ID design, mechanical design engineers, support OEM/OEM
3. The whole team has about 160 people.
4. One-stop service: product definition, schematic design, PCB layout design,
prototype, production, PCBA SMT, test production, housing design, assembly, software customization, QC control, after-sales etc.
5. Passed ISO9001 factory certification
6. There are more than 3,800 square meters of office and workshop area, which is still expanding.
WELCOME TO INQUIRE US FOR ANY PRODUCTS!
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
