DDR3 Industrial Embedded Motherboard POS Terminals 3G Data Interface

RK3128 Android integrated board adopts Rockchip's RK3128 quad-core chip solution and supports Android 6.0 system. Support the decoding of mainstream audio and video formats and pictures. You can use either the MIPI interface LCD panel, which supports the highest resolution of 1366*768, or the LVDS interface LCD panel, which supports the highest resolution of 1920*1080, and supports 1080P video playback. Abundant interfaces make the product more versatile, and it is widely used in intelligent control fields such as advertising machines, all-in-one machines, security, industrial control, etc. Due to its hardware platformization and Android intelligent features, when human-computer interaction or network device interaction is required, it can be used on an intelligent terminal platform.

Feature:

• High performance. The RK3128 chip uses quad-core Cortex-A7 with a frequency of up to 1.2GHz.
• High stability. The RK3128 Android integrated board adds its own unique technology to the hardware and software to ensure the stability of the product, which can make the final product reach 7*24 hours unattended.
• High integration. The RK3128 Android integrated board integrates functions such as Ethernet, wifi, power amplifier, SD card, etc., which greatly simplifies the design of the whole machine. The ultra-thin motherboard design can make the design of the whole machine more beautiful.
• High scalability. 4 USB ports, can expand more external devices.

Basic software specifications:

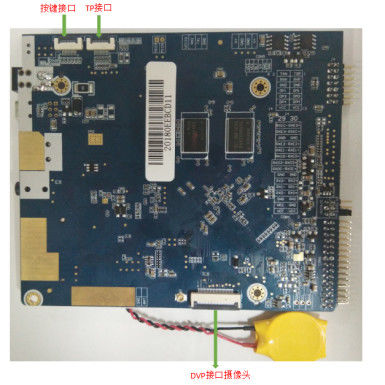

Product images

Sub board

Motherboard installation instructions:

1. Take the board and install and wear the bracelet. If the working environment is dry, the bracelet must wear a wired electrostatic bracelet.

2. When installing and removing the board, you need to pay attention to your fingers should be placed on the edge of the board, and your fingers should not touch the center of the board. The center of the board is an important component and components that are extremely sensitive to ESD, which are easily damaged by ESD static electricity.

3. When installing peripheral pin header type interface devices, you should hold the bottom of the motherboard with your hands before inserting it; do not insert it forcefully, which will easily deform the motherboard and easily damage the BGA packaged components on the motherboard.

4. Before screwing the main board, the main board must be laid flat to ensure that the positioning posts are of the same height, otherwise the main board will be easily deformed, causing the solder balls to crack and damage the components.
