|CPU:||Rockchip||Operating System:||Android 5.1 Above|
|Frequency:||1.8 GHz||Maximum Ram:||64 GB|
|Graphics Card Type:||Integrated||Place Of Origin:||Guangdong, China|
|Ethernet:||10M/100/1000M Ethernet||Mobile Network:||4G LTE FDD/LTE TDD/WCDMA/GSM (optional)|
Android 7.1 Embedded Computer Boards,
1.8GHz Embedded Computer Boards,
Android 7.1 industrial motherboards

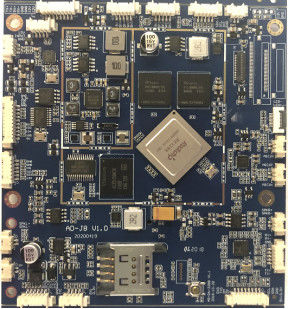

Android 7.1 Embedded Android Boards RJ45 Optical Fiber 4G Module
The large board of the intelligent industrial all-in-one machine adopts the Rockchip RK3288 quad-core chip solution. Support Android5.1 and above systems. Enhanced power management circuit. Support commonly used external devices. Rich interfaces and stable performance. It is suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machine, educational video terminal and so on.
Basic hardware specifications:
|CPU||Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764|
|Main frequency||1.8 GHz|
|RAM||LPDDR3 2G/4G Optional|
|Built-in storage capacity||EMMC 8GB/16G/32G/64G Optional (Label 8GB, support NAND FLASH)|
|Display interface||LVDS interface optional|
|EDP interface optional|
|MIPI interface optional|
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).
Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.
|Network||With RJ45 interface, support 10/100M Ethernet.|
|Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0|
|Real Time Clock||External real-time clock power supply battery|
|Interface device||3 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals)|
|2 sets of serial ports. Support external serial port device modules (NFC modules, printers, card readers, etc.)|
|5 GPIO ports|
|Class D power amplifier: 3W*2 8 ohms|
|Audio||MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP formats|
|Video||Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback|
|Picture||Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function|
|Power Adapter||Input: AC100-240V.50-60HZ, output: DC12V 3A|
Motherboard installation instructions:
1. Take the board and install and wear the bracelet. If the working environment is dry, the bracelet must wear a wired electrostatic bracelet.
2. When installing and removing the board, you need to pay attention to your fingers should be placed on the edge of the board, and your fingers should not touch the center of the board. The center of the board is an important component and components that are extremely sensitive to ESD, which are easily damaged by ESD static electricity.
3. When installing peripheral pin header type interface devices, you should hold the bottom of the motherboard with your hands before inserting it; do not insert it forcefully, which will easily deform the motherboard and easily damage the BGA packaged components on the motherboard.
4. Before screwing the main board, the main board must be laid flat to ensure that the positioning posts are of the same height, otherwise the main board will be easily deformed, causing the solder balls to crack and damage the components.
