Product Details:
Place of Origin: Guangdong, China
Brand Name: SUNCHIP
Certification: CE,FCC,ROHS
Model Number: AD-J8
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: US$50~US$110
Packaging Details: Carton box
Delivery Time: 5~8 days
Payment Terms: L/C, Western Union, MoneyGram, T/T
Supply Ability: 50000 pcs per month

GPIO GPS MIPI RTC Embedded System Board Industrial For Industrial android

Description
CPU: Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764 Operating System: Android 5.1 Above
Operating Temperature: -10°C ~ 60°C RAM: 1GB, 2GB, 4GB Optional
Chipset Manufacturer: Rockchip Application: Digital Signage
Frequency: 1.8 GHz Form Factor: ARM
Graphics Card Type: Integrated Working Humidity: 5% ~ 95%
Warranty: 1 Year
High Light:

RTC Embedded System Board

,

MIPI Embedded System Board

,

MIPI industrial motherboard

GPIO GPS MIPI RTC Embedded System Board Industrial For Industrial Android

Overview:

RK3288 ARM Android Motherboard, With ARM -A17 Quad-core RK3288 CPU, Quad Core 1.80GHz, ARM Mali-T764,Android 5.1 Operation System, Onboard DDR3 2GB Memory,16GB NAND FLASH Storage,HD MI + LVDS Display Output.



Feature:

  • Support Dual LVDS; MIPI; display interface; support 7 inch to 10.1-inch Dual LVDS display interface (point-to-point full HD display 1920*1080).
  • Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.
  • Multiple network interfaces: Ethernet, wireless Wi-fi, Bluetooth.
  • Multi-channel USB interface, serial port, IO port output.
  • Strong resistance to electromagnetic interference and electromagnetic compatibility.



Basic hardware specifications:

CPU Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764
Main frequency 1.8 GHz
RAM LPDDR3 2G/4G Optional
Built-in storage capacity EMMC 8GB/16G/32G/64G Optional (Label 8GB, support NAND FLASH)
Display interface LVDS interface optional
EDP interface optional
MIPI interface optional
Touch screen

Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).

Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.

Network With RJ45 interface, support 10/100M Ethernet.
Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0
Real Time Clock External real-time clock power supply battery
Interface device 3 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals)
2 sets of serial ports. Support external serial port device modules (NFC modules, printers, card readers, etc.)
5 GPIO ports
Class D power amplifier: 3W*2 8 ohms
Dual microphone
Audio MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP formats
Video Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback
Picture Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function
Power Adapter Input: AC100-240V.50-60HZ, output: DC12V 3A

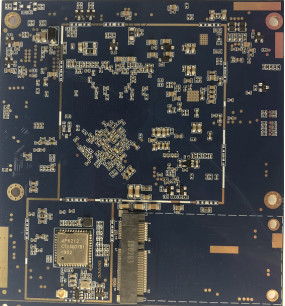

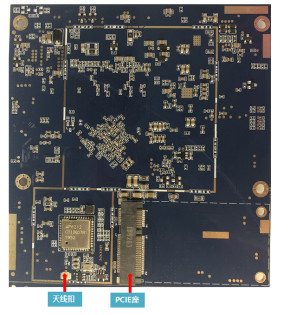

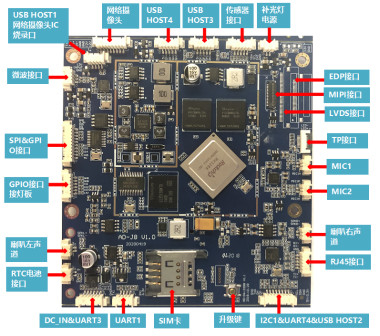

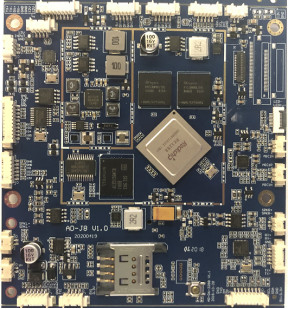

Product images



GPIO GPS MIPI RTC Embedded System Board Industrial For Industrial android 0



GPIO GPS MIPI RTC Embedded System Board Industrial For Industrial android 1

GPIO GPS MIPI RTC Embedded System Board Industrial For Industrial android 2











GPIO GPS MIPI RTC Embedded System Board Industrial For Industrial android 3

GPIO GPS MIPI RTC Embedded System Board Industrial For Industrial android 4





FAQ

1) Q: Is SUNCHIP a factory or simply a trading company?

A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.



2) Q: What payment methods are available to me?

A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.



3) Q: How long is the warranty time?

A: 1 Year.



4) Q: What are the shipment terms and delivery times of your company?

A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.



5) Q: Do you give any discounts ?

A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.



6) Q: I would like to add my company logo on your products, is this possible?

A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.

Different methodes are used for logos, please ask our sales for more information on this issue, we will surely find the right solution for you!
