Product Details:
|
| Product Name: | Open Frame LCD Display | 4G: | YES |
|---|---|---|---|
| Material: | Metal | Resolution: | 1280*800 |
| CTP: | Touch Screen Optional | USB: | YES |
| Installation: | Wall Mounted, Embedded | ||
| High Light: | 10.1 Inch Open Frame LCD Display,ADW Open Frame LCD Display,ADW open frame lcd monitor |
||

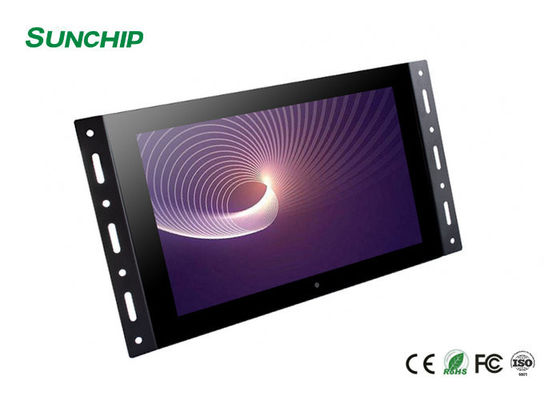

ADW 10.1 Inch Open Frame LCD Display Wall Mounted Support Android Linux
10.1 Inch Ultra Bright Open Frame TFT High Brightness touch Screen LCD Display digital signage support Android Linux
HIGHLIGHTS
a, It also supports 7-inch to 84-inch LVDS interface displays (point-to-point full HD display 1920*1080) and EDP interface display.
b, Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.
c, A variety of network interfaces: Ethernet, 4G, WIFI, Bluetooth.
d, Multi-channel USB interface, serial output.
e, Support 4K video play.
f, Strong anti-electromagnetic interference and electromagnetic compatibility.
Characteristics of Open Frame LCD Monitor:
1. AD board is industrial grade with wide operating temperature from -10℃ to 60℃
2. original Sumsang/LG/BOE etc. lcd panel,at least 50.000 life span
3. Multi-touch available(Resistive/ Capacitive/IR)
4. Any customized service
5. 10.1" LCD panel with resolution 1280 x 800
Perfectly suitable for kiosks, ATM, POS, marline, military, medical, transportation, Avionics, industrial automation, gaming, digital entertainment display and outdoor application.
ALL OF APPLICATION SCENARIOS WHICH CAN BE EMBEDDED.
Details:
| System | CPU | RK3288 quad core Cortex-A17@1.8G GPU Mali T764 | ||||||||||||
| RAM | 2GB/4GB(optional) | |||||||||||||
| Internal memory | 8GB/16GB/32GB(optional) | |||||||||||||
| Operation system | Android 6.0 (Linux optional) | |||||||||||||
| Touch screen | 10 point capacitive touch(optional) | |||||||||||||
| Display | LCD Panel | 10.1" | ||||||||||||
| Resolution | 1280*800 | |||||||||||||
| Contract Ratio | 800:1 | |||||||||||||
| Luminance | 300cd/m2 | |||||||||||||
| Aspect Ratio | 16:10 | |||||||||||||
| Network | WiFi | 802.11b/g/n (2.4G/5G WIFI Optional) | ||||||||||||
| Mobile network | Support full Netcom 4G (optional) | |||||||||||||
| Buletooth | Bluetooth 4.0 | |||||||||||||
| Ethernet | 10M/100M/1000M Ethernet | |||||||||||||
| Interface | Type-C USB | Type-C USB_OTG*1 | ||||||||||||
| DC | DC power 12V input | |||||||||||||
| SD Card reader | Maximum support 128G | |||||||||||||
| Speaker output | Support 8 ohm 2W speaker*2 | |||||||||||||
| Power connector | 6PIN pitch 2.0 built-in power board interface *1 (optional) | |||||||||||||
| GPIO expansion port | 4PIN spacing 2.0 GPIO external expansion port *1 (optional) | |||||||||||||
| RS232 interface | 4PIN spacing 2.0 RS232 or UART external expansion port *1 (optional) | |||||||||||||
| UART interface | 4PIN spacing 2.0 UART external expansion port *1 (optional) | |||||||||||||
| MIC interface | 2PIN spacing 2.0 MIC external expansion port *1 (optional) | |||||||||||||
| Infrared remote control; | Support built-in infrared remote control (optional) | |||||||||||||
| Infrared remote control and LED light | support 6PIN spacing 2.0 external expansion port (optional) | |||||||||||||
| USB expansion port | 4PIN spacing 2.0 supports USB host external expansion port *3 (optional) | |||||||||||||
Sunchip was established in 2012, has more than 3200 square meters of factory and office.
Has large R&D ability, and we got so many CE, FCC and ROHS certificates on a lot of products, and already passed ISO international quality system certification I S O 9 0 0 1/ MFi.
We have many branded customers from overseas, such as Amazon, TTK, Beck, Apple, SONY, Rockchip, ......
Main products include Android Embedded Board, Android Media Player BOX, Stretched LCD Display, Open Frame LCD Display and other types of Digital Signage.
Welcome to contact us!
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
