Micro Embedded android Boards RK3128 Quad Core A7 1080P Long Service Life

HD MIPI Out Embedded System Boards , RK3128 Quad Core A7 1080P Micro android Boards for industrial commercial digital

RK3128 Android decoder drives all in one
Model:AD-K10

PARAMETERS

CPU: Rockchip RK3128 quad core Cortex-A7 quad core GPU Mali-400MP2

Frequency:1.2 GHz

RAM:DDR3 1G/2G Optional

Display interface:MIPI-DSI interface. Support the maximum resolution 1280*720

Interface equipment: Support DVP interface camera,3 USB HOST,1 USB OTG,SD card,Maximum support 32GB,D class Built-in speaker,2W* 2 8R

Touch screen: Provide I2C interface (can support multi-point resistance touch, multi-point capacitance touch)

Internet: With RJ45 interface,support10/100M Ethernet,

With wifi module, support for Wi-Fi 802.11b / g / n protocol

Operating system: Google Android 6.0

Image rotation: Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support for gravity sensing.


RK3128 Android all in one board, using Rockchip RK3128 quad-core chip program to support Google Android6.0 system. Support the mainstream audio and video formats and image decoding. Can support the highest resolution 1280 * 720, using a single MIPI interface LCD panel. With HDMI interface, support 1080P video playback. Rich interface, make the product more common, is widely used in advertising, one machine, security, industrial control and other intelligent control. Because of its hardware platform, Android intelligent features, in the need for human-computer interaction, network equipment, interactive, intelligent terminal platform can be used.


Features:

• High performance. RK3128 chip with quad-core Cortex-A7, up to 1.2GHz frequency.
• High stability. RK3128 Andrews one board, in hardware, software, increase their own unique technology to ensure product stability, you can make the final product to 7 * 24 hours unattended.
• High scalability 3 USB ports, can expand more external devices.
• High level of integration RK3128 Andrews integrated board integrated Ethernet, wifi, amplifier, SD card, and so on, greatly simplifying the machine design. Slim-style motherboard design allows the machine design more beautiful.


Basic Hardware Specifications:





Basic Software Specifications:

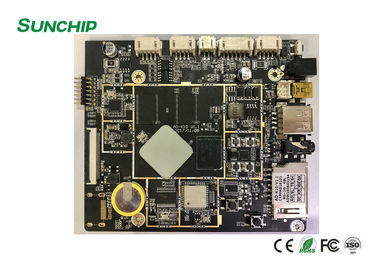

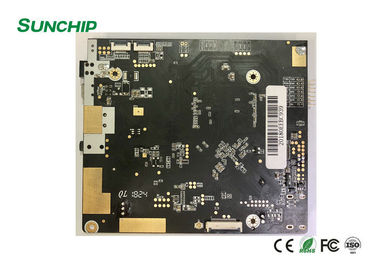

Board Photos:
