Product Details:
|
| LCD Panel: | 49'' | Resolution: | 1920*1080 |
|---|---|---|---|
| Mobile Network: | 4G Optional | Touch: | Optional |
| Contrast Ratio: | 1300:1 | Screen Brightness: | 450 Cd/m2 |
| Screen Proportion: | 16:9 | CPU: | RK3288 |
| RAM: | 2/4GB | Operation System: | Android 7.1/9.0 |
| ROM: | 16/32/64GB | ||
| High Light: | commercial digital signage displays,vertical digital signage display |
||
49'' 55'' LCD Advertising Display Digital Signage Totem LCD interactive touch screen from SUNCHIP
Model NO.: AD-49''-RK3288
Support Contents Management Software (CMS)
CMS is one of the most popular digital signage online management software which allows people quickly and easily to manage centrally controlled network of LCD advertising screens. And CMS can be hosted on On-Premise and Cloud Sever running 24/7 no maintenance hassle.
All of our digital signage products including wall mounted advertising displays, floor standing digital signage kiosks, digital signage media players., etc can be remotely online managed via CMS system. CMS supports remote control, screen layouts edit, playlist scheduling, multi-accounts management, versatile media format including image, video, audio, scrolling message, web page, streaming and live tv feeds., etc. We have numerous of clients from all over the world who are using our CMS system, And, now thousands of digital signage players /advertising displays / digital signage totems are working with our CMS software globally.
| Features | ||
| 1. Application fields:public places ,for example,shopping mall, restaurant,airport, square, commercial buidings,etc. | ||
| 2. Outer shell is made of extra good quality metal material and tempered glass. | ||
| 3. Support split screen, user can split screens freely by software. | ||
| 4. Videos switch with no pause. ( seamless switching ) | ||
| 5. With 8GB internal memory, updating contents automatically by USB. | ||
| 6. Rotating vidoes automatically. | ||
| 7. Adopts high transparent tempered glass (2-6 mm ) as protection layer toprevent screen from being broken or distorted. | ||
| 8. Support IR Remote controller, user can use remote controller to operate the whole device. | ||
| 9. Build-in high quality stereo speakers. Amplifier / 3.5mm audio jack is optional. | ||
| 10.Playing circles automatically when powers on . | ||
| 11..Allowing memory of breakpoint/AD management system. |
Specifications:
| Model No.: AD-49''-RK3288 | RK3288 Quad-core Android all-in-one advertising machine(49'' floor standing ) | |||||
| Hardware Spec | ||||||
| System | CPU&GPU | RK3288 quad-core Cortex-A17@1.8G GPU Mali T764 | ||||
| RAM | 2GB/4GB (optional) | |||||
| Memory | 8GB/16GB/32GB(optional) | |||||
| Operating system | Android 5.1/ 6.0 | |||||
| Interactive mode | Infrared touch | Optional | ||||
| Ten-points capacitive touch | ||||||
| No-touch/infrared remote control | ||||||
| Display | LCD Screen | 49'' | ||||
| Resolution | 1920*1080 | |||||
| Contrast Ratio | 1300:1 | |||||
| Screen brightness | 450 cd/m2 | |||||
| Screen proportion | 16:9 | |||||
| Network | WiFi | 802.11 b/g/n_2.4G ( support 5G optional) | ||||
| Mobile network | Support 4G(optional) | |||||
| Bluetooth | Bluetooth 4.0 | |||||
| Ethernet | 10M/100M/1000M Ethernet | |||||
| Interface | ||||||
| Interface | USB interface*2 | Support USB host*2 | ||||
| USB_OTG | USB_OTG*1 | |||||
| AC | AC 100V-240V (50HZ-60HZ) | |||||
| TF card | Maximum support 128GB | |||||
| RJ45 | 10/100/1000M Ethernet port | |||||
| Headset | 3.5mm stereo headphone output | |||||
| Speaker output | Support 8 ohm 3W speaker dual channel output interface | |||||
| Buttons/Keys | Buttons/Keys | defaulted none | ||||
| Media Parameter | ||||||
| Media Playback | Video format | MPEG-1,MPEG-2,MPEG-4,H.264,H.265,VC1,VP8,4K VP9,4K 10bits H265/H264,HDR10,HLG HDR,Maximum support 3840x2160 | ||||
| Audio format | MP3,WMA,WAV, APE, FLAC, OGG,M4A,3GPP format | |||||
| Text processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT | |||||
| Ebook | PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 | |||||
| Image Format | JPG,BMP,PNG | |||||
| System Management | ||||||
| System Management | APK install | APK installer | ||||
| Root permission | Original Android system, open root permissions, product customization development | |||||
| Remote control | Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended | |||||
| OTA upgrade | Support OTA remote upgrade | |||||
| Accessories | ||||||
| Accessories | User's Guide | Standard | ||||
| Warranty Card | Standard | |||||
| Size(unit:mm) | ||||||
| Product size(L*W*H) | 718*459.38*1873.82 | |||||
| colour box size(L*W*H) | ||||||
| Carton size(PCS/CTN)(L*W*H) | ||||||
| Others Parameters | ||||||
| Camera | the front camera 200W/500W(Optional) | |||||
| Recording | Support high-quality recording function (optional) | |||||
| OSD Language | Multi-language OSD Operation | |||||
PACKAGING DETAILS
1, Packaging: film, foam and wooden case (international standard packaging), suitable for export.
2, Lead time: in 1 week for sample order, about 5 weeks for large order.
Our Services:
1) Original guarantee; 2) Competitive prices;
3) Offer 12 months of warranty; 4) Stable supply at least 3-5years;
5) Any question will be reply in 24 hours
SUNCHIP: Digital Signage manufacturer in Shenzhen, China.

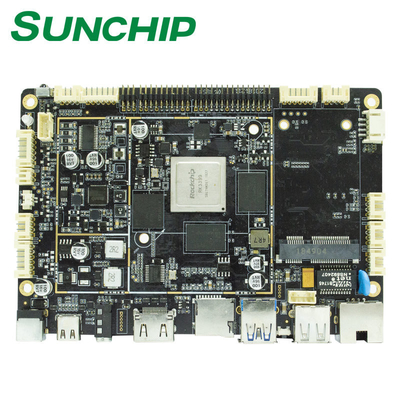

Our main products include Android ARM Board, Floor Standing Display, Wall Mounted Display, Stretched LCD Display, Open Frame Display and Android Media Player Advertising Box.
LOOKING FORWARD TO YOUR INQUIRY AND KIND COOPERATIONS!
WELCOME TO INQUIRE ME~
