Product Details:
|
| LCD Screen: | 13.3'' | Operating System: | Android 7.1.2 (optional) |
|---|---|---|---|
| CPU&GPU: | RK3399 Six-core | 4G LTE: | Support 4G(optional) |
| RAM: | 4GB(optional) | ROM: | 16GB/32GB(optional) |
| WiFi: | 802.11b/g/n （2.4G/5G Optional） | Network: | 10M/100M/1000M Ethernet; |
| Bluetooth: | Bluetooth 4.0 | ||
| High Light: | open frame lcd screen,open frame lcd panel |
||

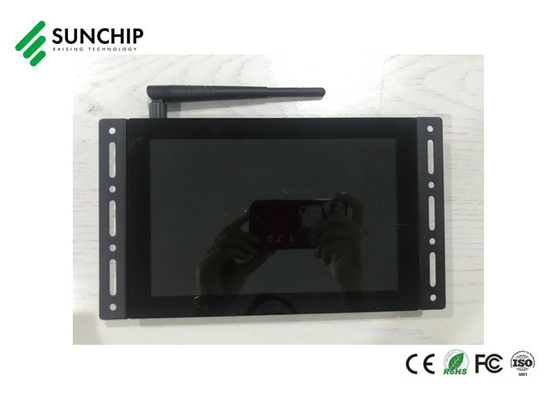

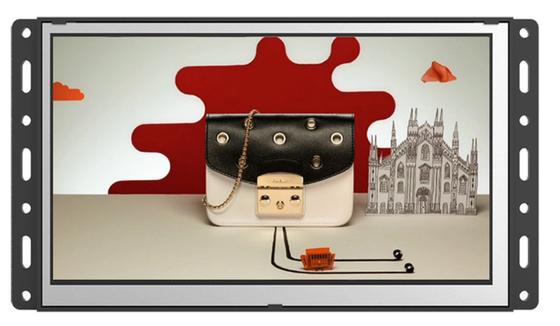

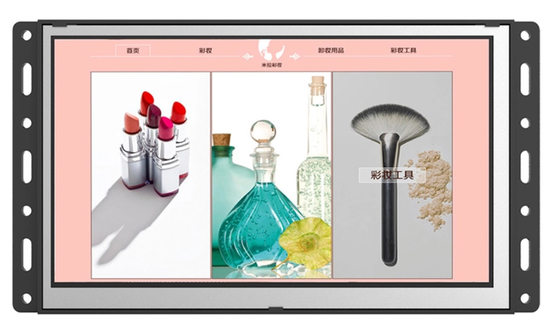

13.3 inch Open Frame Lcd TFT WIFI 4G Digital Signage Advertising Display Monitor touch Screen
Over View:
Intelligent industrial all in one board, using Rockchip RK3399 six-core chip program, support Google Android7.0 or higher system. Powerful computing power. Support H.265 4K video playback. Rich interface and enhanced power management circuit. Suitable for intelligent remote network control: industrial, medical, large advertising, educational video terminals and other equipment.
HIGHLIGHTS
a, It also supports 7-inch to 84-inch LVDS interface displays (point-to-point full HD display 1920*1080) and EDP interface display.
b, Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.
c, A variety of network interfaces: Ethernet, 4G, WIFI, Bluetooth.
d, Multi-channel USB interface, serial output.
e, Support 4K video play
f, Strong anti-electromagnetic interference and electromagnetic compatibility.
Key features:
13.3 inch Wall Frameless LCD Panel Open Frame LCD Monitor
PRODUCT SPECIFICATIONS:
|
Model No.: AD-13.3''-RK3399 |
RK3399 Six-Core Android 7.1.2. (Linux OS optional) -Open Frame Series |
|||||
Basic Hardware Specifications:
| CPU | Rockchip RK3399 daul core Cortex-A72+quad-core Cortex-A53 CPU |
| GPU | ARM Mali-T860MP4 GPU |
| RAM | DDR3 2G/4G Optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G Optional(Label 8GB) |
| Display interface | LVDS interface (single, 6 dual, 8 dual). Support the maximum resolution of 1920x1080, support 7 "-84" display |
| EDP screen interface, support for resolution 1920x1080 | |
| Onboard backlight | Support 3.3V/5V/12V Optional |
| Touch screen |
Provide I2C interface (can support multi-point resistance touch, multi-point capacitance touch). Support USB multi-point infrared touch, multi-point acoustic touch, multi-point optical touch. |
| Internet | With RJ45 interface, support for 10/100 Ethernet |
| With Wifi & BT module, support for Wi-Fi 802.11b / g / n / ac protocol. Support BT4.0 | |
| Image rotation | Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support for gravity sensing |
| Real Time Clock | Built-in real-time clock battery |
| Interface equipment | Support MIPI interface camera, up to 500W pixels |
| Support USB camera | |
| 4 USB HOST, 1 USB OTG (support POE power supply) | |
| 3 groups of serial port. Supports external serial device devices (3G module, NFC module, printer, swipe card reader, etc.) | |
| 3 IO test port | |
| SD card, maximum support 64GB | |
| Class D amplifier: 1.5W * 2 8 ohm, support for the microphone | |
| 2.0 output | |
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format |
| Video | Support for 2160P @ 24FPS decoding of video formats such as H.264, MPEG2, VP6, VP8, MVC, etc. Online videos from YouTube, up to 1080P, HTML5 video playback, Flash 10.1 playing. |
| Picture | Support for JPG, BMP, PNG and other image formats Browse and support rotation / slide show / image zoom function |
| Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V 3A |
Basic Software Specifications:
| Operating system | Google Android 7.0 |
| Basic software features | Web browsing, web chat, e-mail, e-books, resource managers |
| Sound mode | Clock, alarm clock, calculator, recording |
| Voice support | Multi-national voice |
| Recording | Support MP3, WMA format recording |
| Tool | Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather + clock | |
| Recording | |
| File processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input method | Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
| Internet | Browser -ChromeLite |
| Gmail | |
| System Management | APK Installer |
| Original Android system, open root privileges, product development can be customized | |
| Real-time remote monitoring, system crash self-recovery, 7 * 24 hours unattended | |
| Support OTA remote upgrade | |
| System setting | |
| Google Maps | |
| Global time |

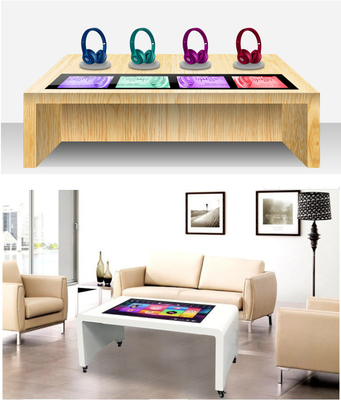

PRODUCT SCENARIOS
PACKAGING DETAILS
Carton *1
Wooden case *1 (if necessary)
OFFICE AND FACTORY
SUNCHIP: Digital Signage manufacturer in Shenzhen, China.
Our main products include Android ARM Board, Floor Standing Display, Wall Mounted Display, Stretched LCD Display, Open Frame Display and Android Media Player Advertising Box.
LOOKING FORWARD TO YOUR INQUIRY AND KIND COOPERATIONS!
WELCOME TO INQUIRE ME~
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
