IPS Full HD 1080P Open Frame LCD Display Capacitive Multi Touch Optional

IPS Full HD 1080P Open Frame LCD Display Capacitive Multi Touch Optional
IPS Full HD 1080P Open Frame LCD Display Capacitive Multi Touch Optional
IPS Full HD 1080P Open Frame LCD Display Capacitive Multi Touch Optional IPS Full HD 1080P Open Frame LCD Display Capacitive Multi Touch Optional IPS Full HD 1080P Open Frame LCD Display Capacitive Multi Touch Optional IPS Full HD 1080P Open Frame LCD Display Capacitive Multi Touch Optional IPS Full HD 1080P Open Frame LCD Display Capacitive Multi Touch Optional IPS Full HD 1080P Open Frame LCD Display Capacitive Multi Touch Optional

Large Image :  IPS Full HD 1080P Open Frame LCD Display Capacitive Multi Touch Optional

Product Details:
Place of Origin: SHENZHEN, CHINA
Brand Name: ADW
Certification: ISO9001, CE, ROHS, FCC
Model Number: AD-8ʺ-RKPX30
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton / Wooden case
Delivery Time: About 25-30 days for mass-production
Payment Terms: T/T
Supply Ability: 10000 PCS per Month

IPS Full HD 1080P Open Frame LCD Display Capacitive Multi Touch Optional

Description
CPU&GPU: Rockchip PX30 Quad-core Cortex-A35 Mali-G31 MP2 GPU Panel: 8" Touch Panel Optional
Display Interface: LVDS Or MIPI Interface Image Rotation: Support For Gravity Sensing
RAM: DDR3 1G/2G Optional ROM: EMMC 8GB/16G/32G/64G Optional (default: 8GB)
Product Type: Android Retail Tablets WiFi / Bluetooth: 802.11 B/g/n_2.4G / BT 4.0
LAN: 10M/100M Ethernet;
High Light:

open frame lcd screen

,

open frame lcd monitor





open frame 8 inch capacitive multi touch IPS lcd display full hd 1080p lcd digital signage monitor from SUNCHIP





Open Frame LCD Display & Open Frame Digital Signage from SUNCHIP





Feature:



1. Support Dual LVDS; MIPI; display interface; support 7 inch to 10.1 inch Dual LVDS display interface (point-to-point full HD display 1920*1080).



2. Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.



3. Multiple network interfaces: Ethernet, wireless Wi-fi, Bluetooth.



4. Multi-channel USB interface, serial port, IO port output.



5. Strong resistance to electromagnetic interference and electromagnetic compatibility.







Key features:



8 inch Wall Frameless LCD Panel Open Frame LCD Monitor



  1. Good design, slim, elegant and fashion.
  2. Aluminum bezel, wiredrawing treatment.
  3. Cover-lens for protection
  4. Standard VESA holes and console holes for wall mounting.
  5. Support SD card, USB memory.
  6. Network version support internet and 4G net, can be group managed via net.
  7. Support all video, audio and picture formats.
  8. Optional touchscreen.



Summary:



Android integrated board, using Rockchip PX30 quad-core chip solution, support Android 8.0 system. Supports the decoding of the popular audio & video formats and images. The multi interface makes the product in common use and is widely used in intelligent control fields such as advertising machines, all-in-one PC, security, industrial and so on.





PRODUCT SPECIFICATIONS



Basic Hardware Specifications:



CPU Rockchip PX30 Quad-core Cortex-A35 Mali-G31 MP2 GPU
Frequency 1.5GHz
RAM DDR3 1G/2G optional
ROM EMMC 8GB/16G/32G/64G optional (default: 8GB)
Display interface LVDS optional
MIPI optional
Touch Screen Support USB IR multi touch, sonic multi touch, optical multi touch
Network RJ45 interface, ethernet 10/100M

WIFI& BT: support Wi-Fi 802.11b/g/n/, and support BT4.0 support

(optional WIFI 802.11 a/b/g/n/ac 5G&2.4G)

RTC Built in internal battery for Real time clock
Interfaces Support USB camera
3*USB HOST,1*USB OTG
3*Serial ports, support external devices (NFC module, printer, card reader etc.)
Support MIPI camera, max 8MP
D classamplifier,5W*2 8R
Support microphone *1
Audio MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP format
Video Support H.264, MPEG2, VP6, VP8, MVC, 2160P@24FPS decoding. on-line video such as YouTube, max support 4K,HTML5 playback,Flash10.1 playback
Images Support JPG,BMP,PNG etc. picture formats, browse, orientation, slides, magnify
Power supply Input:AC100-240V.50-60HZ, output: DC12V-3A





Basic Software Specifications:



OS Google Android 8.1
Basic software functions Web browsing, web chat, e-mail, e-books, and resource managers
Sound mode Clock, alarm clock, calculator, recording
Language Multi language
Recording Support MP3, WMA, 3gpp, Amr, etc., the system comes with an Amr format
Tools Calendar
Alarm Clock
Calculator
Note
Weather Clock
Recording
Document EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
E-book PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule Calendar
Input methods Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)
Internet Browser -Chrome Lite
Email
Gmail
System Management APK Installer
Original eco-Android system, open root privileges, can be customized product development
Real-time remote monitoring, system crash recovery automatically, 7 * 24 hours unattended
Support OTA remote upgrade
System setting
Google Maps
Global time





Hardware Photos:

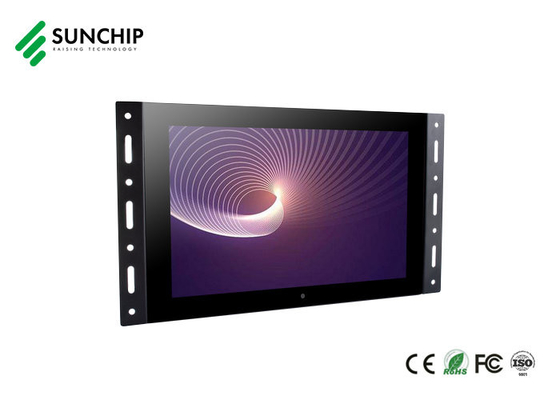

IPS Full HD 1080P Open Frame LCD Display Capacitive Multi Touch Optional 0

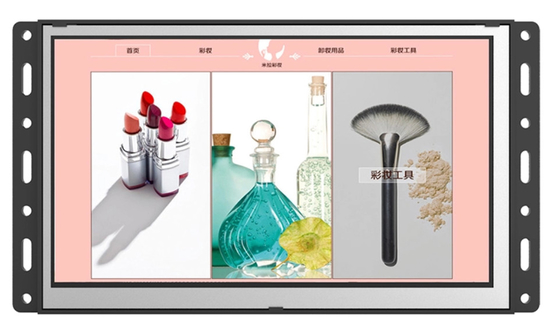

IPS Full HD 1080P Open Frame LCD Display Capacitive Multi Touch Optional 1

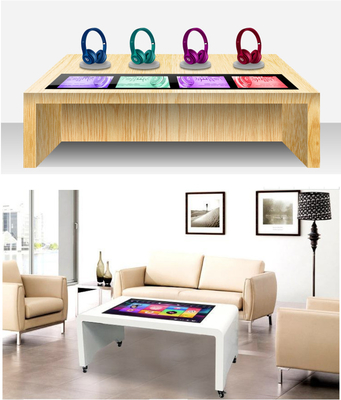

PRODUCT SCENARIOS









IPS Full HD 1080P Open Frame LCD Display Capacitive Multi Touch Optional 2







OFFICE AND FACTORY





SUNCHIP: Digital Signage manufacturer in Shenzhen, China.



Our main products include Android ARM Board, Floor Standing Display, Wall Mounted Display, Stretched LCD Display, Open Frame Display and Android Media Player Advertising  Box.



LOOKING FORWARD TO YOUR INQUIRY AND KIND COOPERATIONS!

WELCOME TO INQUIRE ME~





SUNCHIP mainly manufactures:

1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,

RK3328, RKPX30, RK3188, RK3128 etc.

2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.

3, 【8K】Android Player Box for Industrial-Control Application: RK3588.

4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.

5, SKD Kit: Android board + LCD panel with touch or not:

7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.

6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.

7, Embedded touch desk: such as 32inch.

8, Face recognition temperature detection terminal machine: such as 8inch.

[You can also tell us your detailed requirements, so that we advise you a matched solution]
