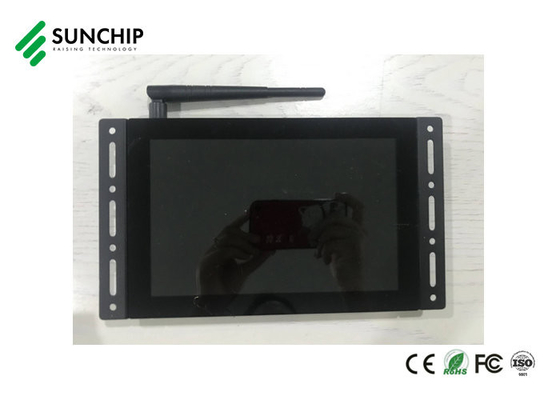

Large Image :  Touch Screen Open Frame LCD Display , Sunlight Readable LCD Monitor

Product Details:
Place of Origin: SHENZHEN, CHINA
Brand Name: ADW
Certification: ISO9001, CE, ROHS, FCC
Model Number: AD-8ʺ-RK3288
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton / Wooden case
Delivery Time: About 25-30 days for mass-production
Payment Terms: T/T
Supply Ability: 10000 PCS per Month

Touch Screen Open Frame LCD Display , Sunlight Readable LCD Monitor

Description
CPU&GPU: Rockchip RK3288 Panel: 8" Touch Panel Optional
RAM: DDR3 2G/4G Optional ROM: 8GB/16G/32GOptional
Product Type: Android Retail Tablets Display Interface: LVDS Interface
WiFi / Bluetooth: 802.11 B/g/n_2.4G / BT 4.0 LAN: 10M/100M Ethernet;
Image Rotation: Support Manual / Automatic Rotation, Support For Gravity Sensing
High Light:

open frame lcd screen

,

open frame lcd panel





8 inch TFT LCD touch screen Open Frame lcd display sunlight readable digital signage monitor from Sunchip



Open Frame LCD Display & Open Frame Digital Signage from SUNCHIP







Summary:



Smart industry all in one board, using Rockchip RK3288 quad-core chip program, support Google Android4.4 and 5.1 above system. Powerful computing power. Support H.265 4K video playback. Interface rich, enhanced power management circuit. Applicable to intelligent remote network control: class industry, medical, large advertising machine, educational video terminal and other equipment.





Feature:



1. support 7-inch to 84-inch various types of LVDS interface display (point-to-point full HD display 1920 * 1080).



2. Multi Interaction modes: Capacitive Touch, IR Touch, IR remote, USB keyboard/mouse, Multi-touch



3. Multi network interfaces: Ethernet, Wireless WIFI, BT



4. Multi interfaces: USB, serial ports, IO interface output



5. Strong resistance to electromagnetic interference and electromagnetic compatibility.







Key features:



8 inch Wall Frameless LCD Panel Open Frame LCD Monitor



  1. Good design, slim, elegant and fashion.
  2. Aluminum bezel, wiredrawing treatment.
  3. Cover-lens for protection
  4. Standard VESA holes and console holes for wall mounting.
  5. Support SD card, USB memory.
  6. Network version support internet and 4G net, can be group managed via net.
  7. Support all video, audio and picture formats.
  8. Optional touchscreen.





PRODUCT SPECIFICATIONS



Basic Hardware Specifications:



CPU Rockchip RK3288 quad-core Cortex-A17 quad-core GPU Mali-T764
Frequency 2.2 GHz
RAM DDR3 2G/4G Optional
Built-in storage capacity NAND FLASH 8GB/16G/32GOptional(standard 8GB,support NAND FLASH))
Display interface LVDS interface (single, 6-way, 8-bit dual). Support maximum resolution 1920x1080, support 7 "-84" display

Mainboard backlight Support 3.3V/5V/12V Optional
Touch screen

Provides I2C interface (can support multi-point resistance touch, multi-point capacitive touch).

Support USB multi-point infrared touch, multi-point sound wave touch, multi-point optical touch.

Network With RJ45 interface, support 10/100 Ethernet.
With Wifi & BT module, support Wi-Fi 802.11b / g / n / ac protocol. Support BT4.0
Image rotation Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function
Real Time Clock Built-in real-time clock powered battery
Interface device Support DVP interface camera, the maximum support 500W pixels
Support USB camera

3 USB HOST,1 USB OTG
Serial ports x 3. Support external serial device module (3G module, NFC module, printer, card reader, etc.)
3 IO detection ports
SD card, maximum support 32GB
Class D power amplifier: 1.5W * 2 8 Europe, support for the microphone
Audio MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP
Video Support 2160P @ 24FPS decoding such as H.264, MPEG2, VP6, VP8, MVC and other video formats. YouTube and other online video, up to 1080P, HTML5 video playback, Flash10.1 play
Picture Support JPG, BMP, PNG and other picture formats to browse and support the rotation / slide show / picture zoom
Power Adapter Input:AC100-240V.50-60HZ, Ouput: DC12V 3A





Basic Software Specifications:



Operating system Google Android 4.4
Basic software functions Web browsing, web chat, e-mail, e-books, and resource managers
Sound mode Clock, alarm clock, calculator, recording
Language support Multi-lingual
Recording Support MP3, WMA format recording
Tool Calendar
Alarm Clock
Calculator
Note
Weather + clock
Recording
Document processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
Ebook PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule Calendar
Input Standard Andriod keyboard, optional third party input method (Chinese, Korean, Japanese, etc.)
Internet Browser -ChromeLite
GOOGLE Market
Email
Gmail
Google talk
System Management APK Installer
Original eco-Android system, open root privileges, can be customized product development
Real-time remote monitoring, system crash since recovery, 7 * 24 hours unattended
System setting
Google Maps
Global time
Support OTA remote upgrade







PRODUCT SCENARIOS

Touch Screen Open Frame LCD Display , Sunlight Readable LCD Monitor 0

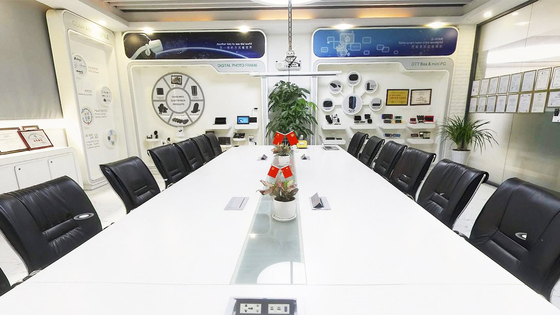

OFFICE AND FACTORY
