Product Details:
|
| Panel: | 8" (touch Optional) | Display Interface: | MIPI-DSI Interface |
|---|---|---|---|
| RAM: | DDR3 1G/2G Optional | ROM: | EMMC 8GB/16GOptional（label 8GB） |
| CPU&GPU: | Rockchip RK3128 Quad Core Cortex-A7 | Image Rotation: | Support Manual / Automatic Rotation, Support For Gravity Sensing |
| Operating System: | Android 6.0 | WiFi / Bluetooth/LAN: | 802.11 B/g/n_2.4G / BT 4.0 /10M/100M Ethernet; |
| High Light: | open frame lcd monitor,open frame lcd panel |
||

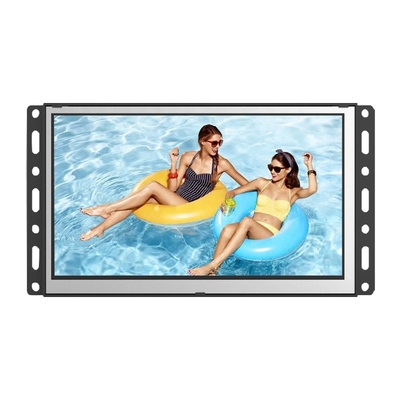

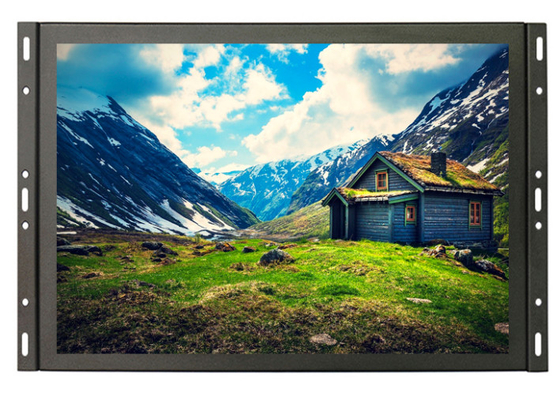

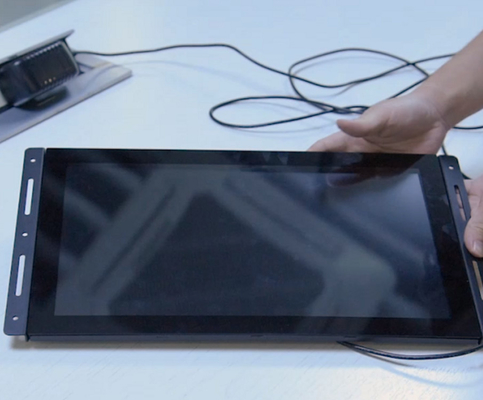

SUNCHIP Open Frame Metal Monitor Square LCD Display touch Screen 8 inch 800*1280 Open Frame LCD Monitor for advertising
Open Frame LCD Display & Open Frame Digital Signage from SUNCHIP
Overview:
RK3128 Android all in one board, using Rockchip RK3128 quad-core chip program to support Google Android6.0 system. Support the mainstream audio and video formats and image decoding. Can support the highest resolution 1280 * 720, using a single MIPI interface LCD panel. Support 1080P video playback. Rich interface, make the product more common, is widely used in advertising, one machine, security, industrial control and other intelligent control. Because of its hardware platform, Android intelligent features, in the need for interaction, network equipment, interactive, intelligent terminal platform can be used.
Characteristic
1, High performance. RK3128 chip with quad-core Cortex-A7, up to 1.2GHz frequency.
2, High stability. RK3128 Andrews one board, in hardware, software, increase their own unique technology to ensure product stability, you can make the final product to 7 * 24 hours unattended.
3, High level of integration RK3128 Andrews integrated board integrated Ethernet, wifi, amplifier, SD card, and so on, greatly simplifying the machine design. Slim-style motherboard design allows the machine design more beautiful.
4, High scalability 3 USB ports, can expand more external devices.
Key features:
8 inch Wall Frameless LCD Panel Open Frame LCD Monitor
PRODUCT SPECIFICATIONS
Basic Hardware Specifications:
| CPU | Rockchip RK3128 quad core Cortex-A7 quad core GPU Mali-400MP2 |
| Frequency | 1.2 GHz |
| RAM | DDR3 1G/2G Optional |
| Built-in storage capacity | EMMC 8GB/16GOptional(label 8GB) |
| Display interface | MIPI-DSI interface. Support the maximum resolution1280*720 |
| Touch screen | Provide I2C interface (can support multi-point resistance touch, multi-point capacitance touch) |
| Internet | With RJ45 interface,support10/100M Ethernet |
| With WIFI module, support for Wi-Fi 802.11b / g / n protocol | |
| Image rotation | Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support for gravity sensing |
| Real Time Clock | Built-in real-time clock battery |
| Interface equipment | Support DVP interface camera |
| 3个USB HOST,1个USB OTG | |
| SD card,Maximum support 32GB | |
| D class Built-in speaker,2W* 2 8R | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP format |
|
Video
|
Multi-format 1080P 60fps video decoding (H.265, H.264, VC-1, MPEG-1/2/4, VP8). YouTube and other online video, up to 1080P, HTML5 video playback, Flash10.1 play |
| Picture | Support for JPG, BMP, PNG and other image formats Browse and support rotation / slide show / image zoom function |
| Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V/2A |
Basic Software Specifications:
| Operating system | Google Android 6.0 |
| Basic software features | Web browsing, web chat, e-mail, e-books, resource managers |
| Sound mode | Clock, alarm clock, calculator, recording |
| Voice support | multiple languages |
| Record | Support MP3, WMA format recording |
| Tool | Calendar |
| Alarm Clock | |
| Note | |
| Weather + clock | |
| Record | |
| Document processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| schedule | calendar |
| Input | Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
| Internet | Browser -Chrome Lite |
| GOOGLE Market | |
| Gmail | |
| Google talk | |
| System Management | APK Installer |
| Original Android system, open root privileges, product development can be customized | |
| Real-time remote monitoring, system crash self-recovery, 7 * 24 hours unattended | |
| System setting | |
| Google Maps | |
| Global time |
